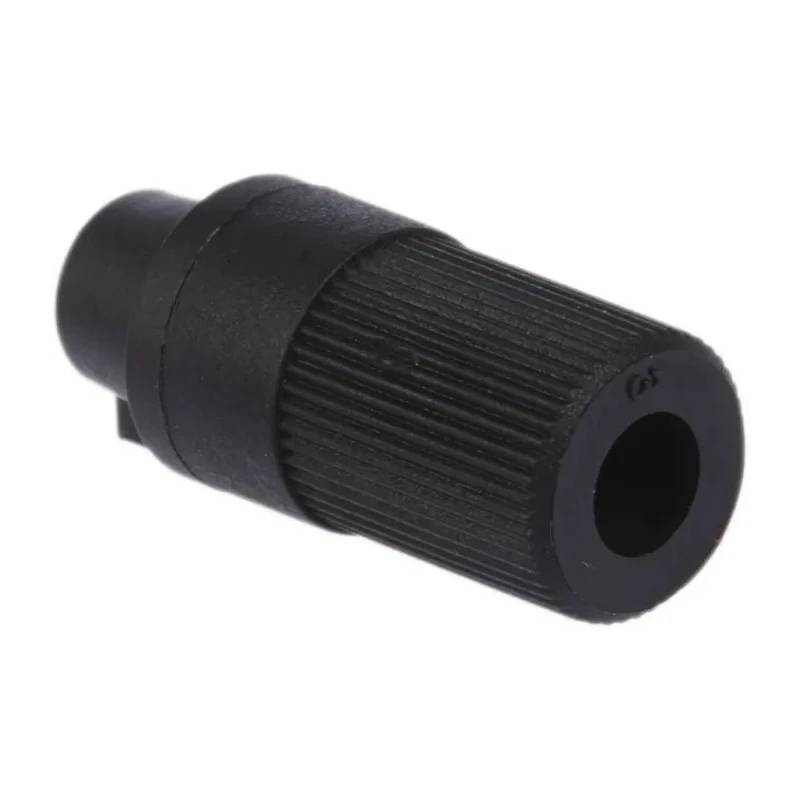

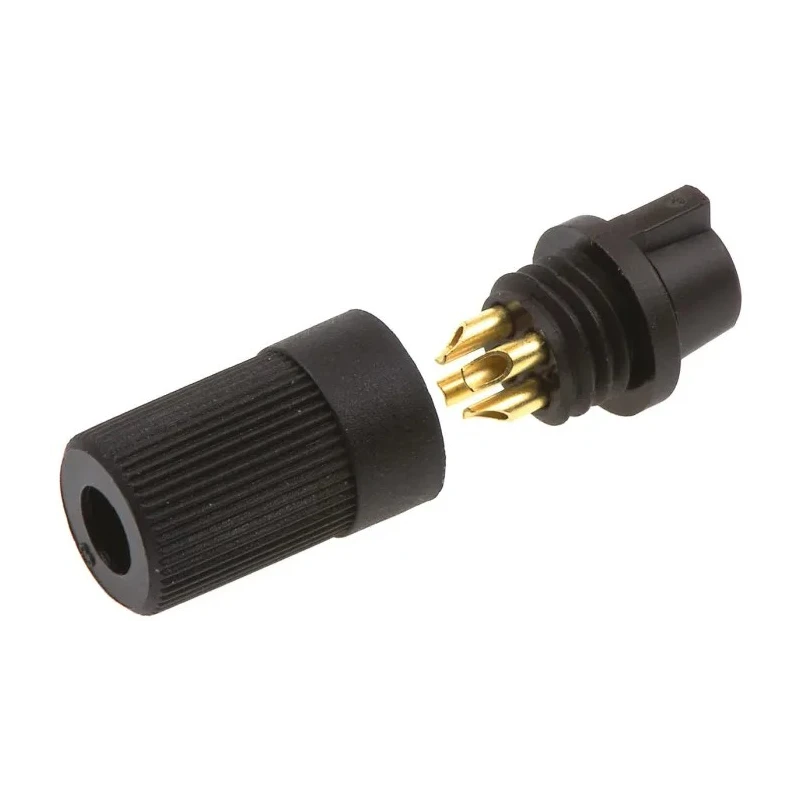

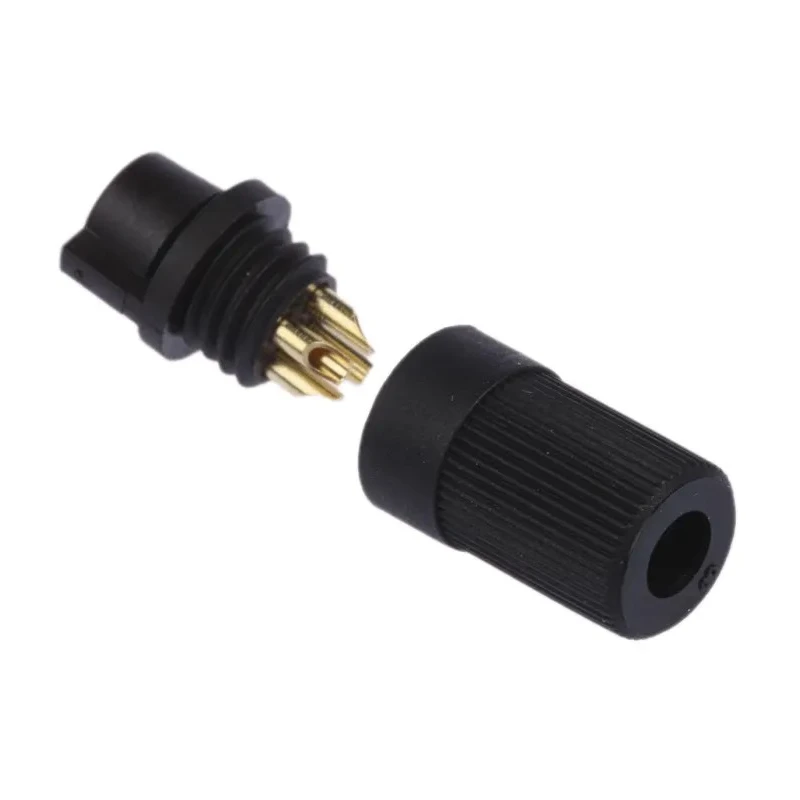

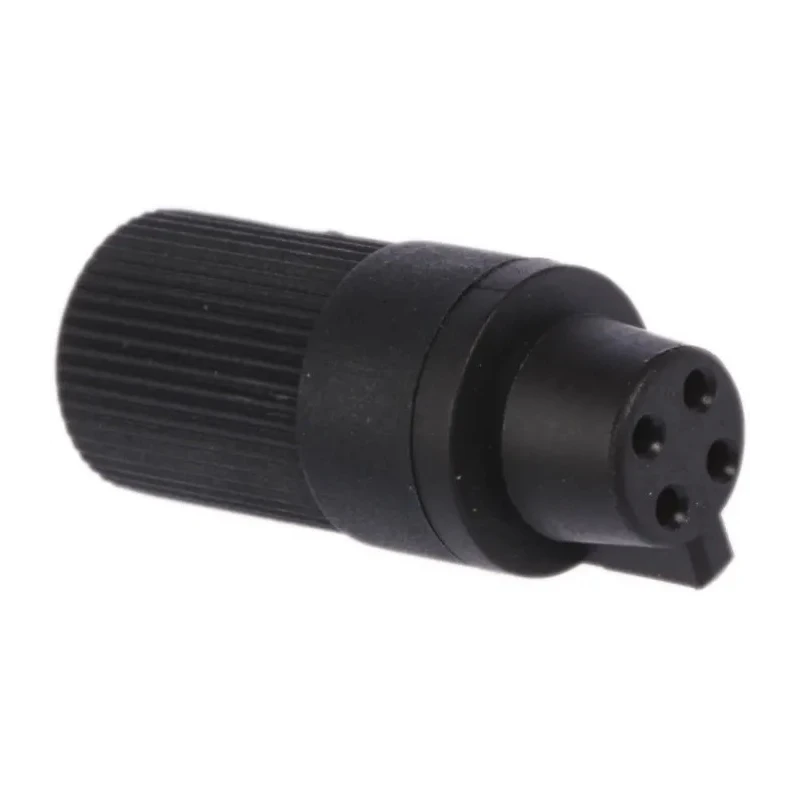

binder 4-Contact Circular Connector Socket, 3A, Subminiature, 60V, Female, IP40, Cable Mount, Solder, 8mm 09-9764-00-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 8 mm |
| Mating Type | Threaded |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- 4-contact female circular connector socket for industrial and instrumentation use.
- Compact subminiature size fits space-constrained electronic assemblies.
- Durable polyamide housing with gold-plated bronze contacts for long service life.
- Rated for 3A current and 60V voltage, supporting reliable low voltage connections.
- Cable mount configuration with solder termination for easy installation.
- Straight orientation and threaded coupling provide secure, vibration-resistant mating.
- IP40 ingress protection for protected indoor environments.
- Operates across a wide temperature range from -25°C to 70°C.
Product Description
The binder 09-9764-00-04 is a high-quality circular connector socket engineered for demanding industrial and electronic applications. Combining a compact subminiature body with reliable gold-plated bronze contacts and a polyamide housing, this 4-contact female connector offers robust connectivity for signal or low-voltage power transmission.
This connector supports up to 3A of current at 60V and is suited for indoor environments meeting the IP40 rating, meaning it offers basic protection from solid objects larger than 1mm but is not water-resistant. Its cable-mount, solder-termination design allows engineers and installers to easily integrate it into instrument panels, sensor lines, and electronic devices, especially where space efficiency is critical.
The 09-9764-00-04 features a threaded mating system for reliable connection, providing both secure engagement and vibration resistance. The straight configuration streamlines cable routing, while the 8mm shell size and subminiature format meet the needs of dense electronic assemblies typically found in control panels, automation equipment, test and measurement instrumentation, and medical devices.
Carefully engineered with polyamide insulation, the connector ensures long-term mechanical integrity even through a wide operating temperature range from -25°C to +70°C. The gold-plated contact surfaces guarantee optimum electrical continuity over many mating cycles, reducing maintenance and improving reliability in industrial, laboratory, and instrumentation environments.
Applications include data and signal interfacing, low power connectors for laboratory equipment, medical sensors, factory automation, small motors, and precision measurement devices. As part of the binder 719 Series, this subminiature circular connector is designed for consistent quality and ease of integration with a vast range of compatible circular accessories.
Choose binder’s 09-9764-00-04 circular connector socket for advanced engineering projects requiring compact size, flexible assembly, and proven reliability from a recognized global brand. Explore more circular connectors and industrial interface solutions in the binder and Electronics Components categories on EnvMart.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a maximum current of 3A.
It can handle a maximum voltage of 60V.
The connector has an IP40 ingress protection rating, providing basic protection against solid objects larger than 1mm.
The housing is made of polyamide, and the contacts are made of bronze with gold plating.
It operates within a temperature range of -25°C to +70°C.
It features a solder termination type for easy installation.
The shell size of this model is 8mm.
It utilizes a threaded mating system for secure and vibration-resistant connections.
No, this connector is rated IP40, which is suitable for protected indoor environments only.
It is suitable for applications such as data and signal interfacing, low power connectors for laboratory equipment, and factory automation.
This is a 4-contact female circular connector socket designed for industrial and instrumentation use.
It is part of the binder 719 Series.
