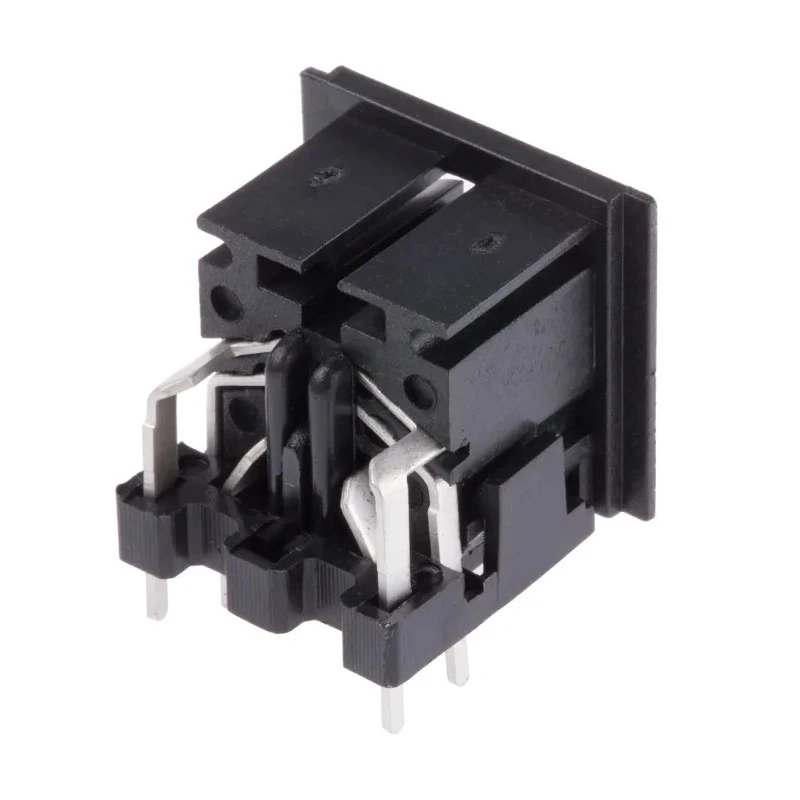

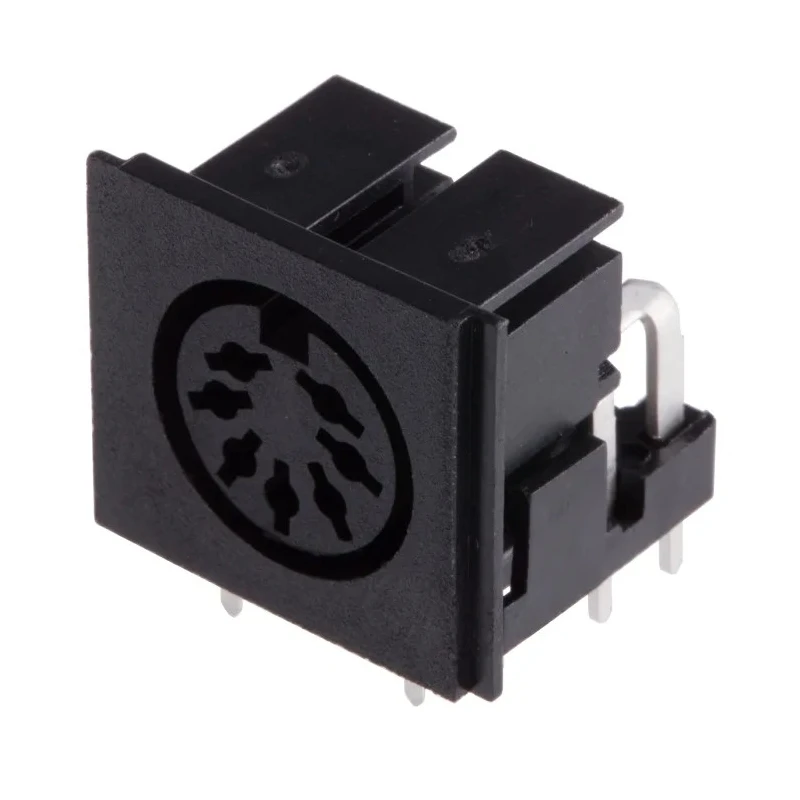

RS PRO 7 Pole Right Angle Miniature DIN Socket 2A 100V AC Through Hole Female YE-138X 491-043

RS PRO 491-043 7 Pole Right Angle Miniature DIN Socket is engineered for dependable connectivity in electronics and electrical devices. This socket is specifically designed for PCB mounting with a right-angle orientation, making it ideal for space-saving configurations where low-profile installation is required.

The connector accommodates seven miniature contacts, configured as a female DIN socket, enabling secure interface between devices such as personal computers, audio/video equipment, and power or serial/data systems. With a current rating of 2A and an operating voltage of 100V AC, it supports a variety of low-power signal and electrical transmission needs.

The socket features a push-in mating mechanism, streamlining installation and removal for maintenance or upgrades. Its through hole mounting style and solder terminals ensure robust mechanical and electrical stability once installed. The housing is made from polybutylene terephthalate (PBT), offering excellent insulation and high durability, while contact materials are copper and brass plated with nickel and tin, providing optimal electrical conductivity and corrosion resistance.

Manufactured for reliability, this connector delivers insulation resistance of at least 100 megaohms at 500V DC, with a dielectric strength of 1,000V AC for one minute, supporting safe operation across demanding environments. The operating temperature range extends from -20°C to 70°C, suitable for industrial, laboratory, and commercial electronics projects.

Unshielded configuration facilitates secure signal and current transmission, and its compact miniature form factor makes it compatible with a wide variety of PCB layouts. Typical applications include PCB assembly, signal and power connections in computing, audio, video, industrial controls, instrumentation, and data communication equipment.

The RS PRO 491-043 model belongs to the YE-138X series, recognized for its versatility in mounting types such as panel, chassis, through hole, and cable mount. This part ensures engineers can achieve both performance and convenience, trusted for rigorous quality tested against industry standards.
