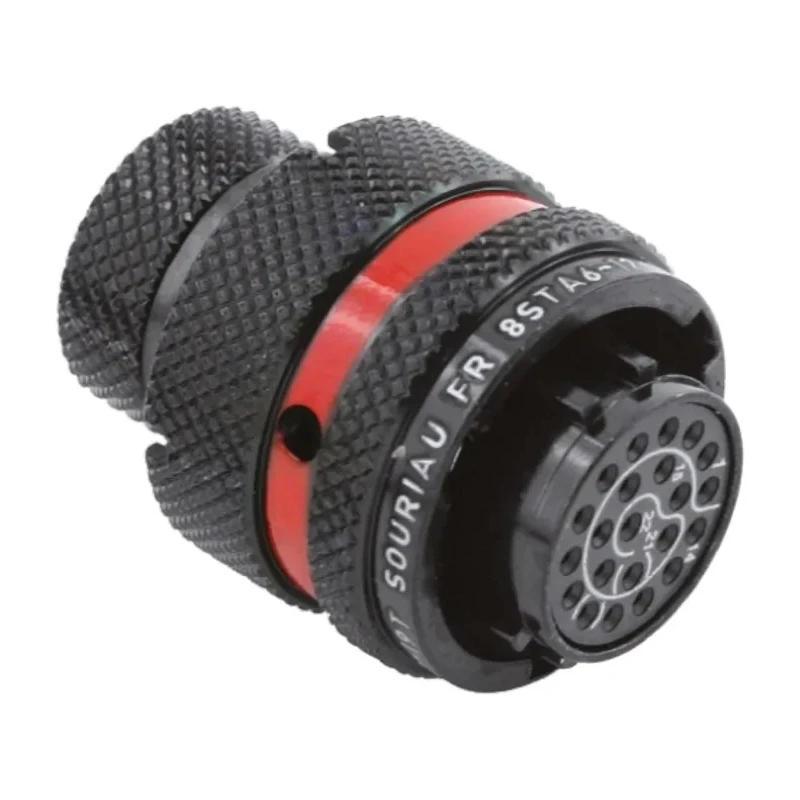

Souriau Sunbank by Eaton Circular Connector, 10 Contacts, Cable Mount, Plug, Female, IP67, 1000V, 7.5A 8STA61298SN

The Souriau Sunbank by Eaton 8STA61298SN is a circular connector plug designed primarily for motorsport and demanding industrial uses. It features 10 female contacts and supports cable mounting with a standard size 12 shell. Rated for 7.5A current and 1000V voltage, this connector provides reliable electrical performance in harsh environments.

Featuring a bayonet mating system, the plug mates quickly and securely with a 1/3 turn locking mechanism accompanied by an audible click. Its lightweight aluminium alloy housing with conductive black zinc plating offers excellent resistance to vibration, impact, and corrosion. The gold-plated copper alloy contacts ensure optimal conductivity and durability.

With an operating temperature range from -55°C up to 175°C, and an IP67 ingress protection rating, the 8STA61298SN connector withstands dust and water exposure, making it suitable for outdoor and rugged applications. Crimp termination enables secure contact installation, and the colour-coded banding system facilitates fast and error-free identification.

This connector series is widely used in motorsports such as Formula 1, Moto GP, and WRC, as well as in military applications including UAVs and ground vehicles where size, weight, and robustness are critical design factors. Its vibration resistance up to 147 m/s² and shock resistance to 300g for 3ms ensures dependable performance in challenging conditions.

This circular connector is rated for 7.5A current and 1000V voltage. The connector features a bayonet mating type with quick 1/3 turn locking. It has a robust aluminium housing with conductive black zinc plating for durability.

Gold-plated copper contacts provide excellent conductivity and corrosion resistance. Operates in a temperature range from -55°C to 175°C suitable for demanding applications. It is vibration and shock resistant, making it ideal for motorsport and military applications.

The IP67 rating ensures protection against dust and water ingress up to 1 meter for 30 minutes. The connector uses crimp termination for secure and reliable contact connection. Lightweight and compact design facilitates installation in confined spaces.

Colour-coded banding allows easy identification during assembly and maintenance.

This industrial circular connector from Souriau Sunbank by Eaton is suitable for applications in automotive racing, military vehicles, UAVs, and other sectors that require compact, lightweight, and high-performance interconnections. It combines durability with ease of use and ensures reliable signal and power transmission under severe operating conditions.
