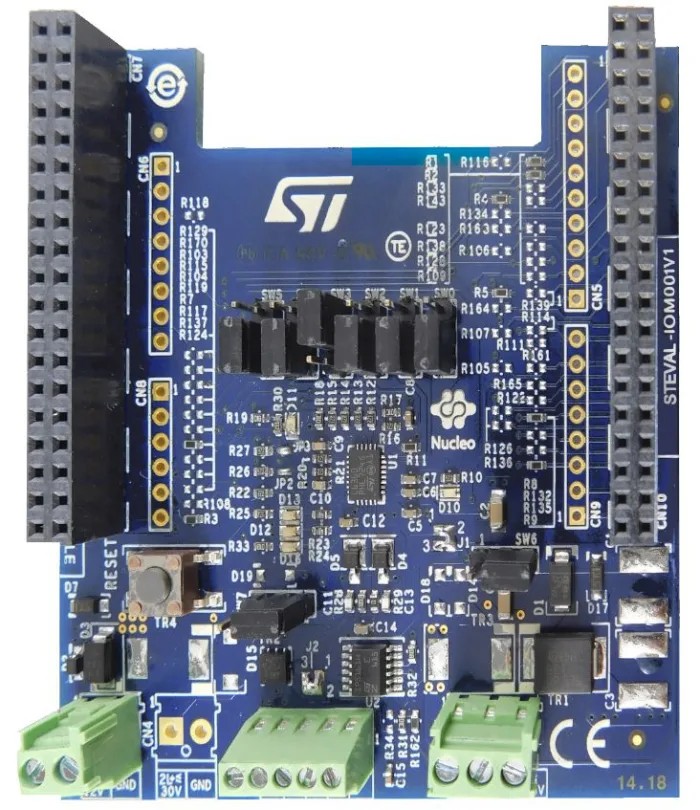

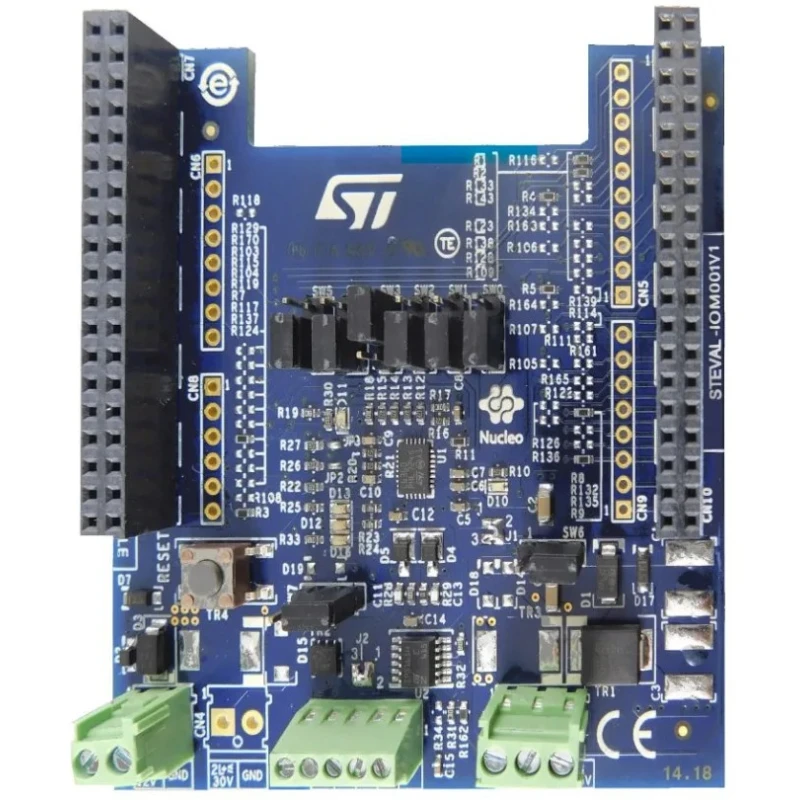

STMicroelectronics L6360 IO-Link Master Evaluation Board for STM32 Nucleo STEVAL-IOM001V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-IOM001V1 |
| Technology | IO-Link |
| Interface Type | Serial |
| For Use With | STM32 Nucleo |
| Kit Classification | Evaluation Board |
| Featured Device | L6360 |
Key Features
- Supports IO-Link v1.1 physical layer specification for robust communication.
- Operating supply voltage range is 18V to 32.5V for versatile power options.
- Selectable 65mA linear regulator output at 3.3V or 5.0V for device compatibility.
- Includes I2C, UART, and SPI (slave) serial interfaces for flexible connectivity.
- Equipped with overload and overheating protection on L+ and CQ lines with non-dissipative cut-off.
- Additional high side switch (IPS161H) allows for L+ heavy load handling.
- Diagnostic LEDs and interrupt diagnostics pin enhance status monitoring and troubleshooting.
- Complies with CE, RoHS, IEC61000-4-2, IEC61000-4-3, IEC61000-4-5 standards ensuring electromagnetic compatibility.
Product Description
STMicroelectronics STEVAL-IOM001V1 IO-Link Master Evaluation Board is engineered to facilitate development and evaluation of IO-Link applications using STM32 Nucleo platforms. Featuring the L6360 IO-Link master transceiver compliant with IO-Link v1.1 physical layer protocol, this evaluation board enables robust and flexible communication for industrial automation.
The board operates within an 18V to 32.5V supply voltage range and provides a selectable linear regulator output of 65mA at either 3.3V or 5.0V to power associated circuitry. It supports multiple serial interfaces including I2C, UART, and SPI (slave) to ensure communication compatibility with a wide range of devices.
Critical protective features include L+ and CQ overload and overheating protections with a non-dissipative cutoff function, ensuring the longevity and safety of connected components. An additional high side switch (IPS161H) caters to L+ heavy load requirements enhancing the board’s operational flexibility.
The STEVAL-IOM001V1 is equipped with interrupt diagnostics pin and LEDs for status indication, greatly simplifying troubleshooting and monitoring during development. It is CE certified and complies with international electromagnetic compatibility standards IEC61000-4-2, IEC61000-4-3, and IEC61000-4-5.
Hailing from Italy, this evaluation board exemplifies high-quality engineering and is ideal for industrial, laboratory, and manufacturing environments requiring reliable IO-Link communication development tools.
Supports IO-Link v1.1 physical layer specification for robust communication. Operating supply voltage range is 18V to 32.5V for versatile power options. Selectable 65mA linear regulator output at 3.3V or 5.0V for device compatibility.
Includes I2C, UART, and SPI (slave) serial interfaces for flexible connectivity. Equipped with overload and overheating protection on L+ and CQ lines with non-dissipative cut-off. Additional high side switch (IPS161H) allows for L+ heavy load handling.
Diagnostic LEDs and interrupt diagnostics pin enhance status monitoring and troubleshooting. Complies with CE, RoHS, IEC61000-4-2, IEC61000-4-3, IEC61000-4-5 standards ensuring electromagnetic compatibility. Designed and manufactured in Italy with high quality and industrial-grade standards.
Explore more in the Evaluation Board category at EnvMart for advanced communication and wireless development tools by trusted brands like STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating supply voltage range for the STEVAL-IOM001V1 is 18V to 32.5V.
It includes I2C, UART, and SPI (slave) serial interfaces for flexible connectivity.
The linear regulator output is selectable at 3.3V or 5.0V, with a maximum output current of 65mA.
It is equipped with overload and overheating protection on L+ and CQ lines, featuring a non-dissipative cut-off function.
The interrupt diagnostics pin enhances status monitoring and troubleshooting during development.
It complies with the IO-Link v1.1 physical layer specification, ensuring robust communication.
An additional high side switch (IPS161H) allows for L+ heavy load handling.
This evaluation board is designed and manufactured in Italy.
It complies with CE, RoHS, IEC61000-4-2, IEC61000-4-3, and IEC61000-4-5 standards.
The featured device is the L6360 IO-Link master transceiver.
It is engineered to facilitate development and evaluation of IO-Link applications using STM32 Nucleo platforms.
It is classified as an Evaluation Board.
