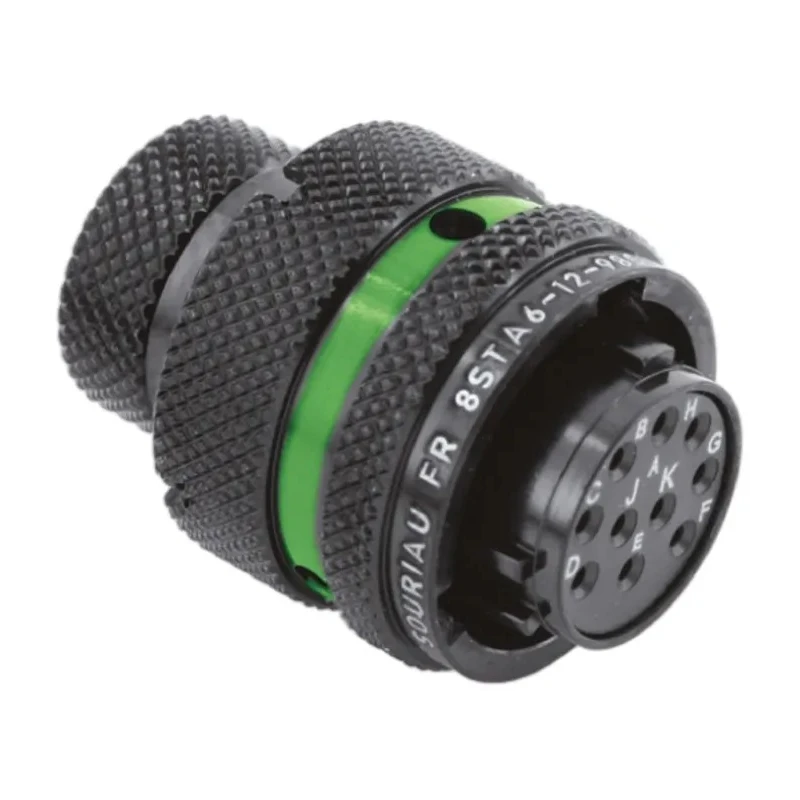

Souriau Sunbank by Eaton Circular Connector, 22 Contacts, Cable Mount, Standard Size, Plug Female, IP67 8STA61235SD
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1000V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | 8STA61235SD |
| IP Rating | IP67 |
| Mount Type | Cable |
| Body | Aluminium alloy, conductive black zinc plated |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 8STA |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Shell Size | 12 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | D |
Key Features
- Comes with 22 gold-plated copper contacts for superior electrical connectivity.
- Constructed with lightweight aluminium housing with conductive black zinc plating.
- Features a bayonet mating type for quick 1/3 turn connection and an audible click.
- Rated IP67 for protection against dust and water ingress up to 1 meter for 30 minutes.
- Operates reliably between -55°C and 175°C temperature range.
- Designed to handle 5A current and withstand vibration and shock for motorsport and industrial use.
- Female plug connector with straight orientation and D coding for correct mating.
- Shell size 12 standard connector size according to MIL-DTL-38999 derived design.
Product Description
Souriau Sunbank by Eaton 8STA61235SD circular connector is engineered for high-performance industrial and motorsport demands, offering 22 gold-plated copper contacts with excellent conductivity and resistance to environmental stresses.
Featuring a durable aluminium alloy housing with conductive black zinc plating, this cable-mounted plug connector ensures a robust mechanical and electrical connection rated to IP67 standards, protecting against dust and water ingress.
The connector supports a current rating of 5A and voltage up to 1000V, with a bayonet mating system allowing rapid, secure coupling in harsh conditions. Its straight orientation and D coding prevent mismating.
Suitable for a wide temperature range from -55°C to 175°C, the 8STA series connector is lightweight and vibration resistant, ideal for motorsport applications such as Formula 1, Moto GP, WRC, and military uses including UAV and ground vehicle interconnections.
Comes with 22 gold-plated copper contacts for superior electrical connectivity. Lightweight aluminium housing with conductive black zinc plating for durability. Quick mating bayonet lock with audible click for secure and fast connections.
IP67 rated for protection against dust and water ingress to 1 meter for 30 minutes. Wide operating temperature from -55°C to 175°C for harsh environmental suitability. Compatible with standard size 12 shell and designed for cable mounting.
Female plug connector with straight orientation and D coding for accurate mating. Developed per MIL-DTL-38999 specifications, primarily for motorsport and military markets.
This Souriau Sunbank by Eaton circular connector is an excellent choice for electrical interconnections demanding durability, weight efficiency, and reliable performance in challenging environments. Browse the full range of Industrial Circular Connectors on EnvMart for more options and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A, making it suitable for various electrical applications.
It is rated IP67, providing protection against dust and water ingress up to 1 meter for 30 minutes.
The housing is made from aluminium alloy with conductive black zinc plating, and the contacts are gold-plated copper for superior electrical connectivity.
It operates reliably within a temperature range of -55°C to 175°C, suitable for harsh environments.
This connector features 22 gold-plated copper contacts, ensuring excellent conductivity.
It utilizes a bayonet mating type, allowing for quick 1/3 turn connections with an audible click for secure engagement.
The shell size is standard size 12, according to MIL-DTL-38999 derived design specifications.
Yes, it is designed for high-performance demands in motorsport applications, including Formula 1 and Moto GP.
The connector has a straight orientation, and it features D coding to ensure correct mating.
It is rated for a maximum voltage of 1000V, making it suitable for various electrical systems.
The connector is manufactured in France, ensuring adherence to quality standards.
This model is designed for cable mounting, facilitating easy installation in various applications.
