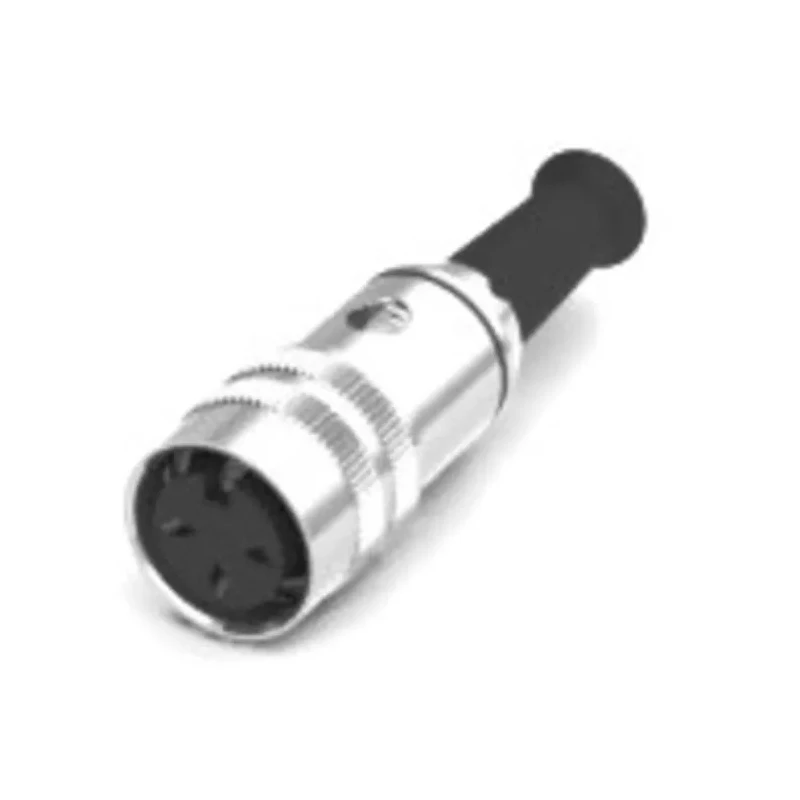

RS PRO 3 Pole Straight M16 DIN Connector, Cable Mount, Female, 4A, 100V, IP40, YE-1223BS 210-0239
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 100V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 4A |
| Model | 210-0239 |
| IP Rating | IP40 |
| Connector Type | Female DIN connector plug |
| Mounting Type | Cable Mount |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Housing | PA66 |
| Contact Material | Brass |
| Series | YE-1223BS |
| Termination Type | Solder |
| Terminals | Brass, Silver plated |
| Number of Poles | 3,4,5,6 |
| Pole Format | 3 |
| Contact Plating | Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Termination Method | Solder |
| Cable Holder | Steel, Nickel plated |
| Shell Cover | Brass, Nickel plated |
| Screw Cap | Brass, Nickel plated |
| Strain Boot | PVC |
Key Features
- Features a straight female DIN connector with M16 size for secure cable mounting.
- Accommodates 3 contacts, ideal for control, automation, and audio signal applications.
- Rated for 4A current and up to 100V, supporting diverse low-voltage electronic circuits.
- IP40 ingress protection defends against small objects for internal environments.
- Solder termination ensures a stable electrical connection with minimal resistance.
- Polyamide housing offers durability and mechanical strength.
- Brass contacts plated with nickel for reliable conductivity and corrosion resistance.
- Screw lock mechanism prevents accidental disconnection under vibration or movement.
Product Description
RS PRO YE-1223BS 3 pole M16 DIN cable connector is designed for engineers and technicians who need a dependable, high-quality connector for low-voltage electrical or electronic applications. This cable mount, straight female connector offers robust performance in a wide variety of control, automation, and instrumentation environments, thanks to its 4A current rating and 100V voltage capability.
The connector features a screw-lock system, providing strong mechanical retention once mated with the corresponding male DIN socket, preventing accidental disconnects even in environments susceptible to vibration. The housing is constructed from tough polyamide PA66 for reliability and insulation, and the brass terminals feature nickel plating, ensuring efficient conductivity and resistance to corrosion over extended use.
Features a straight M16 size for ease of cable mounting and installation in electronic enclosures or panels. Includes three pin contacts, allowing for both signal and low-power transfer in control and audio systems. Termination by solder, resulting in secure mechanical and electrical joints.
IP40 ingress protection rating shields the connector from penetration by solid objects, suitable for indoor professional use. Recommended for use in factory automation, control engineering, laboratory instrumentation, and audio signal transmission.
The female DIN Connector is equally at home in custom cable builds as a replacement in industrial systems where quick repairs and reliable connectivity are required. The M16 interface makes it suitable for various global standard DIN applications. The cable holder, shell cover, screw cap, and strain boot, made from steel, brass, and PVC, maximize longevity, resistance to mechanical stress, and secure strain relief.
Applications for the RS PRO YE-1223BS connector include factory automation, medical instrumentation, electronic audio equipment, and automation technology. The connector's versatility, quality construction, and international compatibility make it a popular choice for assembly lines, professional equipment maintenance, and control panel integrations.
Choose RS PRO connectors for reputable quality and performance, supported by rigorous product testing and engineering trust. Browse more industrial and electronics connectors at EnvMart to find the right match for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 4A and a voltage of up to 100V, making it suitable for low-voltage electronic circuits.
It features a screw-lock mechanism for secure mating with the corresponding male DIN socket, preventing accidental disconnection.
The connector has an IP40 ingress protection rating, which shields it from penetration by small objects, suitable for indoor use.
The housing is made from polyamide PA66, while the contacts are brass with nickel plating for reliable conductivity and corrosion resistance.
This unit accommodates three contacts, allowing for both signal and low-power transfer in various applications.
It is a cable mount connector, designed for secure installation in electronic enclosures or panels.
The termination method is solder, ensuring secure mechanical and electrical connections.
This model features an M16 size, which is standard for various DIN applications.
The screw cap and strain boot, made from brass and PVC respectively, provide strain relief and enhance the mechanical strength of the connection.
The country of origin for this connector is Taiwan.
