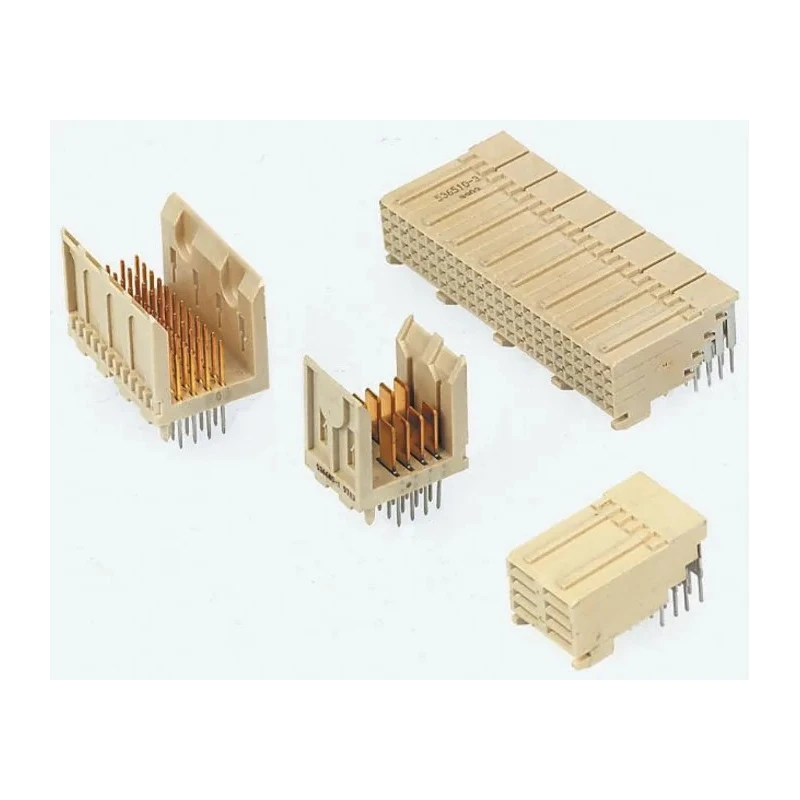

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector 24 Contacts Right Angle Female 5536507-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | Z-PACK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Number of columns | 6 |
| Pitch | 2mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | Futurebus+ |
Key Features
- High density connector with 24 contacts arranged in 6 columns and 4 rows.
- Constructed with liquid crystal polymer housing for durability.
- Contacts made of phosphor bronze plated with gold over nickel.
- Supports 3A current and 30V AC voltage ratings.
- Designed for through-hole mount and solder termination type.
- Wide operating temperature range from -55°C to 105°C.
- Right angle female orientation suitable for backplane applications.
- Complies with Z-PACK series and Futurebus+ standards.
Product Description
TE Connectivity 5536507-1 Backplane Connector is a high-quality, right angle female connector designed for Futurebus+ backplane interconnections with a 2 mm pitch and a total of 24 contacts arranged in 6 columns and 4 rows. This connector is part of the Z-PACK series, known for providing high density and high speed signal and power connections in electronic equipment.
The connector features a durable liquid crystal polymer housing material that offers excellent mechanical stability and resistance to high temperatures ranging from -55°C to 105°C. The phosphor bronze contacts are plated with gold over nickel to ensure maximum conductivity and corrosion resistance, making it reliable for demanding electrical environments. It supports a current rating of 3A and voltage up to 30V AC, suitable for board-to-board wiring in industrial, telecommunications, and computing applications.
This component is designed for through-hole mounting with a solder termination type, facilitating secure mechanical and electrical connection on printed circuit boards. The modular design allows for end-to-end stacking and flexible use in complex backplane assemblies. Its right angle female orientation facilitates easier connection in tight or compact designs where space conservation is critical.
Ideal for electronics manufacturers requiring compliant, high-performance connectors that meet Futurebus+ and IEC 1076-4-0X-(48B) standards, ensuring compatibility and reliability across various industrial and commercial equipment.
High density connector with 24 contacts arranged in 6 columns and 4 rows. Constructed with liquid crystal polymer housing for durability. Contacts are phosphor bronze plated with gold over nickel. Supports 3A current and 30V AC voltage.
Through-hole mount with solder termination for secure installation. Wide temperature range from -55°C to 105°C. Right angle female connector design for flexible board layout. Complies with Futurebus+ and IEC standards.
This TE Connectivity Z-PACK series connector is essential for industrial automation, telecommunications, computing hardware, and other electronic assemblies demanding reliable backplane connections. EnvMart offers this product to meet your technical and industrial needs.
