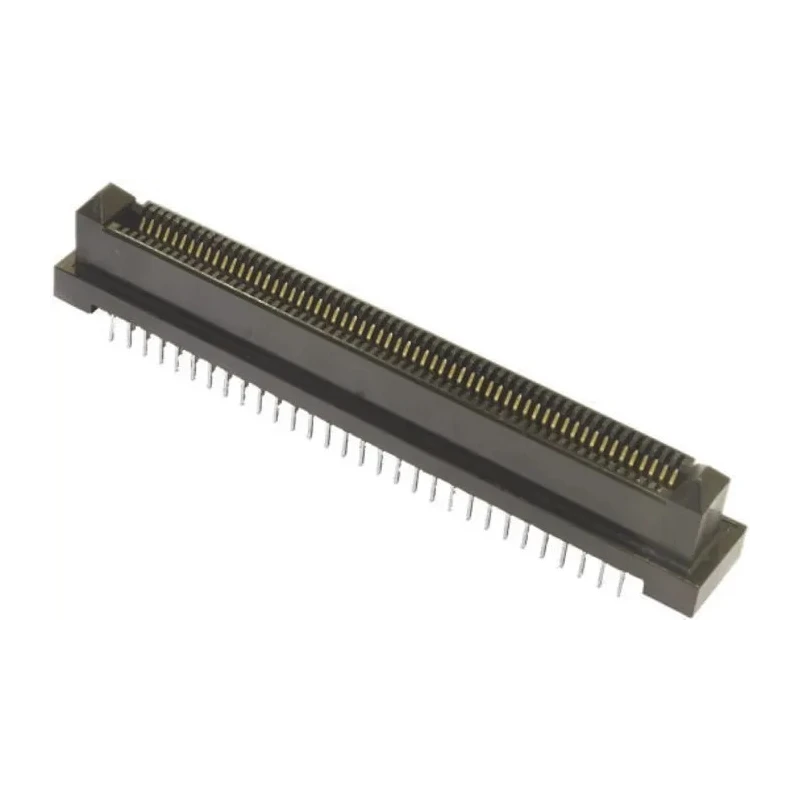

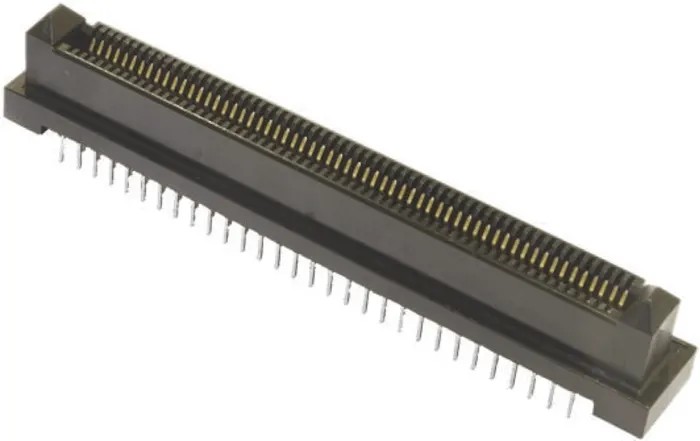

TE Connectivity 1FHP Series Straight Backplane Connector Male, Surface Mount, 64 Contacts, 1 mm Pitch, 2 Row 5120527-1

TE Connectivity 5120527-1 Backplane Connector Male is a high-quality surface mount connector with 64 gold-plated contacts arranged in 2 rows on a 1 mm pitch. It is part of the 1FHP Series featuring free height (FH) IEEE 1386 standards, designed to ensure high-density and reliable mezzanine board stacking for complex electronic systems.

The connector is constructed from a durable liquid crystal polymer thermoplastic housing rated UL 94V-0 for fire resistance and electrical insulation. The contacts are made from copper alloy and plated with gold over nickel, providing excellent conductivity and resistance to corrosion and wear. Termination is by solder, ensuring secure and reliable mounting on printed circuit boards.

It supports operation in demanding temperature ranges from - 40°C up to 85°C, making it suitable for harsh industrial and laboratory environments. Rated to carry 500 mA of current at 100 volts AC, it guarantees stable electrical performance for demanding applications.

This connector series meets the EIA-700 AAAB specification for IEEE 1386 applications, though no specific approvals beyond UL 94V-0 are stated. The compact 2-row design with 64 contacts allows for dense board-to-board connection while maintaining electrical integrity.

Common applications include industrial electronics, telecommunications equipment, computing devices, and other environments requiring rugged and reliable mezzanine connectors. The surface mount style allows efficient assembly in automated manufacturing settings.

Complies with IEEE 1386 free height (FH) plug and receptacle standards for high-density mezzanine stacking. Features gold-plated copper alloy contacts with nickel underlay for optimal conductivity and durability. Constructed with a black UL 94V-0 thermoplastic liquid crystal polymer housing for enhanced safety and insulation.

Operates reliably in temperature ranges from - 40°C to 85°C. Surface mount design simplifies assembly and provides secure solder termination. Rated for 100 V AC and 500 mA current capacity ensuring stable electrical performance.

Two-row, 64-contact layout offers compact and efficient board-to-board connectivity. Ideal for industrial, electronics manufacturing, computing, and telecommunications applications. Explore the extensive category of Backplane Connectors and related TE Connectivity products on EnvMart for your industrial and electronic component needs.
