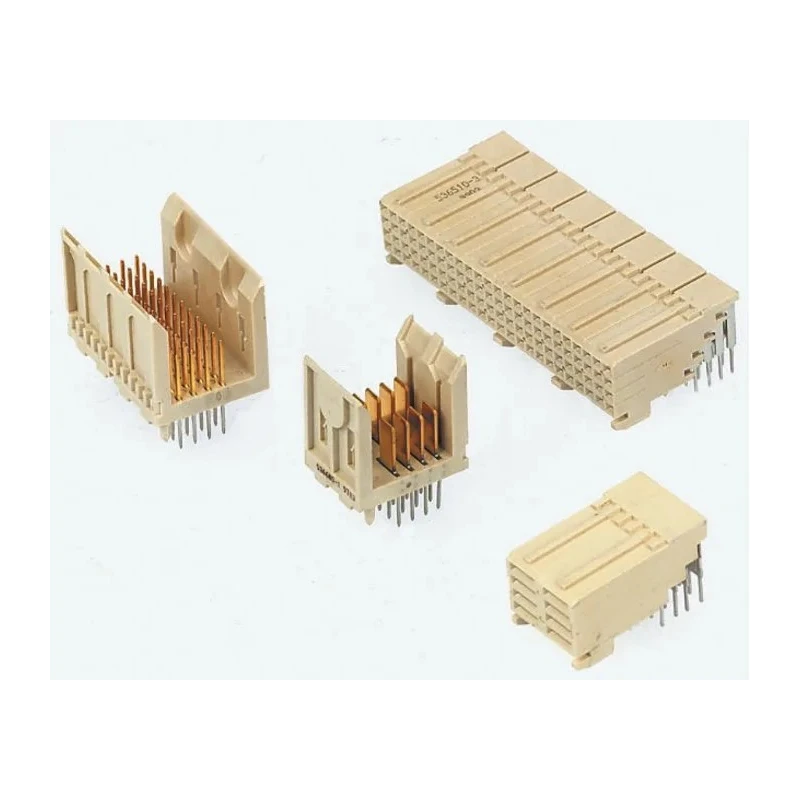

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Right Angle Female 24 Way 5536507-1

Category Backplane Connector Brand TE Connectivity Condition New

Specifications

Country of Origin India
Voltage 30V ac
Brand TE Connectivity
Orientation Right Angle
Current 3A
Mount Type Through Hole
Housing Material Liquid Crystal Polymer
Contact Material Phosphor Bronze
Series Z-PACK
Termination Type Solder
Maximum Operating Temperature 105°C
Minimum Operating Temperature -55°C
Number of Rows 4
Number of columns 6
Pitch 2mm
Contact Plating Gold over Nickel
Number of Contacts 24
Contact Gender Female
Connector Gender Female
Backplane Connector Type Futurebus+

Key Features

  • Right angle female connector suitable for backplane use.
  • Constructed with Phosphor Bronze contacts plated with gold over nickel.
  • Housing made from high-performance liquid crystal polymer ensuring durability.
  • Capable of handling current up to 3A at 30V AC.
  • Supports through-hole mount type for secure attachment.
  • Designed for operating temperatures from -55°C to 105°C.
  • Features 6 columns and 4 rows providing a 24-way connectivity.
  • Termination type is solder to ensure reliable electrical connection.

Product Description

TE Connectivity model 5536507-1 is a Z-PACK 2 mm pitch Futurebus+ backplane connector designed for high-density and high-speed electronic interconnect applications. This connector features a modular design and complies with Futurebus+ and IEC 1076-4-0X-(48B) standards, making it ideal for demanding industrial, laboratory, and telecommunications equipment.

The connector is a right-angle female type with 24 electrical contacts arranged in 6 columns and 4 rows. It is constructed using phosphor bronze contacts plated with gold over nickel to ensure excellent conductivity and resistance to corrosion. The housing is made of liquid crystal polymer, providing excellent mechanical strength and thermal stability.

This connector is designed to handle 3 amperes current at 30 volts AC and is suitable for through-hole mounting. It is rated for a wide temperature range from -55°C to 105°C, allowing reliable operation in harsh environments. The solder termination ensures durable and secure connections to printed circuit boards.

TE Connectivity's 5536507-1 backplane connector is commonly used in industrial equipment, test and measurement devices, telecommunications backplanes, and other high-performance computing applications that require robust and reliable interconnect solutions.

The product is supplied in a protective tube packaging, facilitating efficient handling and insertion processes during manufacturing. Right angle female connector suitable for backplane use. Phosphor bronze contacts with gold over nickel plating for enhanced conductivity.

Durable liquid crystal polymer housing provides mechanical and thermal stability. Supports 3A current and 30V AC voltage rating. Through-hole mount type for secure PCB attachment. Wide operating temperature range from -55°C to 105°C.

Modular Z-PACK series compliant with Futurebus+ standards. Suitable for industrial, laboratory, telecommunications, and test equipment applications. Browse all TE Connectivity Backplane Connectors in the electronics components category at EnvMart.

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Right Angle Female 24 Way 5536507-1
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for a maximum current of 3A and a voltage of 30V AC.

It features a 2mm pitch with 24 electrical contacts arranged in 6 columns and 4 rows.

The contacts are made of phosphor bronze plated with gold over nickel, while the housing is constructed from liquid crystal polymer.

It is designed to operate within a temperature range of -55°C to 105°C.

This connector supports through-hole mounting for secure attachment to printed circuit boards.

It complies with Futurebus+ and IEC 1076-4-0X-(48B) standards, making it suitable for high-density applications.

The termination type is solder, ensuring reliable electrical connections.

This model features female contacts, making it a right-angle female connector.

It is commonly used in industrial equipment, test and measurement devices, and telecommunications backplanes.

It is supplied in a protective tube packaging that facilitates efficient handling and insertion during manufacturing.

The gold over nickel plating enhances conductivity and provides resistance to corrosion, ensuring reliable performance.

The country of origin for this connector is India.
