TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Straight Male 4 Row 96 Way 5536501-3

Free Delivery in India | Lowest Global Shipping Charges

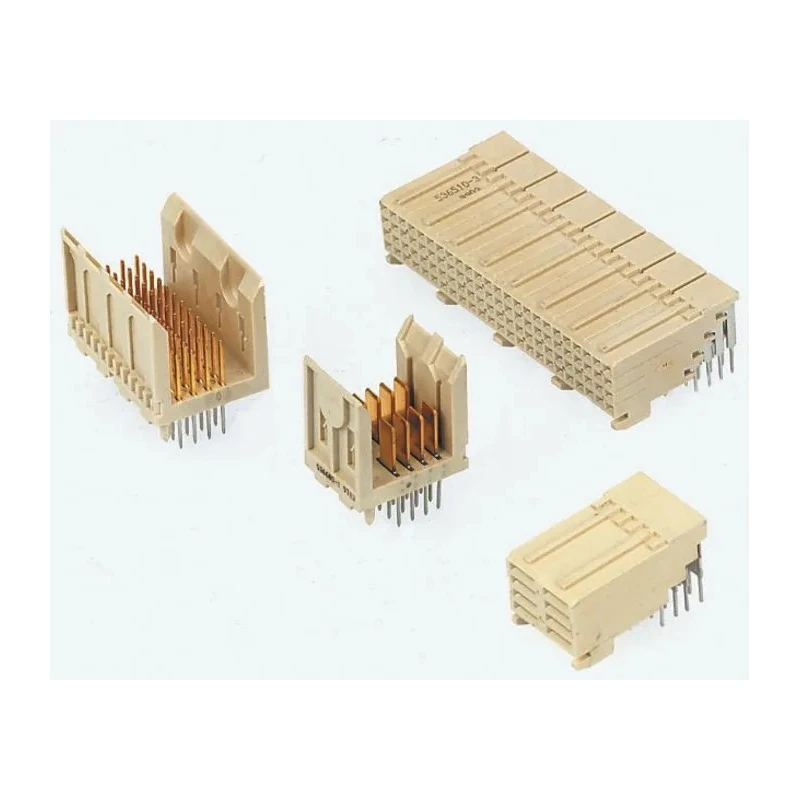

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Straight Male 4 Row 96 Way 5536501-3

Name: TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Straight Male 4 Row 96 Way 5536501-3
Brand: TE Connectivity
SKU: 169879
Price: 33.21 USD
Availability: InStock



Category Backplane Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	30V ac
Brand	TE Connectivity
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	Z-PACK
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	4
Pitch	2mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	Futurebus+

Key Features

Features a straight male connector with 4 rows and 96 contacts.
Constructed using liquid crystal polymer housing for enhanced durability.
Contacts made from phosphor bronze with gold over nickel plating for reliability.
Supports up to 3 A current and voltage rating of 30V ac.
Mount type is through hole with solder termination ensuring secure PCB connection.
Operates effectively in temperature ranges from -55°C to 125°C.
Complies with Futurebus+ and IEC 1076-4-0X-(48B) standards.
Modular and stackable design allows scalability in backplane assemblies.

Product Description

TE Connectivity 5536501-3 Z-PACK 2 mm Pitch Futurebus+ Backplane Connector is engineered for high density and high speed signal and power connections in demanding electronic applications. This connector features a straight male orientation with 4 rows and 96 contact points designed to ensure reliable connectivity.

The connector housing is composed of liquid crystal polymer, offering excellent mechanical strength and resistance to heat. Contacts are crafted from phosphor bronze, plated with gold over nickel to optimize conductivity and prevent corrosion.

Rated for 3 A current and 30V ac voltage, this connector supports a wide operating temperature range from -55°C to 125°C, making it suitable for harsh environments. It is equipped with through-hole mounting and solder termination types which provide secure, robust attachment to printed circuit boards.

The Z-PACK series complies with Futurebus+ and IEC 1076-4-0X-(48B) standards, ensuring compatibility and performance in various industrial and electronic applications. The modular, end-to-end stackable design facilitates flexible system configurations and easy system expansion.

This Backplane Connector is ideal for industrial automation, telecommunications, computing hardware, and other electronics manufacturing sectors requiring high reliability and efficient signal transmission.

Features a straight male connector with 4 rows and 96 contacts. Constructed with liquid crystal polymer housing for strength and durability. Phosphor bronze contacts with gold over nickel plating ensure reliable electrical connections.

Supports 3A current at 30V ac voltage rating. Through hole mount and solder termination for secure PCB installation. Operates across -55°C to 125°C temperature range. Complies with Futurebus+ and IEC 1076-4-0 standards. Modular, stackable design enables flexible system layouts.

Suitable for industrial, telecommunications, and electronics manufacturing. Explore more in our Electronics Components category for reliable connectors and other component solutions.
