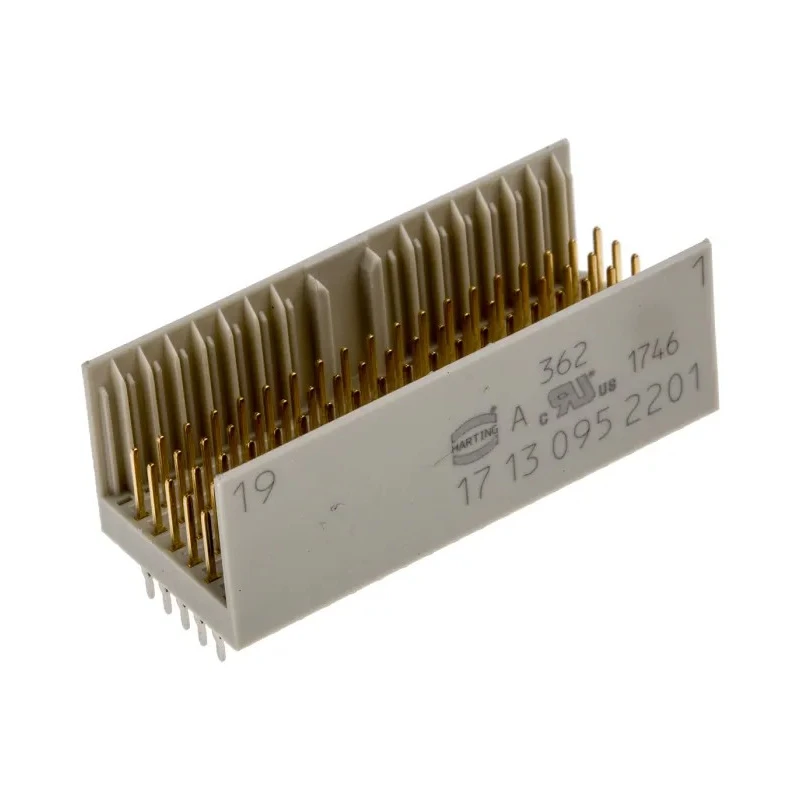

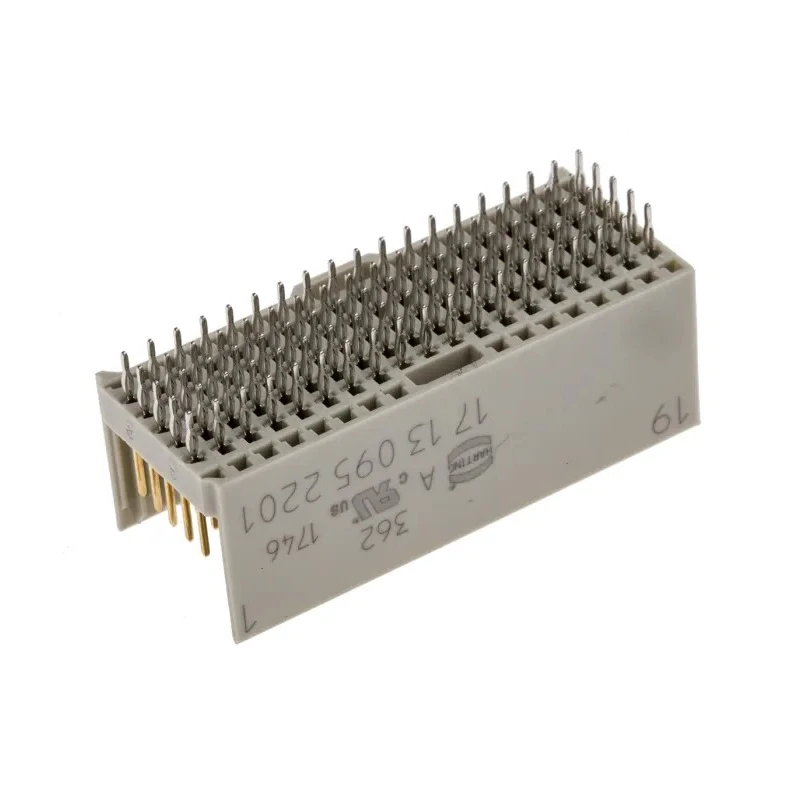

HARTING Hard Metric Backplane Connector, Straight Male, 7 Row, 95 Way, 750V AC, 1A Current, Fibreglass 17130952201

HARTING 17130952201 Hard Metric Backplane Connector provides a reliable and robust solution for industrial and electronic system backplane connectivity. Designed as a straight male connector with 7 rows consisting of 95 contact points, this product supports current ratings up to 1A and voltage ratings of 750V AC, making it suitable for demanding electrical environments.

The housing material is a fibreglass reinforced thermoplastic that delivers excellent mechanical stability and resistance to harsh operating conditions. The contacts are crafted from copper alloy with a high-quality gold over nickel plating to ensure excellent electrical performance and longevity in corrosion-prone environments.

This connector features a 2 mm pitch and a press-in termination type with through-hole mounting, allowing for robust attachment to printed circuit boards. It operates reliably across a broad temperature range from -55°C to 125°C, supporting diverse industrial and laboratory conditions.

The product belongs to the har-bus HM series, widely recognized for its hard metric design suitable for backplane and midplane systems. It is compatible with 5-row modules like A, B, AB, and C monoblocks as well as 8-row modules including D, E, and DE configurations.

Manufactured in Germany, this backplane connector is built in accordance with stringent quality standards to support critical electronic assemblies and power distribution networks in manufacturing, industrial automation, and testing environments.

The connector supports a current rating of 1A and voltage rating of 750V AC. Constructed with a fibreglass reinforced thermoplastic housing ensuring durability. Contacts are made from copper alloy with gold over nickel plating for enhanced conductivity and corrosion resistance.

Designed with a straight male orientation and press-in termination type. The connector mounts through hole on printed circuit boards for secure installation. Operational temperature range is between -55°C and 125°C for wide temperature suitability.

This Backplane Connector is part of the har-bus HM series, known for robust industrial applications. Suitable for industrial, laboratory, manufacturing, and electronic equipment applications requiring reliable backplane connections.

Manufactured in Germany with stringent quality standards. Explore more high-quality connectors and electronic components at EnvMart for your industrial and laboratory needs.
