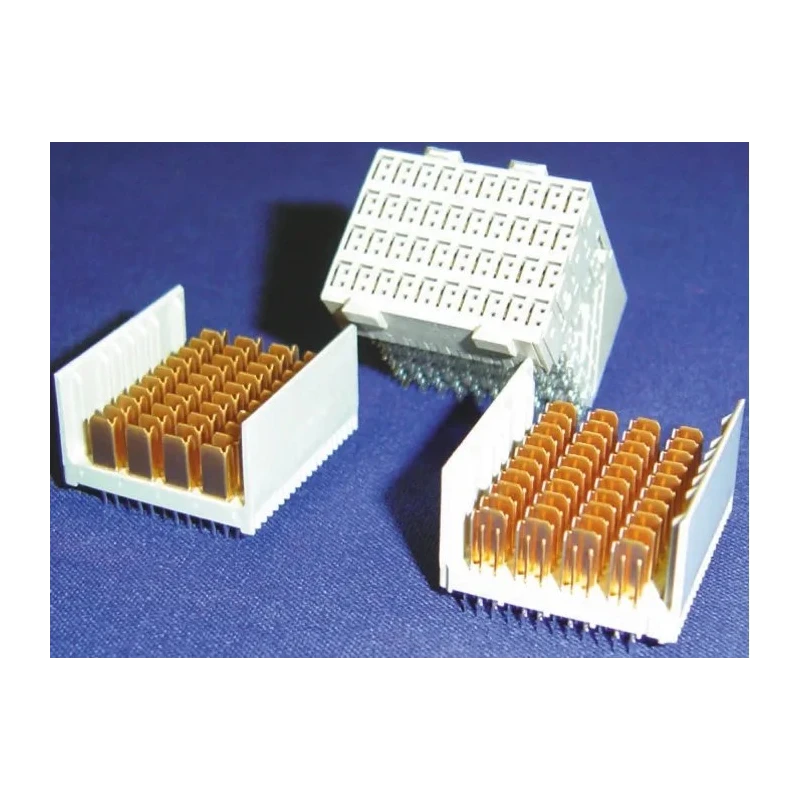

TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch Backplane Connector, Straight Male, 10 Column, 8 Row, 80 Way 6469002-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch Backplane Connector, Straight Male, 10 Column, 8 Row, 80 Way 6469002-1

Name: TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch Backplane Connector, Straight Male, 10 Column, 8 Row, 80 Way 6469002-1
Brand: TE Connectivity
SKU: 194609
Price: 25.81 USD
Availability: InStock



Category Backplane Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	7A
Mount Type	Through Hole
Housing Material	Polyethylene Terephthalate
Contact Material	Phosphor Bronze
Series	Z-PACK HM-Zd
Termination Type	Press-in
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	8
Number of columns	10
Pitch	2.5mm
Contact Plating	Gold over Nickel
Number of Contacts	80
Contact Gender	Male
Connector Gender	Male

Key Features

The connector has a straight male orientation with 10 columns and 8 rows, totaling 80 contacts.
It supports a rated current of 7A and voltage up to 250V.
Featuring a polyethylene terephthalate housing material, it ensures durability and performance.
Contacts are made of phosphor bronze with gold over nickel plating for reliable conductivity.
Through hole mount type and press-in termination provide secure installation.
Designed for operating temperatures ranging from -65°C to 105°C.
Complies with the Z-PACK HM-Zd series standard, suitable for PICMG 3.x (ATCA) backplane interconnects.
Ideal for high-speed differential board-to-backplane connections with data rates from 3 to 6.4 Gb/s.

Product Description

TE Connectivity 6469002-1 Backplane Connector is a high-performance Z-PACK HM-Zd series connector designed for industrial and electronic component applications requiring reliable board-to-backplane electrical connections.

This 2.5 mm pitch connector features a straight male design with 10 columns and 8 rows, delivering 80 total contacts. Each contact supports up to 7A current and voltage ratings up to 250V, making it suitable for demanding electronic environments.

The housing is made from durable polyethylene terephthalate, providing mechanical robustness and resistance to harsh conditions. Contacts are constructed from phosphor bronze and plated with gold over nickel, ensuring excellent conductivity and corrosion resistance. The through hole mount and press-in termination facilitate strong mechanical retention on PCBs.

Operating temperature ranges from -65°C to 105°C, enabling use in both extreme cold and high-temperature industrial settings. This connector series complies with the Z-PACK HM-Zd specifications, an extension of IEC61076-4-101, tailored for PICMG 3.x (ATCA) applications.

It supports high-speed differential signaling for data rates ranging from 3 to 6.4 Gb/s, suitable for advanced communications and computing equipment. Its application includes industrial, manufacturing, telecom, data centers, and embedded system environments requiring reliable backplane interconnectivity.

The connector features a straight male orientation with 80 contacts. Rated for 7A current and 250V voltage. Polyethylene terephthalate housing ensures durability. Phosphor bronze contacts with gold plating provide reliable connections.

Through hole mount and press-in termination type improve assembly strength. Wide operating temperature range from -65°C to 105°C. Approved as part of the Z-PACK HM-Zd series for PICMG 3.x backplane systems. Supports high-speed differential signals up to 6.4 Gb/s.

This product is a dependable solution for electronic system builders requiring secure, high-speed Backplane Connectors. For more industrial connector options, explore the electronics & electrical components category at EnvMart.
