TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch Backplane Connector Right Angle Female 10 Column 4 Row 40 Way 1469028-1

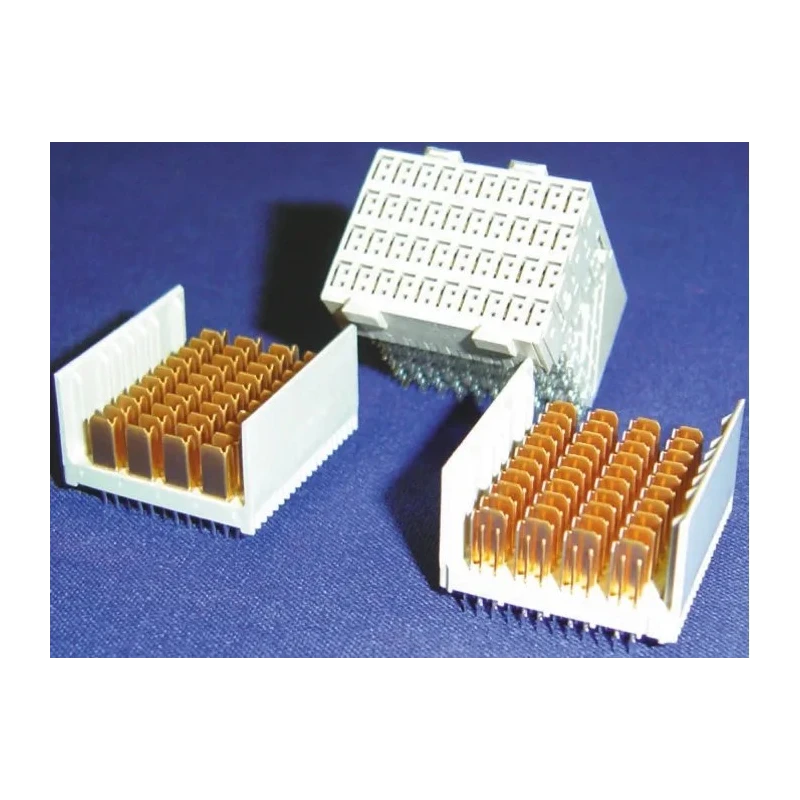

TE Connectivity 1469028-1 Backplane Connector is a high-performance 2.5 mm pitch right angle female connector designed for backplane and rack applications requiring robust and reliable connections. It features 40 contacts arranged in 10 columns and 4 rows, making it ideal for high-density electronic component interfaces.

This connector assembly utilizes press fit PCB through hole mounting technology, ensuring secure mechanical and electrical stability. The housing is constructed from Polyethylene Terephthalate, reinforced with glass fibers, providing excellent durability and thermal resistance.

The contact plating consists of gold over nickel, which enhances corrosion resistance and signal conductivity. Contacts are fabricated from copper nickel silicon, supporting high-speed differential signals up to 6.4 Gb/s, suitable for demanding industrial and telecommunications applications.

Rated for 7 amperes current and 250 volts voltage, this connector is engineered to operate reliably within a temperature range of -65°C to 105°C, making it suitable for harsh environments.

The Z-PACK HM-Zd series complies with PICMG 3.x (ATCA) standards and the IEC61076-4-101 extension, guaranteeing compatibility in advanced backplane interconnect systems for industrial, telecommunications, and data center applications.

Its right angle female orientation facilitates compact PCB designs by allowing connectors to be mounted perpendicular to the board surface, optimizing space and enabling efficient routing.

Applications include industrial electronics, telecom switches, data storage systems, and embedded computing where high-speed, high-density connections are critical. Designed for press fit through hole mounting on PCBs. Housing made of durable Polyethylene Terephthalate with gold over nickel plating on contacts.

Operates at voltage rating of 250V and current rating of 7A. Supports operating temperatures from -65°C to 105°C ensuring reliability. Compatible with PICMG 3.x (ATCA) industry standard as backplane interconnect. Provides high-speed differential electrical connections up to 6.4 Gb/s.

Complies with IEC61076-4-101 extension standards for backplane connectors. Manufactured with copper nickel silicon contact material for stable signal integrity. Right angle orientation allows for efficient PCB layout and space-saving design.

Connector gender is female suited for mating with male pins or headers. Explore more Backplane Connectors and Z-PACK HM-Zd series products in the Electronics Components category on EnvMart.
