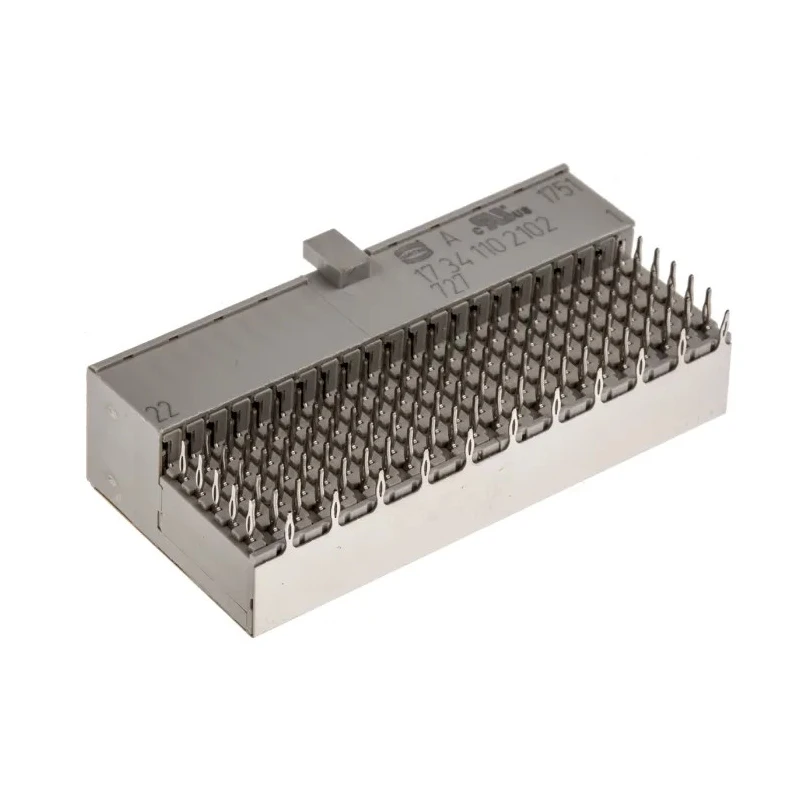

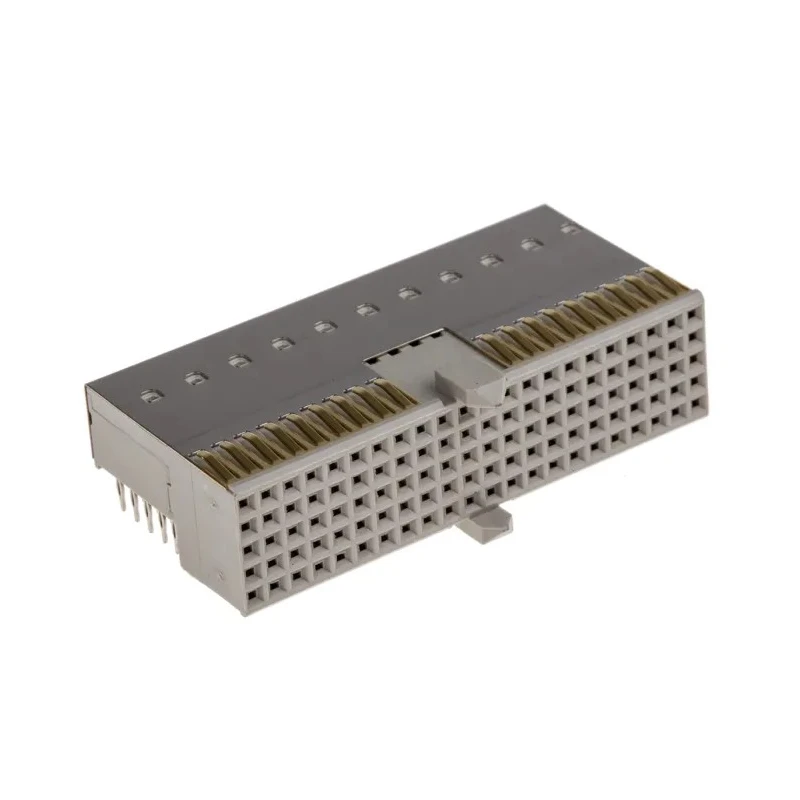

HARTING Backplane Connector har-bus HM 2 mm Pitch AB22, Right Angle Female, 7 Row, 110 Way AB22

HARTING's AB22 backplane connector from the har-bus HM series is a high-performance electronic component designed for industrial and electronic applications requiring precise and reliable connectivity. This connector has a 2 mm pitch and features a right angle female orientation with 7 rows and 110 contacts, making it suitable for complex backplane configurations.

The housing is made from fibreglass reinforced thermoplastic, offering enhanced mechanical strength and resistance to harsh industrial environments. The contact material is a copper alloy plated with gold over nickel, ensuring excellent electrical conductivity and corrosion resistance. The through-hole mount type secures the connector firmly on printed circuit boards, supporting stable and durable connections.

It supports a nominal current of 1 ampere and can tolerate an operating voltage of up to 750 volts AC, suitable for a wide range of power and signal applications. The connector operates reliably across a broad temperature range from -55°C to 125°C, making it versatile for demanding industrial, manufacturing, automation, and electronic instrumentation use cases.

The press-in termination type offers easy installation without the need for soldering, saving assembly time while maintaining connection integrity. This product is manufactured in Germany to strict quality standards, ensuring durability and consistent performance.

Typical industrial applications for this backplane connector include automation control systems, electronic instrumentation, data communication racks, and power distribution panels in manufacturing facilities.

Designed for reliable electronic and industrial applications. Current rating of 1A suitable for standard signal transmission. Constructed with fibreglass reinforced thermoplastic housing for durability. Gold-over-nickel plated copper alloy contacts ensure excellent conductivity.

Through hole mount type facilitates secure PCB installation. Operating voltage up to 750V ac supports a broad range of electronic devices. Wide operating temperatures from -55°C to 125°C allow usage in harsh environments.

Press-in termination type provides stable connection without soldering. Made in Germany ensuring high quality and manufacturing standards. Explore the complete range of HARTING Backplane Connectors and electronic components on EnvMart for comprehensive solutions to your industrial connectivity needs.
