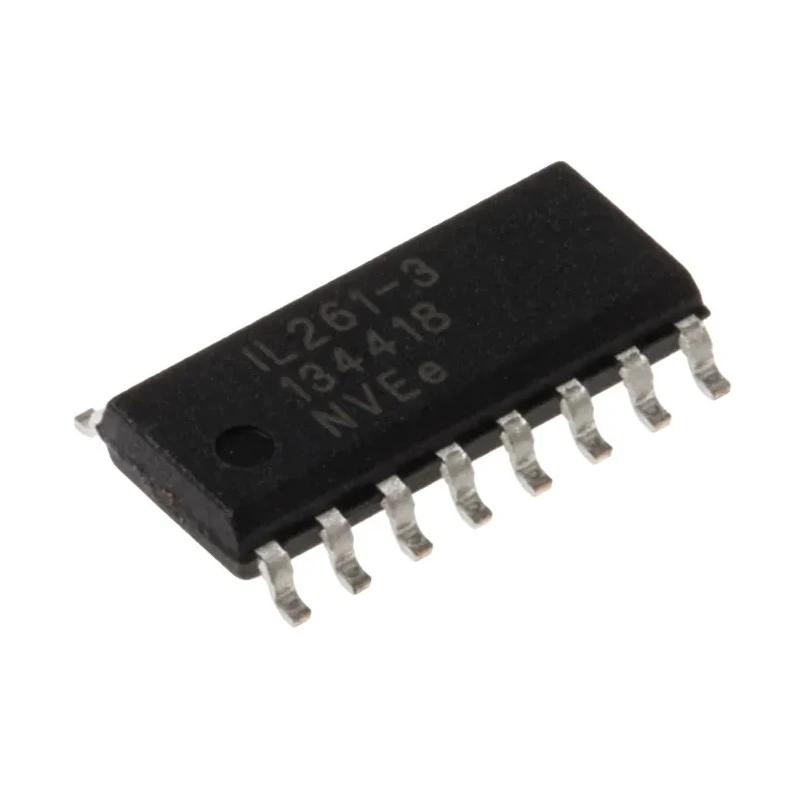

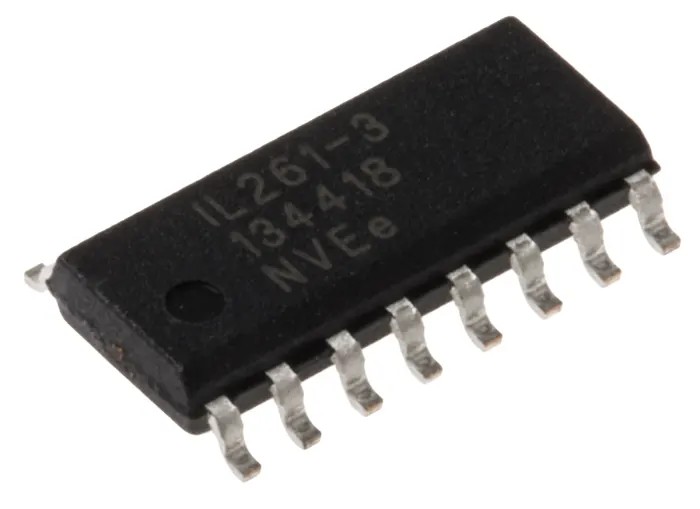

NVE 5-Channel Digital Isolator SOIC, 110 Mbps, 2500 Vrms, 5.5V, 16-Pin IL261-3E

Free Delivery in India | Lowest Global Shipping Charges

NVE 5-Channel Digital Isolator SOIC, 110 Mbps, 2500 Vrms, 5.5V, 16-Pin IL261-3E



Category Digital Isolator Brand NVE Condition New

Specifications

Country of Origin	India
Brand	NVE
Length	10mm
Model	IL261-3E
Depth	1.27mm
Width	3.99mm
Mount Type	Surface
Series	IL
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Maximum input current	10μA
Number Of Channels	5
Rise Time	4ns
Supply Voltage	5.5V
Standards/Approvals	IEC, UL
Maximum Forward Voltage	7V
Number of Pins	16
Maximum Data Rate	110Mbps
Propagation Delay Time	4ns
Package Style	SOIC

Key Features

Offers 5 independent digital isolation channels.
Maximum data rate capability of 110 Mbps for rapid signal transfer.
High isolation voltage rating of 2500 Vrms for safety reliability.
Operates at supply voltage up to 5.5V, suitable for modern electronics.
Features propagation delay time of just 4 ns for low-latency applications.
Standard SOIC-16 pin configuration enables easy PCB assembly.
Wide operating temperature range from -55°C to 125°C ensures robustness.
Compliant with IEC and UL standards for quality and performance.

Product Description

The NVE IL261-3E is a high-performance, 5-channel digital isolator engineered for applications requiring secure signal separation and fast digital communication. Using advanced isolation technologies, the device safely transmits digital signals across isolated regions, protecting sensitive circuits and users from voltage spikes or faults.

This model supports a maximum data rate of 110 Mbps, making it ideal for industrial automation, communication systems, data acquisition modules, and electronic safety interlocks where rapid, reliable transfer is paramount. The high isolation voltage rating of 2500 Vrms addresses rigorous insulation and safety standards in critical environments.

Operating with a supply voltage of up to 5.5V and a maximum forward voltage of 7V, the IL261-3E is versatile and compatible with a range of signal levels commonly encountered in electronic systems. Propagation delay is minimized to just 4 ns, ensuring minimal latency and excellent timing accuracy for synchronous applications.

The device is housed in a standard SOIC package with 16 pins, facilitating straightforward integration with modern PCB designs and surface-mount technology workflows. Its compact dimensions (length 10 mm, width 3.99 mm, depth 1.27 mm) allow flexible placement in space-sensitive device modules.

Designed to withstand extreme environmental conditions, the IL261-3E operates reliably from -55°C to 125°C, supporting industrial deployments and harsh environments. Compliance with IEC and UL standards further assures engineers of its dependable performance and safety profile.

Typical use cases include industrial process control, medical electronics, communication buses, automotive electronics (where isolation but not automotive-specific standards are needed), and advanced laboratory equipment requiring signal integrity and electrical isolation.

Explore NVE's full range of digital isolators and electronics components in the Digital Isolator category at EnvMart for advanced signal protection and integration solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum data rate of the NVE IL261-3E is 110 Mbps, enabling rapid signal transfer for various applications.

The IL261-3E has a high isolation voltage rating of 2500 Vrms, ensuring safety and reliability in critical environments.

This model operates at a supply voltage of up to 5.5V, making it suitable for modern electronic systems.

The dimensions of the IL261-3E are 10 mm in length, 3.99 mm in width, and 1.27 mm in depth.

It supports 5 independent digital isolation channels, allowing for versatile signal management.

The propagation delay time for the IL261-3E is just 4 ns, which minimizes latency for synchronous applications.

The operating temperature range for the IL261-3E is from -55°C to 125°C, ensuring reliability in extreme conditions.

This model is housed in a standard SOIC package with 16 pins, facilitating easy PCB assembly.

The IL261-3E is compliant with IEC and UL standards, ensuring quality and performance in its applications.

The rise time for the IL261-3E is 4 ns, supporting low-latency applications.

The maximum forward voltage for the IL261-3E is 7V, allowing compatibility with a range of signal levels.

Typical applications include industrial process control, medical electronics, communication buses, and automotive electronics where isolation is needed.
