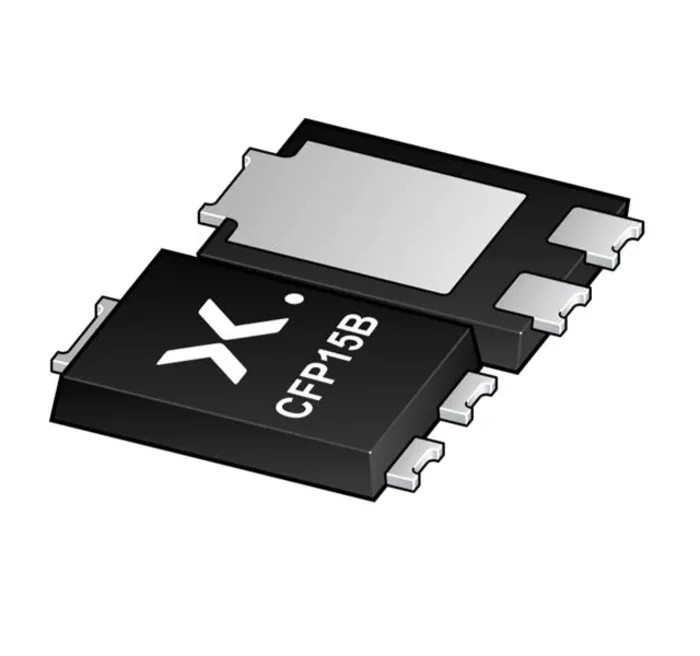

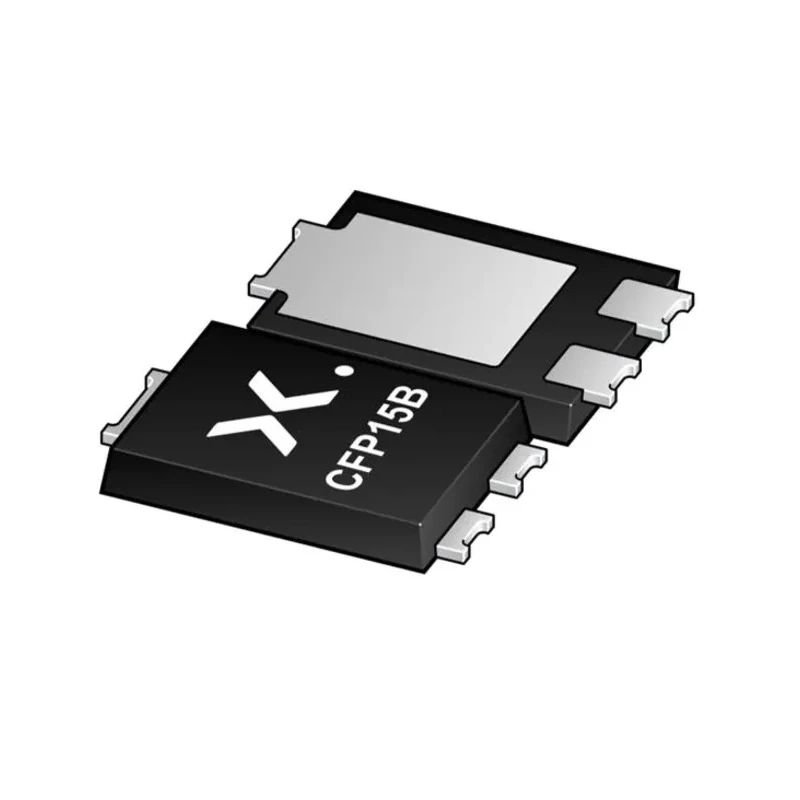

Nexperia 100 V 8 A Schottky Barrier Rectifier, 3-Pin CFP15B, Low Forward Voltage PMEG100T080ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Length | 5.8mm |
| Model | PMEG100T080ELPEZ |
| Width | 4.3mm |
| Mount Type | PCB |
| Series | PMEG100T80ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 19ns |
Key Features
- Low forward voltage drop for high efficiency operation.
- Maximum continuous forward current of 8 A for demanding power applications.
- Peak reverse repetitive voltage rating is 100 V, suitable for robust circuits.
- Compact 3-pin CFP15B surface mount package saves PCB space.
- Wide operating temperature range, from -55°C to 175°C.
- High surge current capability at 170 A for reliable protection.
- Ideal for DC-to-DC conversion, automotive LED lighting, and freewheeling applications.
- AEC-Q101 certified for automotive standards.
Product Description
Nexperia PMEG100T080ELPEZ is a high-performance Schottky barrier rectifier designed for power electronics, featuring a maximum repetitive reverse voltage of 100 V and a continuous forward current rating of 8 A. This device is encapsulated in a CFP15B (SOT1289B) 3-pin surface mount package, offering a compact footprint and excellent thermal performance.
Low forward voltage drop minimizes energy losses and improves efficiency in power conversion circuits. With a peak surge current capability of 170 A, the rectifier handles transient loads without compromise. Wide operating temperature range from -55°C to 175°C supports both industrial and automotive environments.
Maximum forward voltage is 810 mV, and maximum reverse leakage current is just 6 mA for low-loss operation. Peak reverse recovery time of 19 ns enables fast switching in high-frequency circuits. Automotive-grade AEC-Q101 qualification ensures reliability for LED lighting and reverse polarity protection applications.
Small form factor (5.8 x 4.3 x 0.95 mm) facilitates dense PCB layouts and supports modern SMD assembly processes.
Applications include DC-to-DC converters, automotive LED drivers, switch mode power supplies, freewheeling diodes, and reverse polarity protection circuits. The device's clip-bonding technology enhances power capability and robustness, while its low Qrr and low IRM optimize switching performance for industrial and automotive requirements.
This rectifier is suitable for use in industrial equipment, laboratory instrumentation, automotive electronics, and commercial power systems where efficiency and reliability are paramount.
Explore more Schottky Diodes & Rectifiers or browse Nexperia components for reliable, energy-efficient solutions on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 8 A, making it suitable for demanding power applications.
This model has a peak reverse repetitive voltage rating of 100 V, suitable for robust circuits.
It is encapsulated in a compact CFP15B surface mount package, with dimensions of 5.8 mm in length, 4.3 mm in width, and 0.95 mm in height.
The operating temperature range is from -55°C to 175°C, accommodating both industrial and automotive environments.
The rectifier can handle a peak non-repetitive forward surge current of 170 A, providing reliable protection against transient loads.
It is ideal for applications such as DC-to-DC converters, automotive LED drivers, and reverse polarity protection circuits.
The maximum forward voltage drop is 810 mV, which helps minimize energy losses in power conversion circuits.
The peak reverse recovery time is 19 ns, enabling fast switching in high-frequency circuits.
It is AEC-Q101 certified, ensuring compliance with automotive standards for reliability.
This rectifier has a 3-pin configuration, suitable for PCB mounting.
The maximum reverse leakage current is 6 mA, which supports low-loss operation.
It uses a single diode configuration, typical for Schottky barrier rectifiers.
