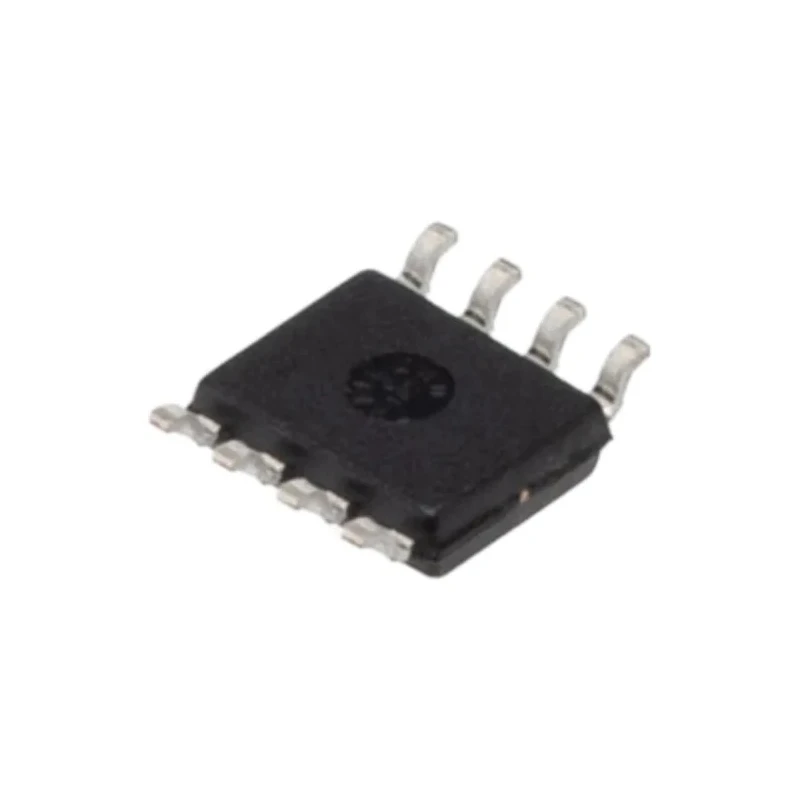

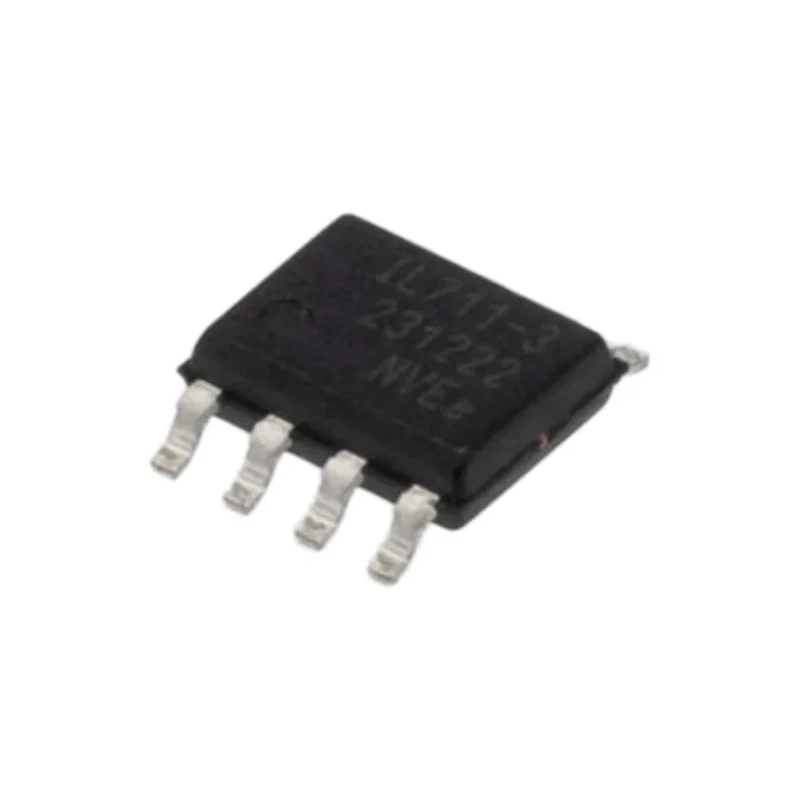

NVE 2-Channel Digital Isolator 110 Mbps, 2.5 kVrms Isolation, 5.5V Supply, 8-Pin SOIC IL711-3E

NVE IL711-3E 2-Channel Digital Isolator is designed for fast and reliable digital signal isolation with a maximum data rate of 110 Mbps and a robust isolation voltage of 2.5 kVrms. Operating at a supply voltage of 5.5V, this component integrates into electronic systems requiring high-speed data transmission with effective electrical isolation.

This device is packaged in an 8-pin SOIC surface mount style package, enabling compact and efficient board layouts. It offers a low maximum forward voltage of 7V and a propagation delay time of 18 ns, making it suitable for applications where timing precision and low power consumption are essential.

The IL711-3E supports 2 independent channels, ensuring flexible signal routing for complex circuits. Its maximum input current is only 15 μA, helping to reduce overall power requirements in electronic designs. The isolator operates reliably within a wide temperature range of -40°C to 125°C, suitable for industrial, automotive, and harsh-environment applications.

Standards compliance includes UL 1577 and IEC ratings, providing confidence in performance and safety for industrial, electronic components, circuit protection, and signal isolation use cases.

Features 2 channels for efficient digital signal isolation. Supports maximum data rate of 110 Mbps for fast digital communication. Provides 2.5 kVrms isolation voltage for superior electrical isolation. Operates at a supply voltage of 5.5V suitable for various electronic applications.

Constructed in an 8-pin SOIC surface mount package for compact PCB integration. Has low maximum forward voltage of 7V to optimize power efficiency. Delivers a propagation delay time of 18 ns for precise signal timing. Maximum input current of 15 μA minimizing power consumption.

Wide operating temperature range from -40°C to 125°C for demanding environments. Complies with UL and IEC standards for quality and safety assurance.

This NVE digital isolator is ideal for applications in electronics manufacturing, industrial automation, signal processing, power electronics, and any circuits requiring high-speed, reliable isolation of digital signals. Its robust construction and standards compliance make it a dependable choice for improving signal integrity and system safety.
