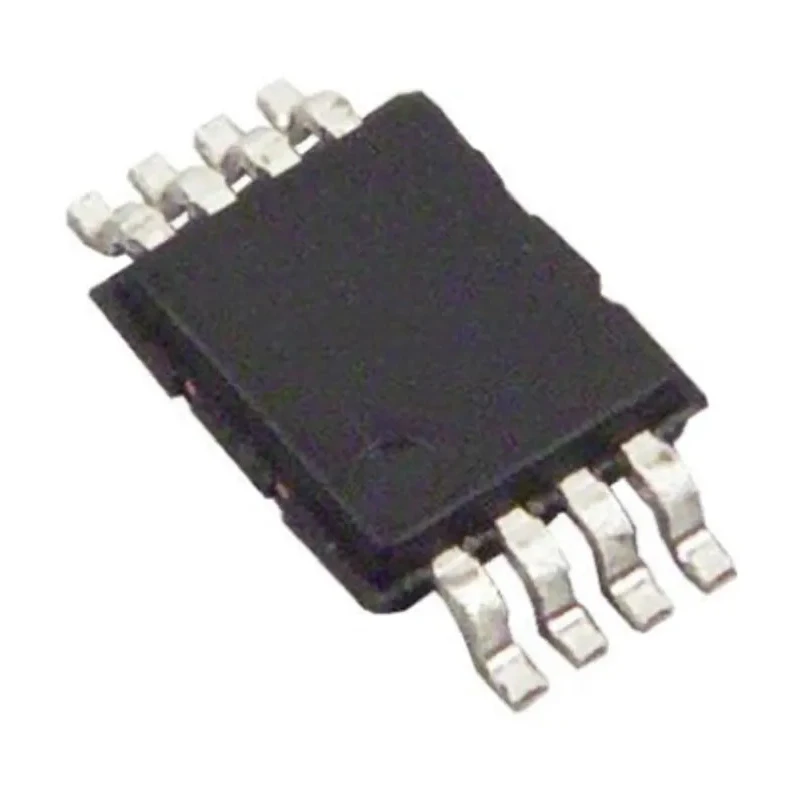

NVE 2-Channel Digital Isolator IL711-1E, 110 Mbps, 2.5 kVrms, 5.5V, 8-Pin MSOP

Free Delivery in India | Lowest Global Shipping Charges

NVE 2-Channel Digital Isolator IL711-1E, 110 Mbps, 2.5 kVrms, 5.5V, 8-Pin MSOP



Category Digital Isolator Brand NVE Condition New

Specifications

Country of Origin	United States
Brand	NVE
Length	3.1mm
Model	IL711-1E
Depth	1.1mm
Width	3.1mm
Mount Type	Surface
Series	IL
Maximum Operating Temperature	125°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Maximum input current	10μA
Number Of Channels	2
Rise Time	4ns
Supply Voltage	5.5V
Standards/Approvals	IEC, UL
Maximum Forward Voltage	7V
Number of Pins	8
Maximum Data Rate	110Mbps
Propagation Delay Time	18ns
Package Style	MSOP

Key Features

Provides two isolated digital channels for secure signal coupling.
Operates with a maximum data rate of 110 Mbps for rapid signal transmission.
High isolation voltage of 2.5 kVrms enhances safety and system reliability.
Supports wide operating temperature range from -40°C to 125°C for diverse environments.
Low propagation delay time of 18 ns ensures minimal signal latency.
Compact 8-Pin MSOP surface-mount package for easy PCB integration.
Supply voltage up to 5.5V facilitates compatibility with standard logic circuits.
UL and IEC standards compliant for assured industrial-grade operation.

Product Description

The NVE IL711-1E is a high-speed 2-channel digital isolator, engineered for applications requiring secure and robust signal isolation between system logic components. Its operating capabilities support a maximum data rate of 110 Mbps with a tested isolation rating of 2.5 kVrms, making it suitable for high-performance industrial, instrumentation, and control systems where electronic safety and data integrity are essential.

This device utilizes advanced isolation technology to transfer digital signals across its two independent channels, helping prevent ground loops and protecting sensitive circuits from electrical noise and high voltages. Designed for reliability, the IL711-1E features a wide operating temperature range of -40°C to 125°C, ensuring stable performance under demanding environmental conditions.

The isolator is housed in a compact 8-Pin MSOP package, ideal for surface-mount assembly in densely populated PCBs. With low propagation delay (18 ns) and fast signal rise time (4 ns), it maintains precise signal timing and minimizes transmission errors.

Its maximum forward voltage of 7V and input current of up to 10 μA provide compatibility with a variety of logic families. The part supports a supply voltage up to 5.5V, catering to standard digital logic circuit requirements.

As part of NVE's IL711 and IL712 series, the IL711-1E meets UL 1577 and IEC safety approvals, confirming its suitability for industrial, laboratory, and instrumentation electronics where rigorous safety and performance are demanded.

Common industrial applications include data acquisition systems, programmable logic controllers, automation networks, medical instrumentation, and isolation in communication interfaces. Its robust design ensures reliable performance for critical signal isolation roles in manufacturing, commercial systems, and laboratory setups.

Explore more Digital Isolator ICs and related industrial solutions from NVE and other leading electronic brands available through EnvMart's Electronics & Electricals portfolio.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The IL711-1E supports a maximum data rate of 110 Mbps, allowing for rapid signal transmission.

It has a high isolation voltage rating of 2.5 kVrms, enhancing safety and reliability in applications.

The operating temperature range for the IL711-1E is from -40°C to 125°C, making it suitable for diverse environments.

This model comes in a compact 8-Pin MSOP surface-mount package, ideal for easy PCB integration.

The IL711-1E features a low propagation delay time of 18 ns, ensuring minimal signal latency.

The dimensions of this model are 3.1 mm in length, 1.1 mm in depth, and 3.1 mm in width.

The maximum input current for this digital isolator is 10 μA, which supports compatibility with various logic families.

It meets UL 1577 and IEC safety approvals, confirming its suitability for industrial-grade applications.

This model provides two isolated digital channels for secure signal coupling.

The rise time for this digital isolator is 4 ns, which helps maintain precise signal timing.

It supports a supply voltage of up to 5.5V, facilitating compatibility with standard logic circuits.

Common applications include data acquisition systems, programmable logic controllers, and medical instrumentation, where signal isolation is critical.
