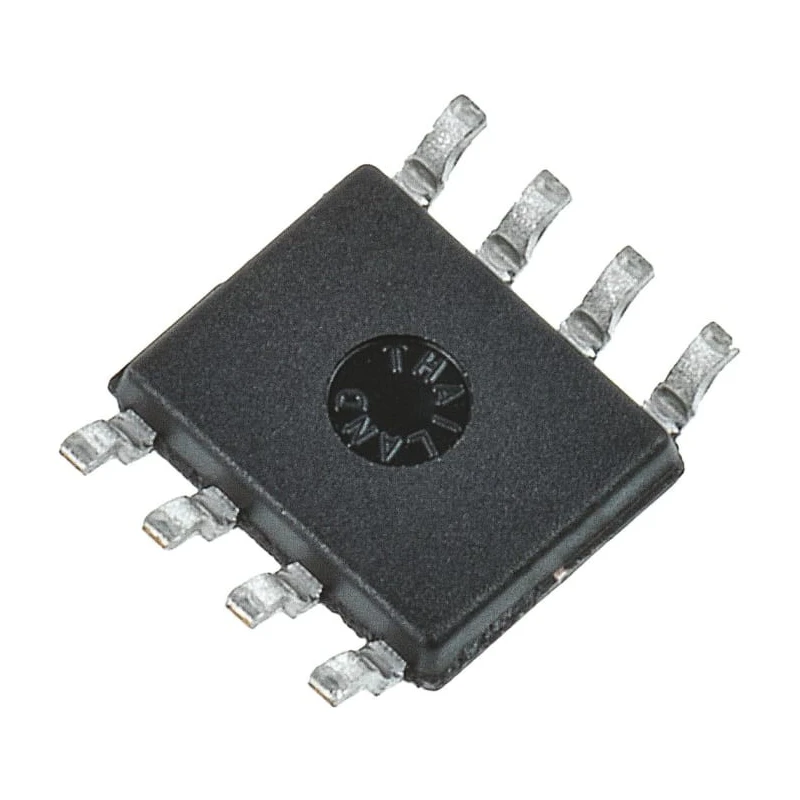

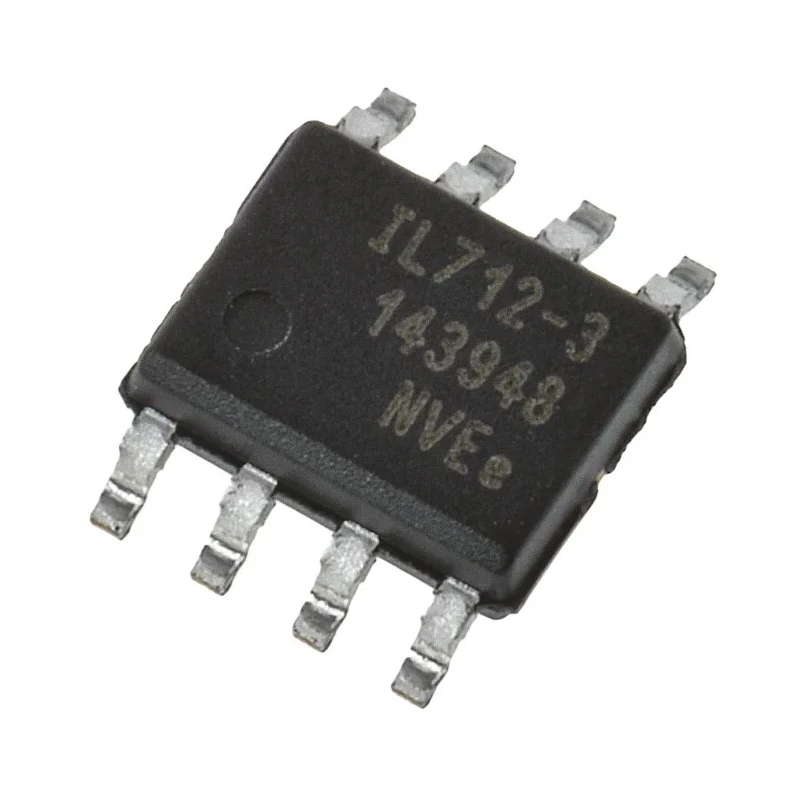

NVE 2-Channel Digital Isolator IL712-3E 110 Mbps, 2.5 kVrms, 5.5V, SOIC-8 Surface Mount

Free Delivery in India | Lowest Global Shipping Charges

NVE 2-Channel Digital Isolator IL712-3E 110 Mbps, 2.5 kVrms, 5.5V, SOIC-8 Surface Mount



Category Digital Isolator Brand NVE Condition New

Specifications

Country of Origin	India
Brand	NVE
Length	5mm
Model	IL712-3E
Depth	6.2mm
Width	1.75mm
Mount Type	Surface
Series	IL
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Maximum input current	3mA
Number Of Channels	2
Rise Time	4ns
Supply Voltage	5.5V
Standards/Approvals	IEC, UL
Maximum Forward Voltage	7V
Number of Pins	8
Maximum Data Rate	110Mbps
Propagation Delay Time	18ns
Package Style	SOIC

Key Features

Provides two channel digital isolation with high data rates of up to 110 Mbps.
Ensures robust isolation voltage of 2.5 kVrms for enhanced safety and signal integrity.
Features a compact 8-pin SOIC surface mount package for space-efficient PCB layout.
Supports 5.5V supply voltage, suitable for modern electronic circuit requirements.
Exhibits low propagation delay time of 18 ns and rise time of 4 ns for fast response.
Operates reliably between -40°C and 125°C, suitable for industrial and commercial applications.
Includes compliance with IEC and UL standards for quality and safety.
Series IL 712-3E is ideal for high-speed, high-temperature digital isolation projects.

Product Description

The NVE IL712-3E is a high-performance 2-channel digital isolator designed for demanding signal isolation applications in electronics and industrial systems. Featuring a maximum data rate of 110 Mbps, this device is engineered to provide rapid transmission performance without compromising reliability.

With its robust isolation voltage of 2.5 kVrms, the IL712-3E ensures safe separation between circuits, helping protect sensitive components and maintain signal integrity. Its compact footprint, available in an 8-pin SOIC surface-mount package (5 mm x 1.75 mm x 6.2 mm), makes it suitable for space-constrained designs and automated PCB assembly.

The isolator operates with a supply voltage of up to 5.5V and can handle propagation delay times as low as 18 ns, making it ideal for fast, responsive electronic systems. Rise time is specified at 4 ns. Maximum input current is 3 mA, suitable for efficient operation and low power consumption. The device supports a wide operating temperature range from -40°C to 125°C, allowing use in various industrial environments.

Compliance with IEC and UL standards underscores the product's quality and suitability for regulated commercial and industrial sectors. Typical use cases include microcontroller interfaces, industrial automation equipment, medical devices, instrumentation, and any situation requiring reliable digital isolation and signal transfer.

The NVE IL712-3E also meets UL 1577 approval, contributing to safety standards in electronic designs. Its series lineage ensures compatibility with other IL711 and IL712 isolators from NVE, making it easy to integrate into legacy or new circuit layouts.

Suitable for assembly lines, laboratory systems, manufacturing controls, and high-speed digital communications, the IL712-3E helps engineers achieve secure, efficient isolation without sacrificing performance.

Explore more industrial isolation and optoelectronic solutions in the Digital Isolator ICs and Electronics Components category at EnvMart, and review other NVE products for advanced signal integrity in your electronic projects.
