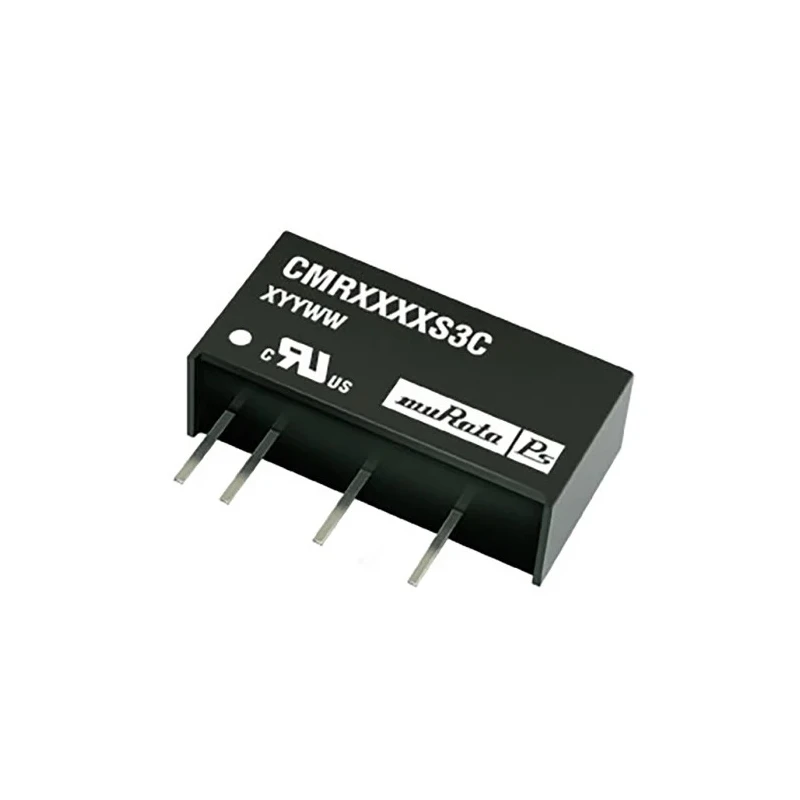

Murata Power Solutions 0.75W Dual Output Isolated DC-DC Converter Through Hole DIP Package CMR0512S3C

Murata Power Solutions CMR0512S3C is a 0.75 watt isolated dual output DC-DC converter designed for use in applications requiring a positive and negative supply voltage with galvanic isolation. Featuring 12V and -12V output voltages with a maximum output current of 31mA, the device supports input voltages from 4.5V to 5.5V DC, making it suitable for low voltage power rails and embedded systems.

This module is housed in a compact DIP through-hole package with 7 pins, offering ease of integration onto printed circuit boards requiring standard pinout and footprint. Its galvanic isolation voltage rating of 3kV DC provides safety and noise immunity in industrial and instrumentation environments.

The CMR series converter delivers efficiency of 78%, ensuring minimal losses and enhanced power performance. It operates reliably within a wide temperature range from -40°C to 85°C, thus accommodating harsh industrial, instrumentation, and automotive ambient conditions. The unit’s compliance with RoHS ensures it meets environmental regulations for hazardous substances.

Thanks to its isolated dual outputs, this converter is ideal for powering analog and digital circuits requiring isolated negative rails from positive DC supplies, useful in instrumentation, industrial control systems, telecommunications, and power supply designs.

Features isolated dual outputs of 12V and -12V DC at 31mA output current. Operates with input voltage range from 4.5V to 5.5V DC. Provides galvanic isolation with 3kV DC isolation voltage. Compact DIP package with through hole mount and 7 pins.

Efficiency rated at 78% ensuring good power conversion performance. Wide operating temperature range from -40°C to 85°C for industrial applications. Maximum output power of 0.75 watts suitable for low power devices. Package dimensions approximately 19.5mm length x 19.5mm width x 10mm depth.

Complies with RoHS standards for environmental safety. Lightweight design with gross weight about 2 grams.

Murata Power Solutions' CMR series DC-DC Converters provide a reliable and compact solution for isolated dual output voltage needs in industrial, laboratory, construction, telecommunications and product design applications. These units are ready for insertion into machinery and devices, improving energy efficiency and circuit isolation.
