Recom 1W SIP7 Single Output Through Hole DC/DC Converter, 15V DC Output, 66mA, 24V DC Input, 4kV Isolation RK-2415S/H6

Free Delivery in India | Lowest Global Shipping Charges

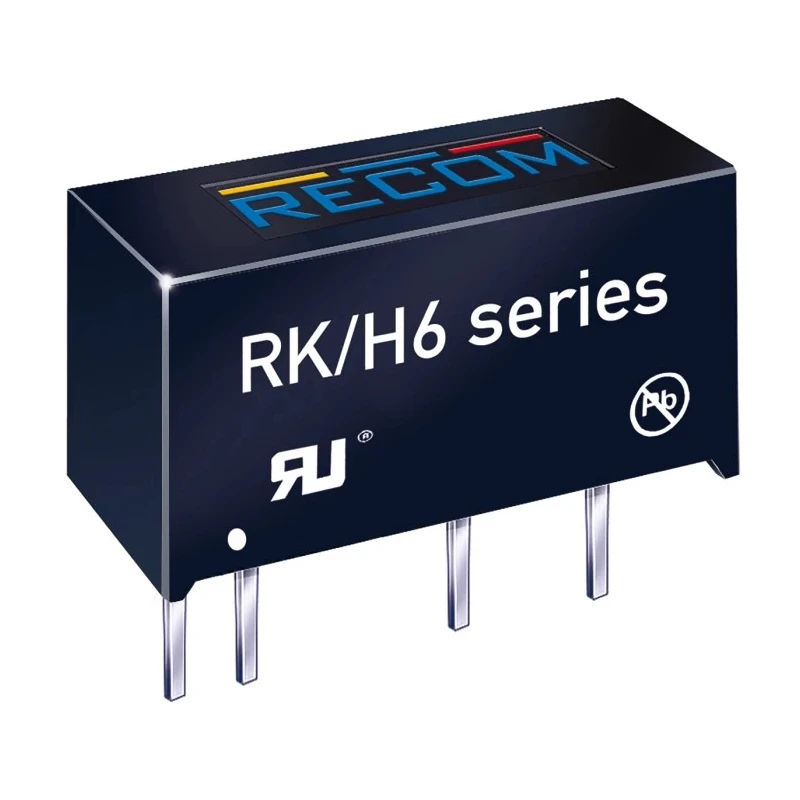

Recom 1W SIP7 Single Output Through Hole DC/DC Converter, 15V DC Output, 66mA, 24V DC Input, 4kV Isolation RK-2415S/H6

Name: Recom 1W SIP7 Single Output Through Hole DC/DC Converter, 15V DC Output, 66mA, 24V DC Input, 4kV Isolation RK-2415S/H6
Brand: Recom
SKU: 136084
Price: 17.65 USD
Availability: InStock



Category DC-DC Converter Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters Recom RK DC/DC Converter, 15V dc/ 66 mA, 24V dc In
Brand	Recom
Efficiency	80%
Length	19.65mm
Model	RK-2415S/H6
Depth	10.2mm
Width	7.05mm
Mount Type	Through Hole
Series	RK
Maximum Operating Temperature	90°C
Package Type	SIP
Minimum Operating Temperature	-40°C
MTBF	14919000h
Number of outputs	1
Maximum Output Power	1W
Maximum Input Voltage	24V dc
Minimum Input Voltage	21.6V
Number of Pins	7
Output Voltage 1	15V dc
Output Current 1	66mA
Isolation Voltage	4kV dc

Key Features

This DC/DC converter provides a regulated 15V DC output at 66mA current.
It accepts input voltages from 21.6V to 24V DC ensuring stable performance.
Features a through hole SIP7 package type with 7 pins for easy PCB mounting.
Offers high isolation voltage of 4kV DC ensuring safety and noise separation.
Operates efficiently with up to 80% efficiency to minimize energy loss.
Wide operating temperature range from -40°C to +90°C without derating.
Built-in short circuit protection and high capacitive load capability ensure reliability.
Compact dimensions of 19.65mm length, 10.2mm depth, and 7.05mm width suit dense electronic assemblies.

Product Description

Recom RK-2415S/H6 is a high-performance 1 watt DC/DC converter designed in SIP7 through-hole package for industrial and high isolation applications. It delivers a stable 15 volt DC output with a current rating of 66 mA and accepts input voltages ranging from 21.6 V to 24 V DC. The device supports up to 4kV DC isolation voltage, providing outstanding electrical separation for sensitive electronics.

This converter operates with an efficiency of 80%, effectively minimizing heat dissipation and power loss in compact circuits. It is rated to operate over an extended temperature range from -40°C up to +90°C without derating, suitable for harsh industrial environments.

The high 6.4 kV DC isolation withstand capability and continuous short circuit protection ensure robust and reliable operation in demanding conditions. The unit's small footprint with 19.65mm length, 10.2mm depth, and 7.05mm width facilitates integration into limited space applications.

Typical uses include industrial power supplies, test and measurement equipment, and high-isolation applications where voltage regulation and low noise are critical. Its encapsulated SIP7 form factor supports easy through-hole mounting on printed circuit boards.

This converter supports 1 output with 15V DC voltage at 66mA continuous current. Input voltage range is from 21.6V to 24V DC with maximum input voltage rating of 24V DC. Withstands up to 4kV DC isolation voltage, enhancing safety and noise rejection.

Operating temperature from -40°C to +90°C supports diverse industrial environments. Package type SIP7 through-hole with 7 pins is compatible with standard PCB mounting. Features an efficient 80% conversion efficiency to reduce energy waste.

Recom RK-2415S/H6 DC/DC converters are manufactured in Taiwan, Province Of China and adhere to strict quality standards. This product is ideal for power supply designs requiring reliable, isolated DC voltage conversion in industrial, laboratory, electronics manufacturing, and telecommunications applications.
