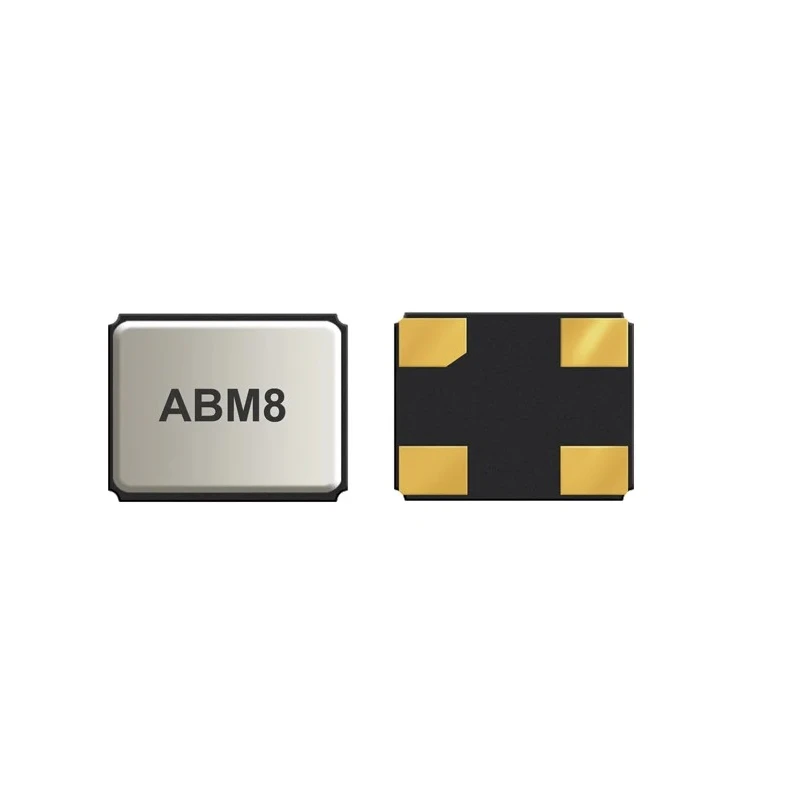

Abracon 20 MHz Crystal Unit ±10 ppm Frequency Tolerance Surface Mount 4-Pin ABM8-20.000MHz-12-D1X-T

Abracon ABM8-20.000MHz-12-D1X-T is a high precision 20 MHz crystal unit designed for surface mount applications requiring stable frequency control with a tolerance of ±10 ppm. Its extremely low profile with a height of 0.8 mm makes it suitable for compact and thin equipment assemblies.

This crystal unit features a load capacitance of 12 pF and operates reliably between temperatures of -40°C and 85°C. The device has a frequency stability of ±20 ppm ensuring consistent operation in high density electronic circuits such as modems, communication devices, and wireless applications.

The package is sealed to prevent environmental contamination and increase reliability over time. With a 4-pin surface mount configuration and physical dimensions of 3.2 mm in length and 2.5 mm in width, it fits standard PCB designs requiring minimal space.

This component complies with RoHS standards, confirming it is free from hazardous substances, suitable for environmentally-conscious manufacturing practices. The crystal unit operates at a standard frequency of 20 MHz with tight tolerance.

Compact surface mount package dimensions: 3.2 mm x 2.5 mm x 0.8 mm. Operating temperature range from -40°C to 85°C. RoHS compliant for environmental safety. Frequency stability at ±20 ppm ensuring precision. Load capacitance specified at 12 pF.

4 pin count for reliable surface mount connections. Seam sealed package assures high reliability.

This crystal unit is ideal for critical applications in communication equipment, test equipment, wireless devices, and PCMCIA applications, enabling high density and stable frequency functions.
