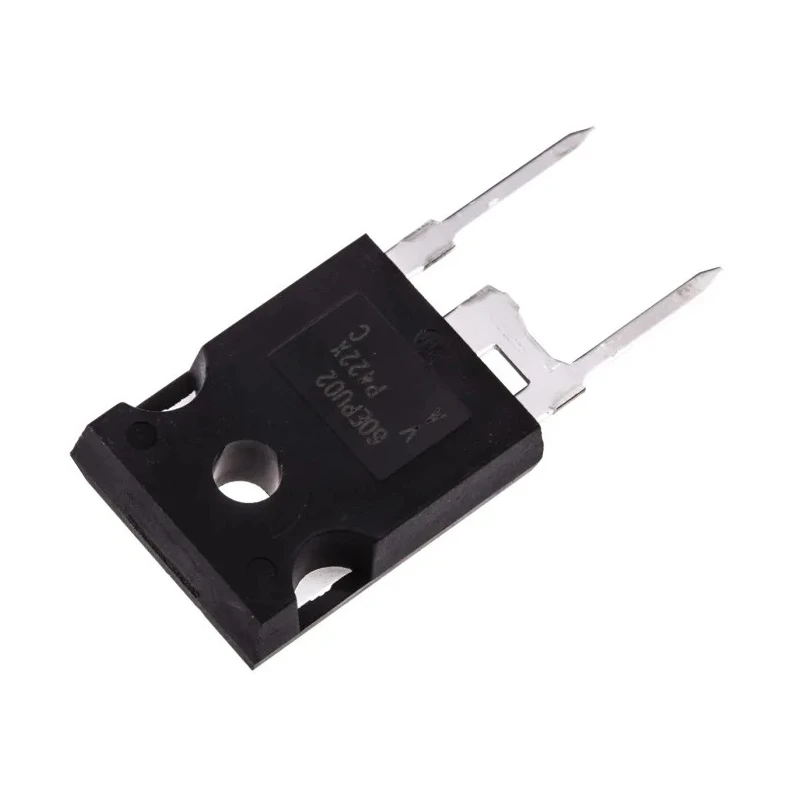

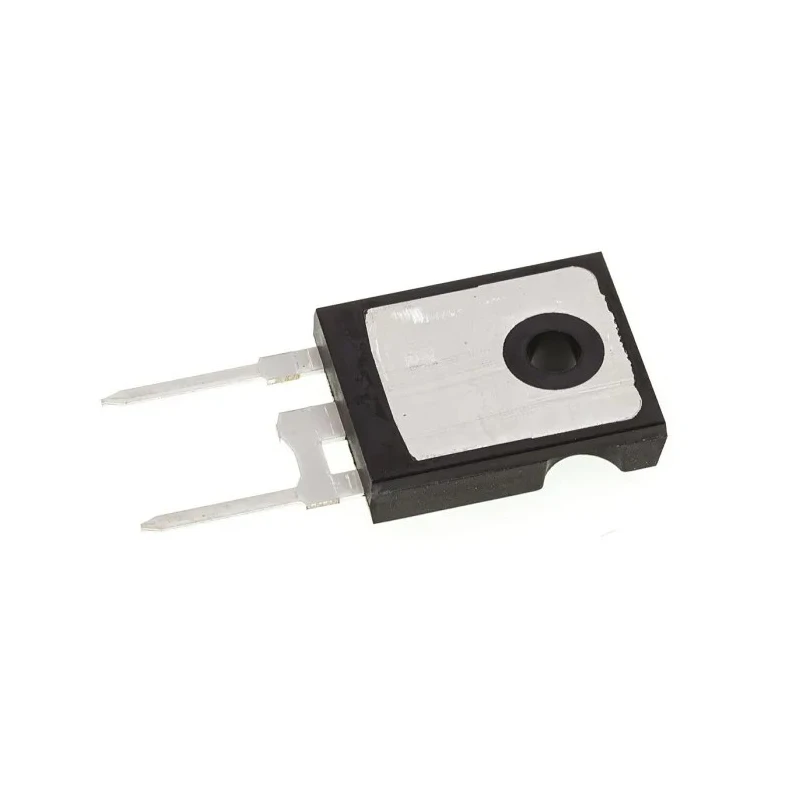

Vishay Switching Diode 200V 60A TO-247 Package 2-Pin Ultrafast Recovery VS-60EPU02-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.9mm |
| Model | VS-60EPU02-N3 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | VS-60EPU02-N3 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 800A |
| Maximum Forward Voltage Vf | 1.08V |
| Peak Reverse Recovery Time trr | 35ns |
| Vishay 60A, Silicon Junction Diode, 3-Pin TO-247AC 60EPU02Brand | Vishay |
Key Features
- Engineered for high performance switching in power electronic applications.
- Provides a maximum forward current of 60A and peak repetitive reverse voltage of 200V.
- Ultrafast recovery technology (FRED Pt®) delivers rapid response times for demanding circuits.
- Through-hole mounting simplifies integration on high-power PCBs and modules.
- Features robust TO-247 plastic encapsulated package for reliable thermal management.
- Supports peak non-repetitive forward surge currents up to 800A, ideal for transient events.
- Low forward voltage drop (1.08V max) enhances efficiency in rectification and switching.
- Operates across wide temperature range from -55°C to 175°C for industrial reliability.
Product Description
The Vishay VS-60EPU02-N3 is a high-performance switching diode designed for power and industrial electronics where fast recovery times, high voltage capability, and robust current handling are critical. Housed in a TO-247 package with 2-pin configuration, this rectifier is engineered using FRED Pt® ultrafast recovery technology, providing efficient performance for demanding applications such as power supplies, motor drives, inverters, and industrial automation.
With a maximum continuous forward current rating of 60A and a peak repetitive reverse voltage of 200V, the VS-60EPU02-N3 ensures secure operation under high load and voltage conditions. The diode supports a peak non-repetitive forward surge current of 800A, safeguarding circuits against transient spikes and overloads.
Its ultrafast recovery time of 35ns and low forward voltage drop of just 1.08V contribute to high switching efficiency and reduced energy losses, making it suitable for advanced rectification in switching power supplies and high-frequency circuits. The TO-247 package offers reliable thermal management thanks to its plastic encapsulation and industry-standard dimensions (Height: 20.7mm, Length: 15.9mm, Width: 5.3mm), facilitating easy integration into PCB layouts.
Designed for through-hole mounting, the device is favored in manufacturing settings requiring secure soldering and high-current tracks. It operates reliably over an extended ambient temperature range from -55°C up to 175°C, suitable for harsh environments in industrial facilities, laboratories, and commercial installations.
Additional features include a single diode configuration for straightforward electrical design, a peak reverse recovery time of 35ns, and RoHS-compliance for environmentally responsible installations. Its versatility encompasses power rectification, switching regulator circuits, high-frequency conversion, and protection against reverse polarity in DC circuits.
Typical use cases include industrial control systems, construction machinery, manufacturing, laboratory power equipment, and commercial electronic installations. The diode’s automotive standard is not certified, keeping it focused on general industrial and electronics applications.
Browse more Vishay switching diodes and Schottky Diodes in the semiconductor category for your application requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 60A.
It supports a peak repetitive reverse voltage of 200V.
The peak reverse recovery time is 35ns, which contributes to its ultrafast recovery capabilities.
The dimensions of the TO-247 package are 20.7mm in height, 15.9mm in length, and 5.3mm in width.
The maximum forward voltage drop is 1.08V.
This model is designed for through-hole mounting, facilitating secure soldering on PCBs.
It can handle a peak non-repetitive forward surge current of up to 800A.
The diode operates reliably over a temperature range from -55°C to 175°C.
It uses a single diode configuration, simplifying electrical design.
Yes, it is RoHS compliant, ensuring environmentally responsible installations.
It is suitable for applications such as power supplies, motor drives, inverters, and industrial automation.
The peak reverse current is rated at 50μA.
