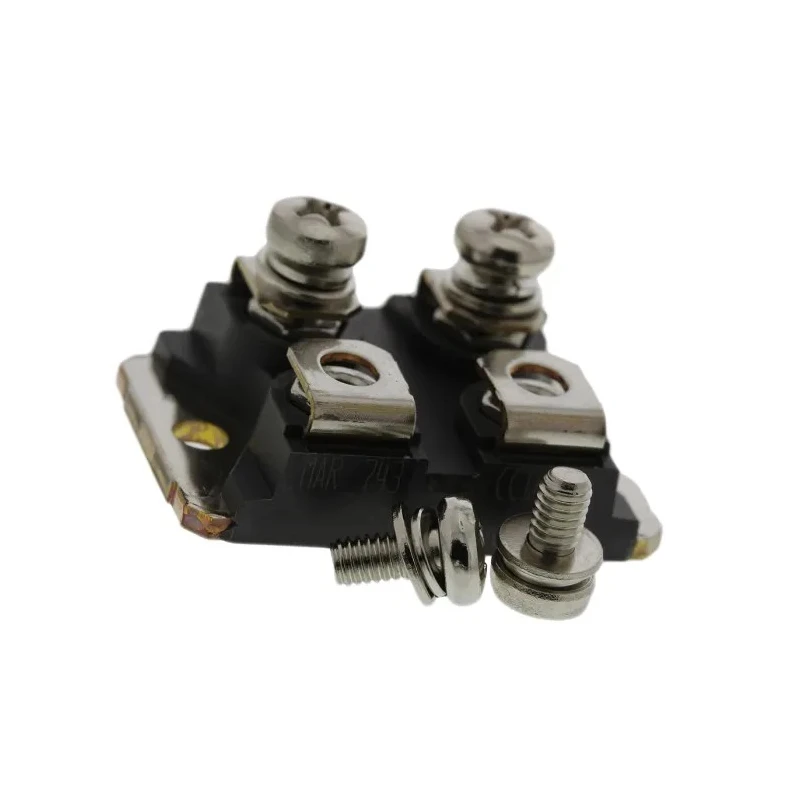

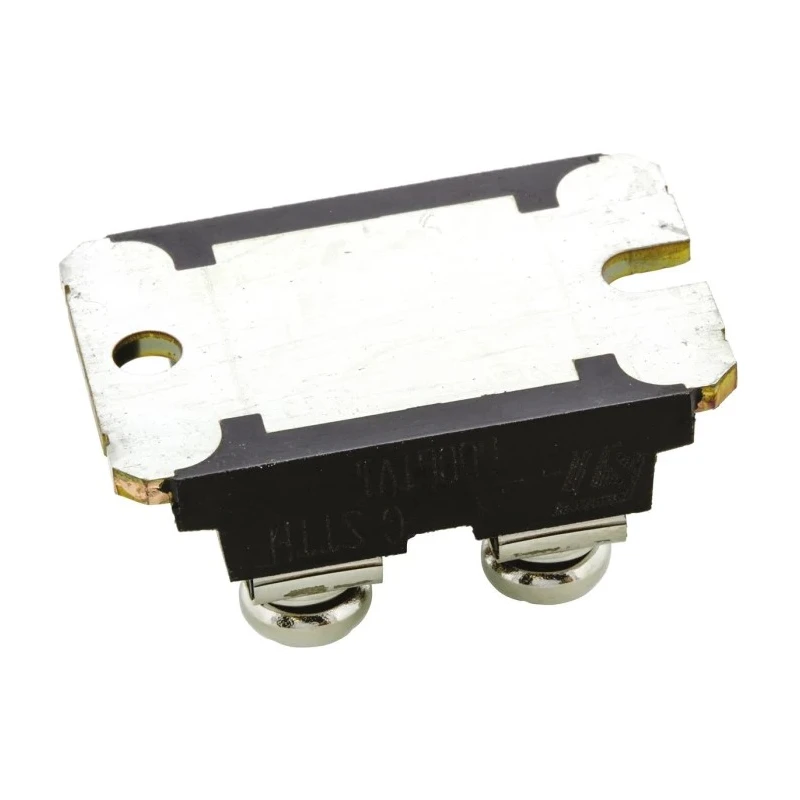

STMicroelectronics Switching Diode 600 V 30 A ISOTOP 4-Pin Panel Mount STTH6006TV1

The STMicroelectronics STTH6006TV1 is a high-performance switching diode designed for electronic and industrial power conversion systems. Built with a 600 V maximum peak reverse repetitive voltage and a continuous forward current capability of up to 30 A, this diode is ideal for demanding applications such as switched-mode power supplies, inverters, and high-efficiency rectification circuits.

This model features a fast reverse recovery time of 70 ns, providing superior switching speeds, improving system efficiency, and reducing power loss. With an ISOTOP 4-pin package, the diode offers excellent thermal management and enables straightforward panel mounting. It operates reliably within a broad temperature envelope from -55°C to 150°C, making it suitable for use in a range of commercial and industrial environments.

The device supports a peak non-repetitive forward surge current of 210 A and maintains low reverse leakage with a peak reverse current of just 25 μA. Its isolated configuration enhances safety and integration flexibility in complex electronic designs. The diode also features a maximum forward voltage of 1.85 V and is RoHS compliant, ensuring environmental safety for modern electronic assembly standards.

Engineers and integrators benefit from its robust package dimensions: 38.2 mm length, 25.5 mm width, and 9.1 mm height, allowing for effective heat dissipation and dense electronic layouts. Typical use cases include industrial power supplies, rectifier bridges, high-power DC-DC converters, and motor drives, where reliability and fast switching are paramount.

This switching diode is a proven choice for manufacturing lines, automated process control applications, renewable energy inverters, and any electronic circuit where high-voltage isolation and high current handling are required. It is not only backed by STMicroelectronics' commitment to quality but also ensures long service life and minimal maintenance in critical systems.

Operates at a maximum forward current of 30 A, suitable for high power applications. Peak reverse repetitive voltage up to 600 V ensures safe performance in challenging environments. Integrated in a robust ISOTOP 4-pin package for easy panel mounting and heat management.

Fast reverse recovery time of 70 ns supports high-speed switching in industrial circuits. Wide operating temperature range from -55°C to 150°C for enhanced durability. Peak non-repetitive forward surge current of 210 A for handling pulse loads.

Complies with RoHS standards for environmental safety. Browse more Schottky Diodes, rectifiers, and STMicroelectronics products in the EnvMart semiconductor catalogue to find the right solution for your applications.
