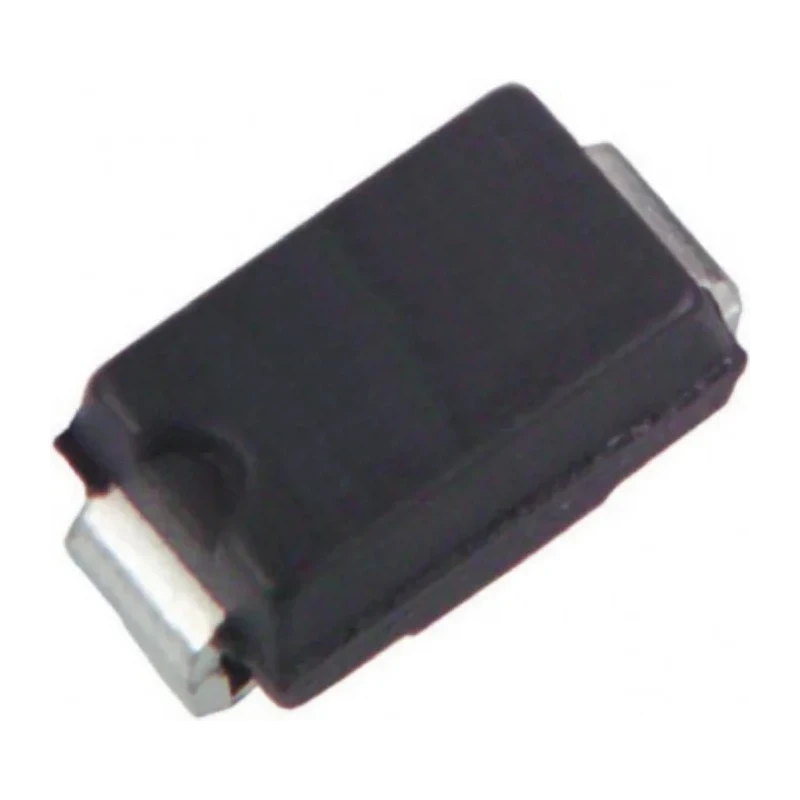

Taiwan Semiconductor 1 kV 1.5 A Switching Single Diode 2-Pin Sub SMA S1ML R2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1.43mm |
| Length | 2.9mm |
| Model | S1ML R2 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | S1ML |
| Maximum Operating Temperature | 150°C |
| Package Type | Sub SMA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 1.8μs |
Key Features
- Surface mount device with a Sub SMA package type provides compact assembly.
- Maximum forward voltage is 1.1 V ensuring efficient conduction.
- Peak non-repetitive forward surge current rating at 30 A supports transient conditions.
- Operating temperature ranges from -55°C up to 150°C allowing wide environmental use.
- Automotive standard AEC-Q101 compliant ensuring high reliability in automotive applications.
- Pin count of 2 suitable for simple circuit integration.
- Peak reverse current of 5 μA minimizes leakage currents.
- Fast recovery time of 1.8 μs enhances switching performance.
Product Description
Taiwan Semiconductor S1ML R2 is a switching diode designed as a surface mount device with a Sub SMA package, capable of handling a maximum forward current of 1.5 A and peak reverse repetitive voltage of 1 kV. It features a single diode configuration with two pins, optimized for efficient and reliable switching operations in electronic circuits.
This diode exhibits a maximum forward voltage of 1.1 V and peak non-repetitive forward surge current of 30 A, making it suitable to withstand transient surges. It operates reliably in a broad temperature range from -55°C to 150°C, meeting automotive grade AEC-Q101 standards which guarantees suitability for automotive electronics applications.
The device dimensions are compact at 2.9 mm in length, 1.9 mm width, and 1.43 mm height, providing ease of integration into PCB layouts where space is limited. Its low peak reverse current of 5 μA and fast reverse recovery time of 1.8 μs allow for efficient switching and reduced power losses.
This switching diode is ideal for use in various industrial, electronic manufacturing, automation systems, and automotive sectors, offering high reliability and performance in power management and signal switching applications.
Surface mount device with compact Sub SMA package. 1.5 A maximum continuous forward current enhances power handling. 1 kV peak reverse repetitive voltage for robust voltage blocking. Automotive grade AEC-Q101 certified for high quality suitabililty.
Wide operating temperature range (-55°C to 150°C). Low leakage current and fast switching capability. Compact physical dimensions for space efficient design. High surge current tolerance of 30 A. Single diode, 2-pin configuration.
For more semiconductor and diode solutions, explore the Electronics & Electricals category at EnvMart for high-quality components tailored for your projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1.5 A.
The peak reverse repetitive voltage rating is 1 kV.
This model has dimensions of 2.9 mm in length, 1.9 mm in width, and 1.43 mm in height.
The operating temperature range is from -55°C to 150°C.
Yes, it is compliant with the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
The maximum forward voltage is 1.1 V, which ensures efficient conduction.
The peak non-repetitive forward surge current rating is 30 A.
The peak reverse current is 5 μA, which minimizes leakage currents.
It uses a Sub SMA package type, which allows for compact assembly.
The peak reverse recovery time is 1.8 μs, enhancing its switching performance.
This diode has a pin count of 2, suitable for simple circuit integration.
It features a single diode configuration, optimized for efficient switching operations.
