STMicroelectronics 5 Outputs Buck Converter Surface Mount 0.8V Output Voltage 3A Output Current ST1S10PHR

Free Delivery in India | Lowest Global Shipping Charges

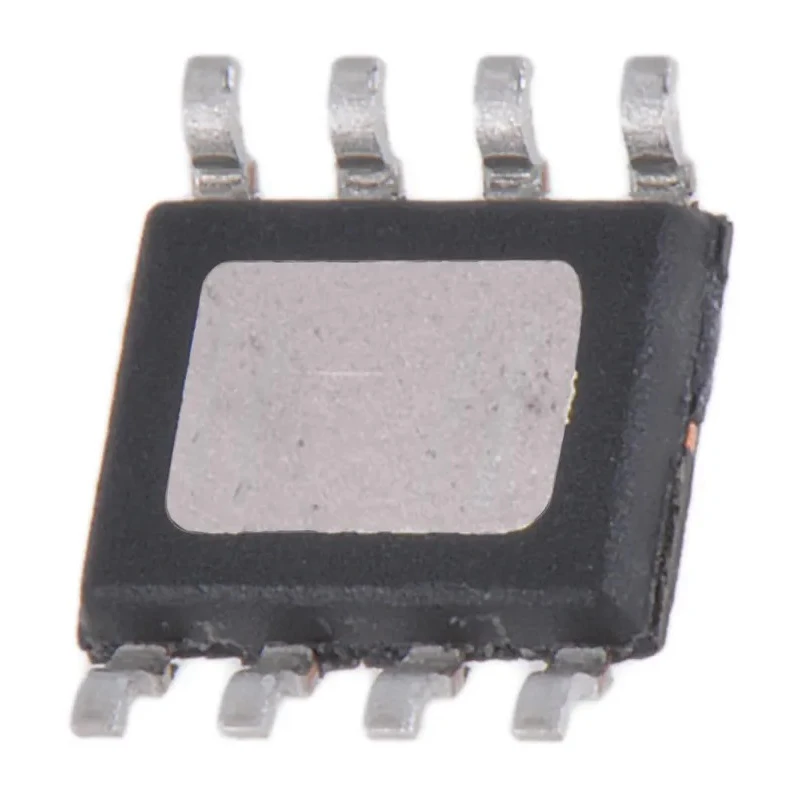

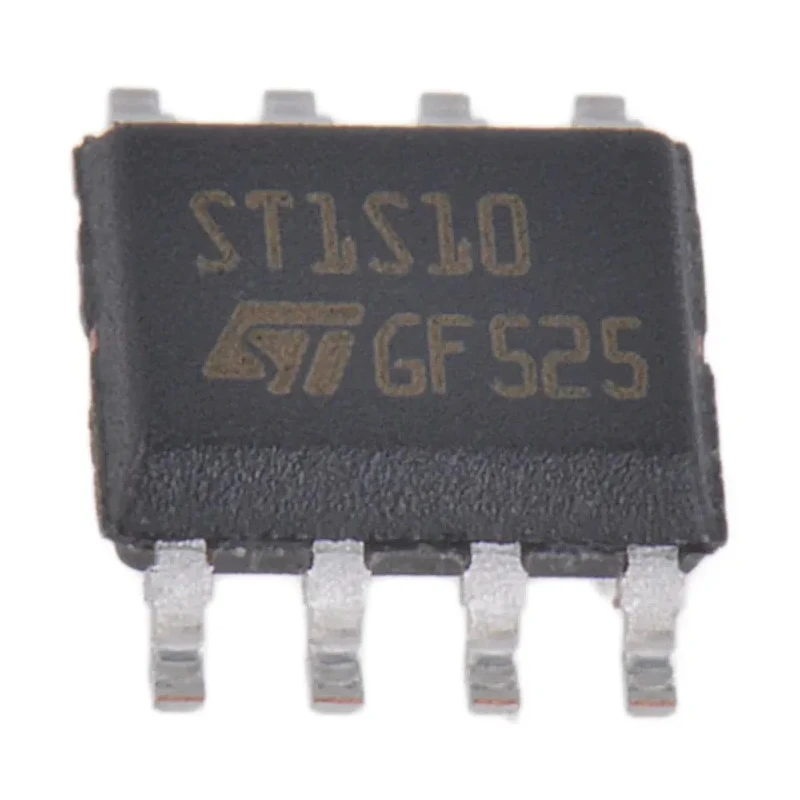

STMicroelectronics 5 Outputs Buck Converter Surface Mount 0.8V Output Voltage 3A Output Current ST1S10PHR

Name: STMicroelectronics 5 Outputs Buck Converter Surface Mount 0.8V Output Voltage 3A Output Current ST1S10PHR
Brand: STMicroelectronics
SKU: 135463
Price: 2.16 USD
Availability: InStock



Category DC-DC Converter Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Efficiency	90%
Length	5mm
Model	ST1S10PHR
Depth	1mm
Width	4mm
Mount Type	Surface
Series	ST1S10
Output Current	3A
Maximum Operating Temperature	125°C
Package Type	PowerSO
Load Regulation	0.5 %/V
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Input Voltage	18V
Line Regulation	0.4 %/V
Standards/Approvals	RoHS
Minimum Input Voltage	2.5V
Number of Pins	8
Output Voltage 1	0.8V

Key Features

Surface mount package suitable for compact PCB designs.
Delivers a stable output voltage of 0.8V and output current up to 3A.
Features 5 outputs with 8 pins for versatile power distribution.
Supports a wide input voltage range from 2.5V to 18V for flexibility.
Offers high efficiency of 90% reducing power losses and heat generation.
Operates reliably within a temperature range from -40°C to 125°C.
Includes PowerSO package type with dimensions 5mm length, 4mm width, and 1mm depth.
Line and load regulation are tightly controlled at 0.4 %/V and 0.5 %/V respectively.

Product Description

STMicroelectronics ST1S10PHR is a high-performance 5 Outputs Buck Converter designed for efficient DC-DC switching voltage regulation in electronic devices. This surface mount device operates with an output voltage of 0.8V and can handle an output current of up to 3A, making it suitable for compact power management solutions in industrial, commercial, and embedded systems.

Built using a monolithic design and housed in a compact PowerSO package, the ST1S10PHR ensures minimal footprint on the PCB. Its wide input voltage range from 2.5V to 18V allows use in diverse power supply scenarios. The device achieves an efficiency level of 90%, reducing thermal dissipation and improving energy savings.

With 5 outputs and 8 pins, it supports flexible power distribution and highly regulated line and load conditions, maintaining line regulation at 0.4 %/V and load regulation at 0.5 %/V. It operates reliably across a broad temperature spectrum from -40°C to 125°C, suitable for harsh environments.

The device's compact dimensions (5mm length, 4mm width, and 1mm depth) in the PowerSO package type facilitate easy integration into tight spaces on PCBs used in industrial control systems, consumer electronics, and telecommunications equipment. Compliance with RoHS standards assures safe and environmentally friendly usage.

This buck converter is widely utilized in industrial, laboratory, manufacturing, and HVAC systems that require compact, efficient power conversion. Surface mount package suitable for compact PCB designs. Delivers a stable output voltage of 0.8V and output current up to 3A.

Features 5 outputs with 8 pins for versatile power distribution. Supports a wide input voltage range from 2.5V to 18V for flexibility. Offers high efficiency of 90% reducing power losses and heat generation. Operates reliably within a temperature range from -40°C to 125°C.

Includes PowerSO package type with dimensions 5mm length, 4mm width, and 1mm depth. Line and load regulation are tightly controlled at 0.4 %/V and 0.5 %/V respectively. Complies with RoHS standards ensuring environmental safety.

Explore more voltage converters and switching regulators at EnvMart for your electronic design and manufacturing needs.
