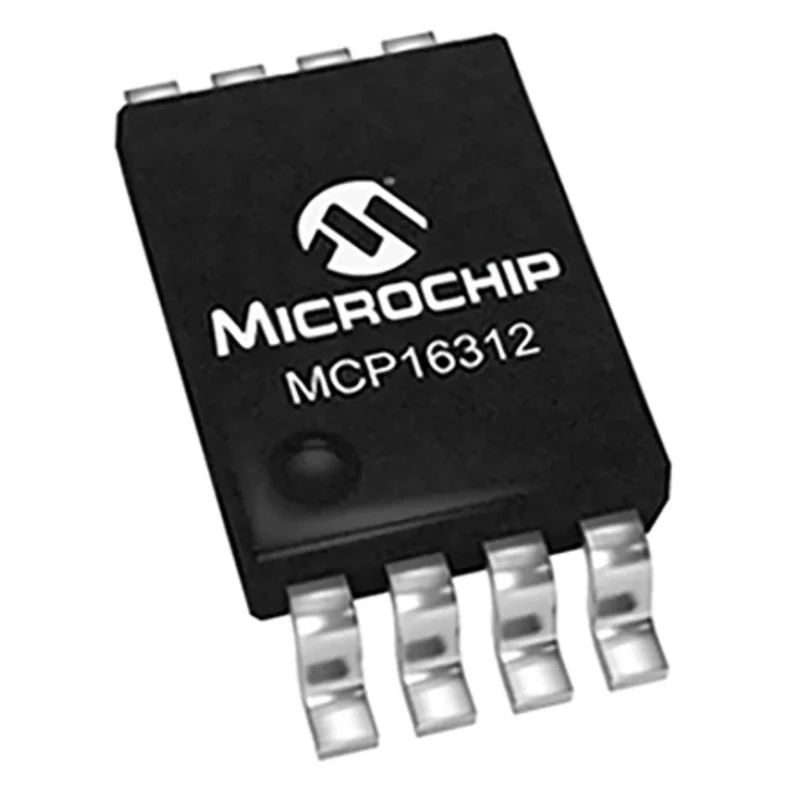

Microchip Adjustable Output Synchronous Buck Converter 4.4-30V Input, 24V Output, 1A, 500kHz PWM MCP16312-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Microchip Buck Converter, Surface, 24V Output |
| Brand | Microchip |
| Efficiency | 95% |
| Length | 3mm |
| Model | MCP16312-E/MS |
| Depth | 1.1mm |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP16312 |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Input Voltage Range | 4.4V to 30V |
| Load Regulation | 0.25 % |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 30V |
| Line Regulation | 0.15 %/V |
| Output Voltage Range | 2.0V to 24V |
| Standards/Approvals | EIA/JESD51-3, RoHS, ISO 9001 |
| Minimum Input Voltage | 4.4V |
| Number of Pins | 8 |
| Output Voltage 1 | 24V |
| Qualification | AEC-Q100 Rev. G, Grade 1 (-40°C to 125°C) |
| Low Device Shutdown Current | 3 μA typical |
| Stable Reference Voltage | 0.8V |
| Low Device Quiescent Current | 44 μA (non-switching, PFM Mode) |
| Internal Soft-Start | 300 μs (EN low-to-high) |
| PWM Operation | 500 kHz |
Key Features
- Operates over a wide input voltage range from 4.4V to 30V.
- Adjustable output voltage range between 2.0V and 24V for flexible power regulation.
- Surface mount MSOP package with 8 pins for compact PCB design integration.
- High switching frequency PWM operation at 500 kHz enables small external component sizes.
- Incorporates internal compensation, soft-start, and peak current mode control for stable performance.
- Includes built-in over-temperature protection and under-voltage lockout for safety.
- Low shutdown current of 3 μA and low quiescent current of 44 μA to minimize power loss.
- Qualified to automotive AEC-Q100 Grade 1, suitable for industrial and automotive applications.
Product Description
Microchip MCP16312-E/MS is a synchronous step-down DC-DC buck converter designed for efficient power regulation in electronic circuits. It integrates a high-side and low-side N-channel MOSFET switches, operates with fixed frequency peak current mode control at 500 kHz, and supports an input voltage range from 4.4V up to 30V. The device provides an adjustable output voltage spanning 2.0V to 24V with a maximum continuous output current of 1A, achieving efficiency of up to 95%.
The MSOP package and surface-mount mounting type offer a compact footprint with 3mm x 3mm x 1.1mm dimensions and 8 pins, suitable for densely packed PCB layouts in industrial, automotive, and consumer electronics.
Internal features include soft-start (300 μs), internal compensation circuitry, peak current limiting, under-voltage lockout, and over-temperature protection to ensure robust and reliable operation. Low device shutdown and quiescent currents help reduce battery drain in portable or low-power systems.
The buck converter complies with EIA/JESD51-3, RoHS standards, and ISO 9001 manufacturing quality. It is qualified to AEC-Q100 Rev. G Grade 1 standards, supporting demanding automotive industry requirements for temperature and reliability.
Operates efficiently over a broad 4.4V to 30V input voltage range. Adjustable output voltage from 2.0V to 24V with 1A output capability. Fixed 500 kHz PWM switching frequency for minimized external components. Compact MSOP surface mount package measuring 3x3x1.1 mm with 8 pins.
Low shutdown and quiescent current reduce power consumption. Internal over-temperature shutdown and under-voltage lockout protections. Automotive-grade qualification with wide operating temperature range (-40°C to 125°C).
Compliant with RoHS and ISO 9001 quality standards.
This product is ideal for power supply circuits in industrial electronics, automotive systems, consumer devices, and any application requiring precise and efficient DC-DC voltage step-down conversion. Microchip's MCP16312-E/MS enhances power efficiency, size reduction, and system reliability.
