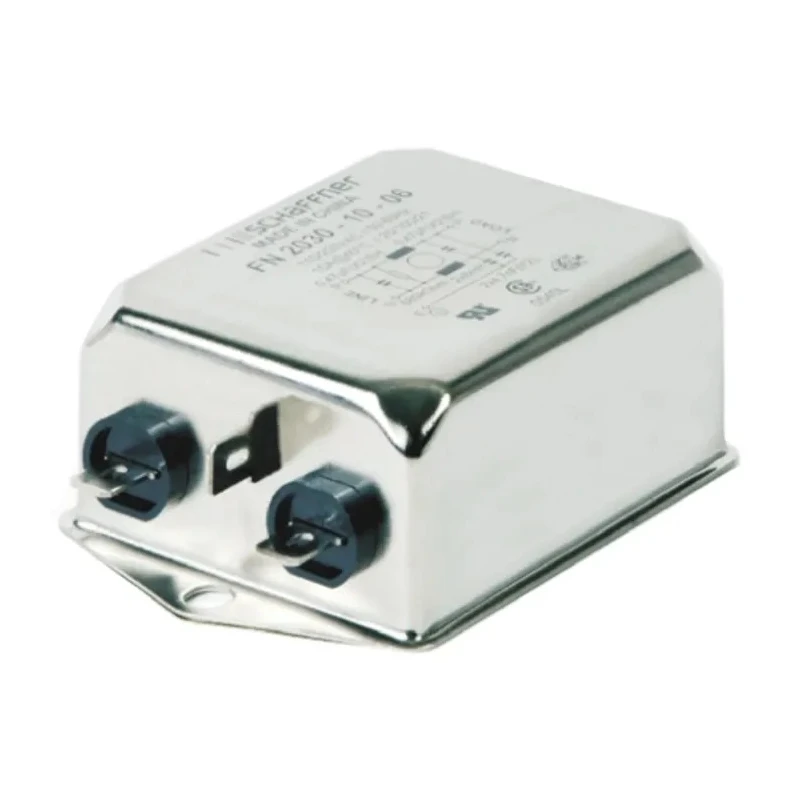

Schaffner Chassis Mount EMI Filter 10 A 250V ac/dc 60Hz Fast-On 1 Phase FN2030
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 30.3mm |
| Length | 54mm |
| Model | FN2030 |
| Depth | 85mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN2030 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 10A |
| Number of Phases | 1 |
| Maximum Voltage | 250V ac/dc |
| Termination Style | Fast-On |
| Power Loss | 5.3W |
Key Features
- Provides high differential mode attenuation for EMI reduction.
- Constructed for easy and fast chassis mounting.
- Suitable for electrical and electronic equipment including consumer and medical devices.
- Operates reliably between -25°C and 100°C.
- Compact dimensions of 54mm length, 30.3mm height, and 85mm depth.
- Power loss of 5.3W ensures efficient performance.
- Single stage filter design optimized for noise suppression.
- Optional versions offer enhanced safety and surge pulse protection.
Product Description
Schaffner FN2030 chassis mount EMI filter is a premium solution for mitigating electromagnetic interference in one-phase electrical systems. Engineered for operation at 10 A and 250V ac/dc with a frequency of 60Hz, this filter features a fast-on termination style enabling quick and secure connections. Designed specifically for chassis mounting, its compact form factor with dimensions of 54mm length, 30.3mm height, and 85mm depth facilitates easy integration in tight spaces.
This EMI filter is constructed with high permeable core chokes providing superior attenuation characteristics and excellent thermal management. It operates effectively within a temperature range from -25°C to 100°C, ensuring stable performance in diverse industrial, laboratory, medical, and consumer electronics applications.
The FN2030 series offers high differential mode attenuation and is suitable for filtering conducted noise in devices such as electronic data processing equipment, household appliances, medical equipment, and other noisy environments that demand reliable EMI suppression. The single stage design allows for efficient noise reduction with minimal power loss of 5.3 watts, aiding energy efficiency.
Optional medical (B type) and safety (A type) versions are available to meet specific industry standards, along with surge pulse protection options to safeguard sensitive electronics. The filter complies with stringent international standards including UL 1283, CSA 22.2 No.8 1986, EN 133 200, and IEC 60939, underscoring its quality and reliability.
High performance filter attenuation ensures cleaner power supply and reduced EMI interference. Fast-on terminations enable convenient installation and maintenance. Compact chassis mount design supports versatile use in industrial and commercial equipment.
Stable operation over a wide temperature range from -25°C to 100°C. Low power loss contributes to overall system efficiency. Multiple configurations available for specialized over-voltage and medical applications. Ideal for use in electrical, electronic, household, medical, and data processing applications requiring EMI control.
Schaffner FN2030 EMI filters are recognized in the Electronics Components industry for their durability and performance. For comprehensive EMI solutions, explore further products in our EMI Filter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this EMI filter is 10A.
It supports a maximum voltage of 250V ac/dc.
The operating frequency is 60Hz.
The dimensions are 54mm in length, 30.3mm in height, and 85mm in depth.
The power loss is 5.3W, ensuring efficient performance.
It operates reliably between -25°C and 100°C.
This model is designed for chassis mounting.
It features a Fast-On termination style for quick and secure connections.
It has a single stage design optimized for noise suppression.
It is suitable for electrical and electronic equipment including consumer and medical devices.
It complies with UL 1283, CSA 22.2 No.8 1986, EN 133 200, and IEC 60939 standards.
Yes, optional versions offer enhanced safety and surge pulse protection.
