Schneider Electric Modular Safety Input Module 16 Inputs 4 Outputs DIN Rail 24V DC 3W XPSMCMDI1600

The Schneider Electric XPSMCMDI1600 Modular Safety Input Module is engineered for advanced industrial safety and automation, providing a robust solution for monitoring and controlling machine safety functions. With 16 isolated digital inputs and 4 PNP test outputs, this module suits applications such as emergency stop, guard monitoring, perimeter safety, position monitoring, speed control, and movement enablement. Designed for seamless integration with the Preventa Modular Safety Controller system, it uses a backplane expansion connector for communication and modular scalability.

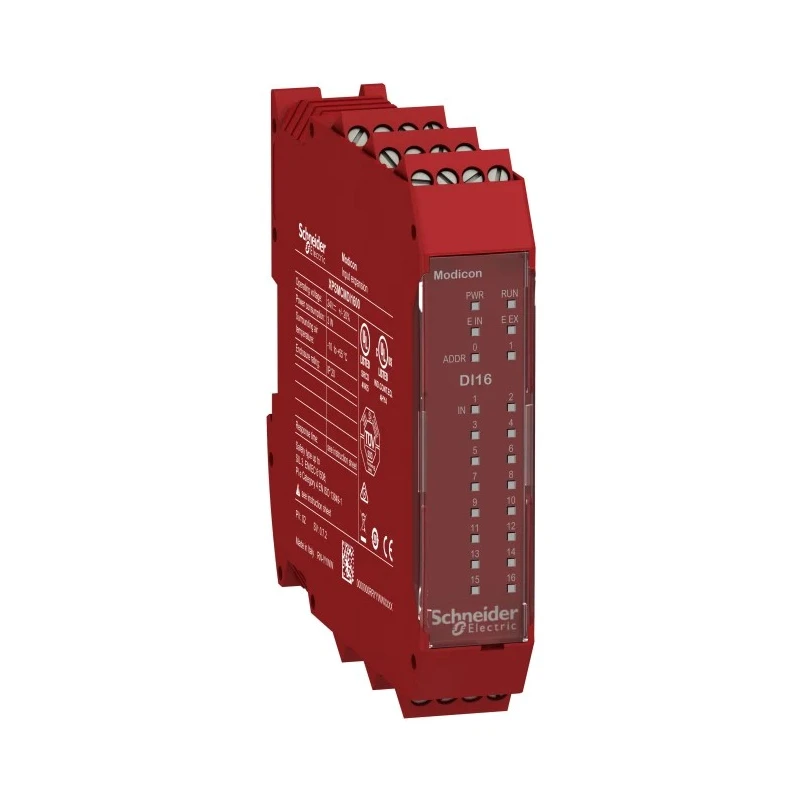

Installation and operation are optimized by removable captive screw terminal blocks, allowing efficient electrical connections and straightforward maintenance. The device features front panel LED indicators clearly displaying power supply, operational status, internal and external errors, as well as input/output conditions for quick and reliable diagnostics.

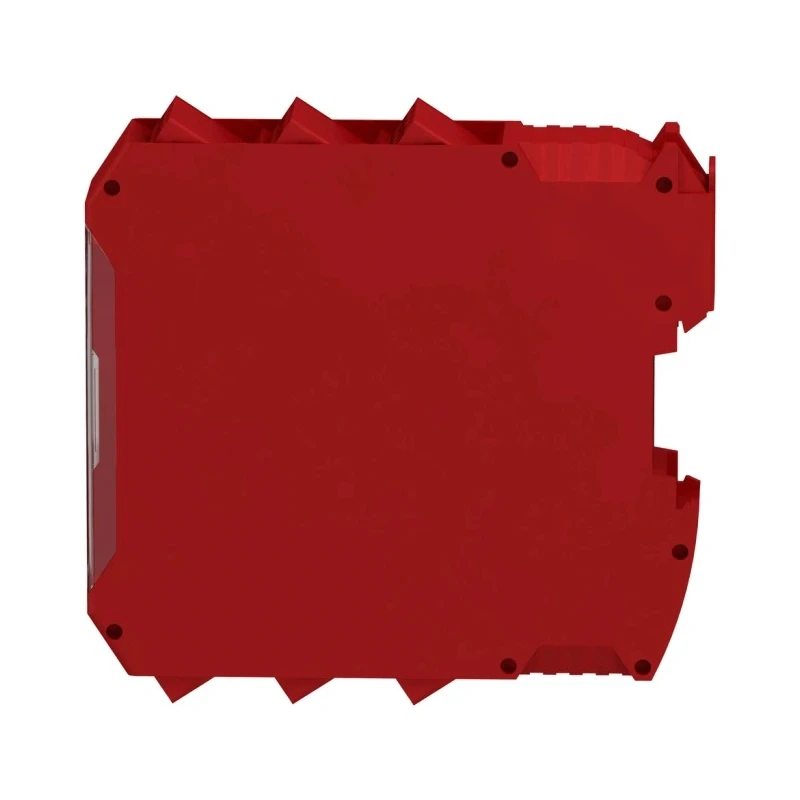

The IP20 rated enclosure ensures protection against dust and accidental contact, while the compact 22.5 mm depth, 99 mm height, and 114.5 mm width facilitate integration into control cabinets and industrial panels. Weighing only 0.25 kg and outfitted with a red housing, the module is both visually distinct and engineered for resilience in demanding environments.

Configurable filters and delays for each input and output support precise timing controls, essential for industrial safety requirements. Independent control of output pairs, configurable diagnostic signals, and activation/deactivation delays elevate application flexibility for automation systems. The unit is mounted on an Omega 35 mm DIN rail in accordance with EN 50022 for universal compatibility.

Safety is further assured as the XPSMCMDI1600 meets RCM, cULus, and TUV certifications, and supports advanced safety ratings - such as Category 4 conforming to EN/ISO 13849-1, PLe, Type 4 (EN/IEC 61496-1), and SILCL3 (IEC 62061). It is ideal for industrial safeguarding, minimising risks of personnel exposure to hazardous machine elements.

Compatible accessories include memory cards and backplane connectors for expansion. The module is integral to Schneider Electric’s Modicon MCM modular safety controller system, offering flexibility from small to large-scale input/output requirements. Use cases span industrial automation, manufacturing, process control, machinery safety, and perimeter protection in sectors such as automotive, food processing, packaging, and material handling.

16 isolated digital inputs with configurable filtering and delay functions. 4 test outputs for line control and safety circuit monitoring. Removable captive screw terminal blocks for easy installation and wiring. Front face LED indicators for clear, fast diagnostics.

IP20 rated compact enclosure, weighing just 0.25 kg. Mounts on Omega 35 mm DIN rail for secure installation. Red housing for improved visibility in control cabinets. Certification to international safety standards for trusted performance.

Scalable within Preventa Modular Safety Controller systems. Explore more Schneider Electric safety automation products and industrial solutions in the Safety IO Module category on EnvMart.
