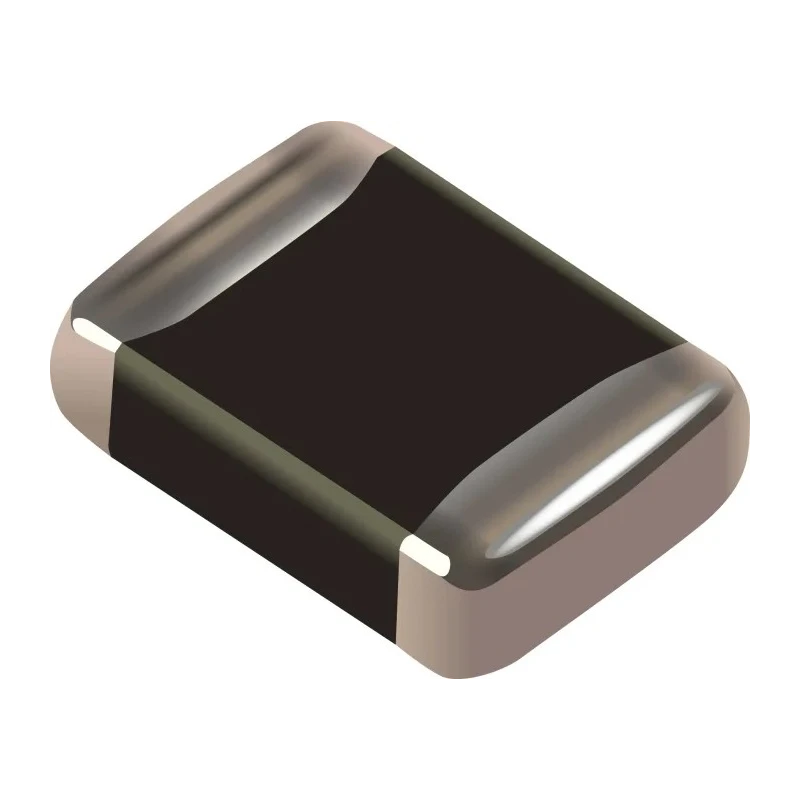

Bourns AVHT Surface Mount Varistor , 6.5 nF Capacitance, 10 A Surge Current, 77 V Clamping, 47 V Varistor AV30K2220122NIR1HT
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| THICKNESS | 1.4mm |
| Length | 5.7mm |
| Model | AV30K2220122NIR1HT |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | AVHT |
| Energy Rating | 10J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 6.5nF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 34V dc |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 30V ac |
| Clamping Voltage VC | 77V |
| Clamping Current | 10A |
| Maximum Surge Current | 1.2kA |
| Varistor Voltage | 47 V |
Key Features
- Designed for transient voltage suppression in electronic systems.
- Features a capacitance of 6.5 nF and clamping voltage of 77 V.
- Handles maximum surge currents up to 1.2 kA and continuous currents up to 10 A.
- Surface mount configuration for efficient PCB layout and automation.
- Operates across a wide temperature range from -55°C to 150°C.
- Compliant with RoHS environmental standards.
- Suitable for automotive and industrial electronics requiring compact protection.
- Tape & Reel packaging supports high-volume assembly.
Product Description
Bourns AV30K2220122NIR1HT is an AVHT series surface mount varistor designed for effective transient voltage suppression in compact electronic systems, including automotive, industrial, and consumer devices. The device offers robust surge protection performance with a varistor voltage of 47 V and a clamping voltage of 77 V, enabling reliable operation against destructive voltage spikes.
This varistor supports a surge current capability of up to 1.2 kA and continuous clamping current of 10 A, making it ideal for demanding surge protection tasks. It comes in a 2220 package form factor, facilitating surface mount technology (SMT) integration and optimized PCB footprint.
The product's capacitance of 6.5 nF contributes to its transient suppression characteristics, supporting high-speed electronic circuits. The AVHT series is known for temperature-independent behavior, functioning between -55°C and 150°C, which ensures protection under varied environmental and operational conditions.
Compliance with RoHS standards and non-sensitive response to mildly activated fluxes underscores safety and environmental responsibility. The varistor features tape & reel packaging for efficient production assembly, and its surface mount termination style ensures compatibility with automated processes.
Designed for reliable transient voltage suppression in electronic systems. Clamping voltage of 77 V and varistor voltage of 47 V for robust protection. Maximum surge current handling up to 1.2 kA. Surface mount 2220 package for compact PCB design.
Operates over an extensive temperature range of -55°C to 150°C. Capacitance value of 6.5 nF enhances suppression performance. Tape and reel packaging suited to automated manufacturing lines. RoHS compliant for environmental safety.
Bourns AVHT varistors are widely used in automotive electronics, industrial controllers, consumer appliances, and power supply protection, ensuring longevity and reliability in circuits exposed to surges and transient events.
Browse more AVHT series Varistors or similar electronic surge protection solutions in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can handle a maximum surge current of up to 1.2 kA.
The clamping voltage is 77 V.
The capacitance value is 6.5 nF.
It operates within a temperature range of -55°C to 150°C.
It comes in a 2220 surface mount package.
The maximum DC voltage is 34 V and the maximum AC voltage is 30 V.
The energy rating is 10 J.
Yes, it is compliant with RoHS environmental standards.
It uses a surface mount termination style.
It is suitable for automotive electronics, industrial controllers, and consumer appliances requiring surge protection.
The depth is 5 mm and the thickness is 1.4 mm.
It is packaged in tape & reel format, which supports high-volume assembly.
