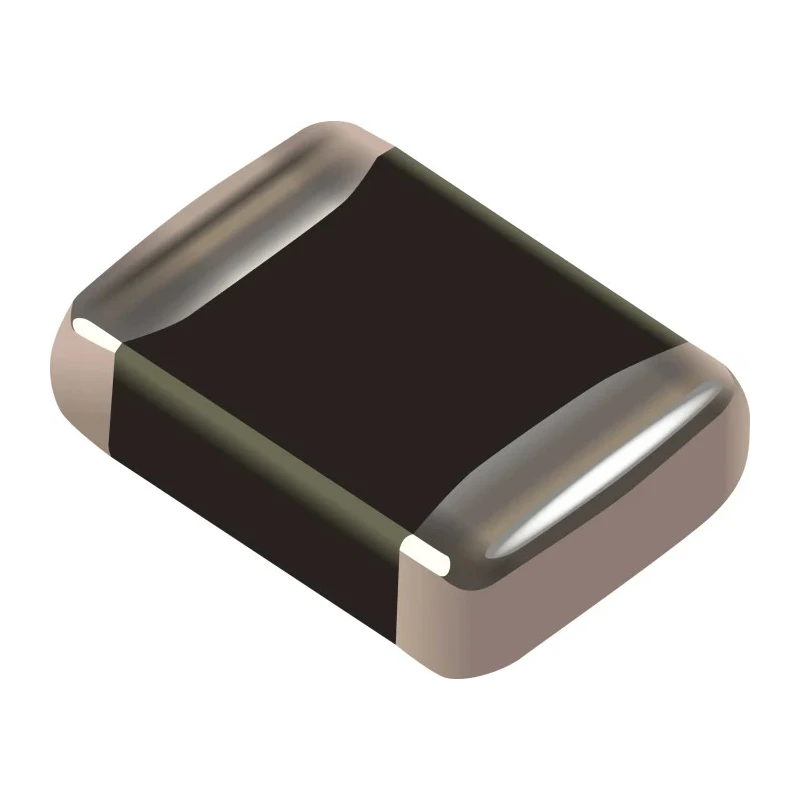

Bourns AVHT Varistor, 4.5 nF, 5A Clamping, 40 V Clamping Voltage, 24 V Varistor, Surface Mount AV14K1812801NIR1HT
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| THICKNESS | 1.3mm |
| Length | 4.7mm |
| Model | AV14K1812801NIR1HT |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | AVHT |
| Energy Rating | 2.4J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 4.5nF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 16V dc |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 14V ac |
| Clamping Voltage VC | 40V |
| Clamping Current | 5A |
| Maximum Surge Current | 800A |
| Varistor Voltage | 24 V |
Key Features
- Surface mount AVHT series varistor for reliable surge protection.
- Capacitance of 4.5 nF ensures robust transient suppression.
- Clamping voltage rated at 40 V for electronics safety.
- Varistor voltage specified at 24 V for precise circuit protection.
- Handles a maximum clamping current of 5A.
- 1812 package case suitable for compact PCB layouts.
- Temperature operating range from -55°C to 150°C enables automotive and industrial use.
- Maximum AC voltage of 14V and DC voltage of 16V.
Product Description
Bourns AV14K1812801NIR1HT AVHT Varistor is designed for advanced surge protection in automotive, industrial, and electronic applications. This surface mount device combines high reliability with compact design, offering transient suppression capabilities that protect sensitive circuits from destructive voltage spikes.
Featuring a capacitance of 4.5 nF and clamping current of up to 5A, the varistor reliably suppresses transient voltages. The device maintains a clamping voltage of 40V and a varistor voltage of 24V, serving as an effective safeguard for components requiring precise voltage regulation. It is constructed for surface mount deployment and comes in a standard 1812 package case, ideal for space-constrained printed circuit boards.
With a wide operating temperature range from -55°C to 150°C, the AVHT series is suitable for harsh environments found in automotive electronics, industrial control systems, and consumer devices. The varistor supports maximum AC voltage of 14V and DC voltage of 16V, with a maximum surge current capability of 800A and an energy rating of 2.4 J.
Surface mount AVHT series varistor for reliable surge protection. Capacitance of 4.5 nF ensures robust transient suppression. Clamping voltage rated at 40 V for electronics safety. Varistor voltage specified at 24 V for precise circuit protection.
Handles a maximum clamping current of 5A. 1812 package case suitable for compact PCB layouts. Temperature operating range from -55°C to 150°C enables automotive and industrial use. Maximum AC voltage of 14V and DC voltage of 16V.
Maximum surge current capacity up to 800A. Energy rating of 2.4 J for demanding environments.
This varistor is RoHS compliant and offers excellent flammability rating, making it suitable for modern electronic manufacturing standards. Its compact size reduces board space requirements compared to alternative protection devices. Common industrial uses include automotive anti-lock brake systems, direct ignition systems, and consumer electronics susceptible to voltage transients.
Explore more Bourns surge protection components and related Varistors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is 4.5 nF, which ensures robust transient suppression.
The clamping voltage is rated at 40 V, providing protection for electronic circuits.
It can handle a maximum clamping current of 5 A.
This varistor has a maximum surge current capability of 800 A.
The operating temperature range is from -55°C to 150°C, making it suitable for various environments.
The maximum AC voltage is 14 V and the maximum DC voltage is 16 V.
It comes in a standard 1812 package case, which is suitable for compact PCB layouts.
Yes, this varistor is RoHS compliant, meeting modern electronic manufacturing standards.
The energy rating is 2.4 J, suitable for demanding environments.
The termination style is surface mount, designed for easy integration into electronic circuits.
It is suitable for automotive, industrial, and consumer electronics applications, especially where surge protection is needed.
The country of origin for this varistor is Slovenia.
