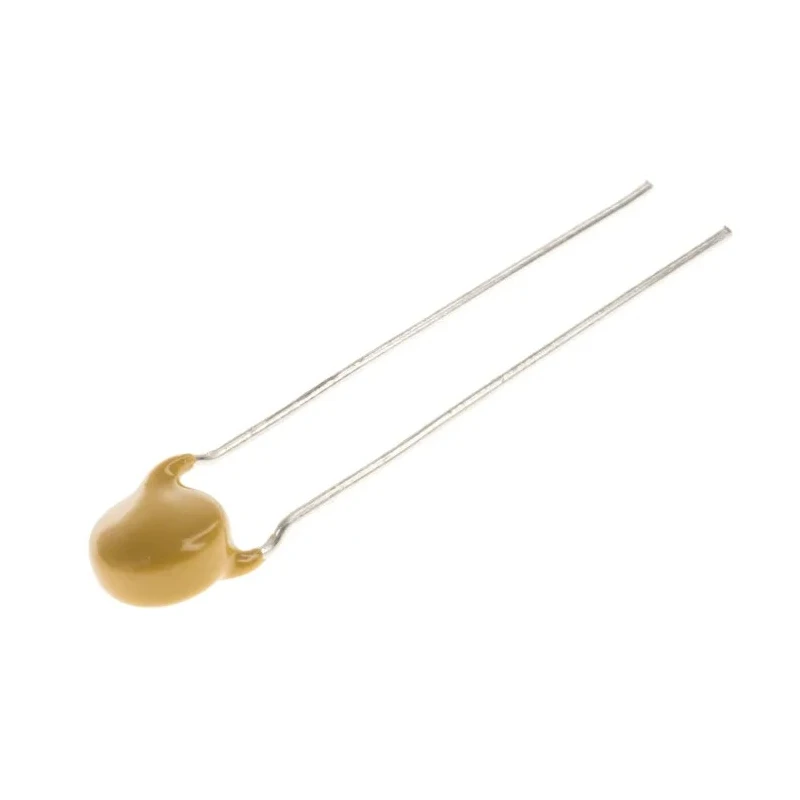

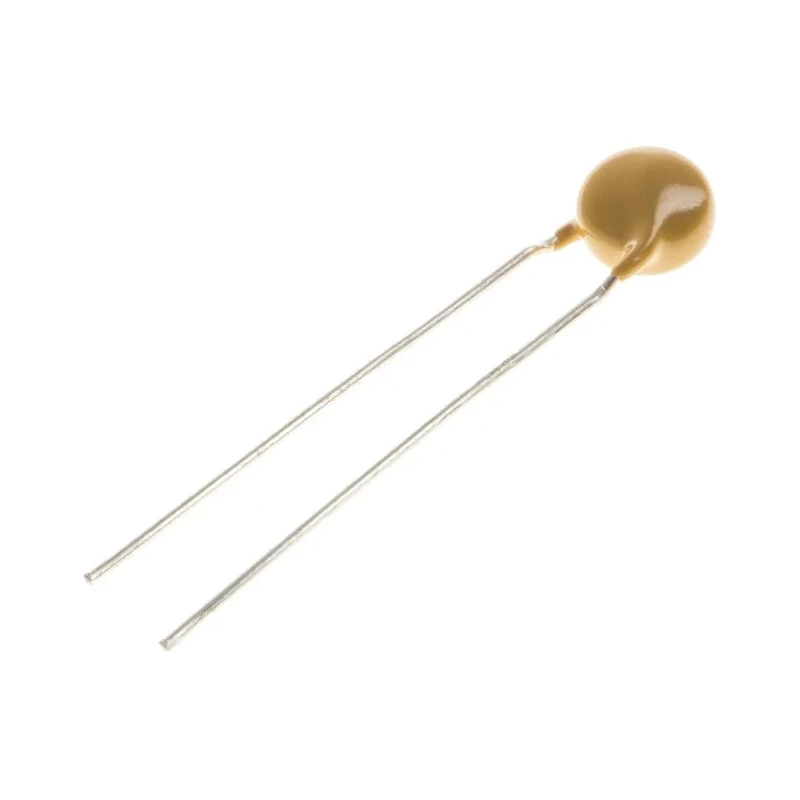

Vishay Metal Oxide Varistor 55pF, 5A, Clamping Voltage 695V, Varistor Voltage 430V, Bulk, VDRS05C275BSE
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7mm |
| Brand | Vishay |
| THICKNESS | 4.9mm |
| Length | 33mm |
| Model | VDRS05C275BSE |
| Depth | 4.9mm |
| Packaging | Bulk |
| Series | VDRS - E |
| Energy Rating | 12J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 55pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 350V dc |
| Standards/Approvals | DVE, CSA, RoHS, UR |
| Lead Pitch | 5mm |
| Maximum AC Voltage | 275V ac |
| Clamping Voltage VC | 695V |
| Clamping Current | 5A |
| Maximum Surge Current | 400A |
| Varistor Voltage | 430 V |
Key Features
- Delivers robust 430V varistor voltage for circuit protection.
- Handles surge currents up to 400A and clamping current up to 5A.
- Compact 7mm diameter design and bulk packaging for easy installation.
- Wide operating temperature range from -40°C to 85°C enhances durability.
- Bulk production packaging supports efficient mounting in electronics manufacturing.
- Compliant with DVE, CSA, RoHS, and UR standards for safety and performance.
- Provides energy rating of 12J and capacitance of 55pF.
Product Description
Vishay VDRS05C275BSE is a high-quality metal oxide varistor designed to offer surge protection in a range of electronic and industrial applications. With a varistor voltage of 430V, clamping voltage of 695V, and the ability to handle up to 5A clamping current, this component efficiently protects sensitive circuits from voltage spikes.
The varistor features a compact 7mm diameter for space-saving installation and comes with a lead pitch of 5mm. Its ability to withstand maximum surge currents up to 400A makes it suitable for demanding environments. With a wide operating temperature range between -40°C and 85°C, the VDRS05C275BSE maintains reliable performance under varying climate conditions.
Bulk packaging is ideal for production-scale assembly, streamlining the process for manufacturers working with electronics and PCB assemblies. The varistor complies with DVE, CSA, RoHS, and UR safety standards, ensuring performance and reliability in applications ranging from power supply protection and circuit board safeguarding to telecom, motor control, and automotive systems.
This device features a capacitance of 55pF and an energy rating of 12J, providing additional protection for signal integrity and energy dissipation during voltage transients. The 4.9mm thickness and depth, along with a length of 33mm, allow for optimal integration in modern electronic hardware.
The Vishay VDRS05C275BSE is suitable for protecting industrial, telecommunication, automotive, solenoid, and power supply circuits. Its wide usage makes it an essential part for designers seeking dependable surge protection components. Explore and compare more varistors and surge protection devices in the Electronics Components category to find the best fit for your projects.
Browse other Vishay surge protection components and Varistors on EnvMart for efficient circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage of the Vishay VDC275BSE is 430V, providing effective surge protection for circuits.
This model can handle maximum surge currents up to 400A, making it suitable for demanding applications.
The clamping voltage for this varistor is 695V, which helps protect sensitive components from voltage spikes.
The capacitance of the Vishay VDC275BSE is 55pF, aiding in maintaining signal integrity during voltage transients.
The varistor has a diameter of 7mm, a thickness of 4.9mm, and a length of 33mm, allowing for compact installation.
It operates within a wide temperature range from -40°C to 85°C, ensuring reliable performance in various environments.
The Vishay VDC275BSE is provided in bulk packaging, which is ideal for production-scale assembly in electronics manufacturing.
This model complies with DVE, CSA, RoHS, and UR standards, ensuring safety and performance in its applications.
The energy rating of this varistor is 12J, which contributes to energy dissipation during voltage transients.
The lead pitch for the Vishay VDC275BSE is 5mm, facilitating easy integration into electronic circuits.
This varistor is suitable for protecting industrial, telecommunication, automotive, solenoid, and power supply circuits.
The maximum AC voltage rating for the Vishay VDC275BSE is 275V, ensuring compatibility with various electrical systems.
