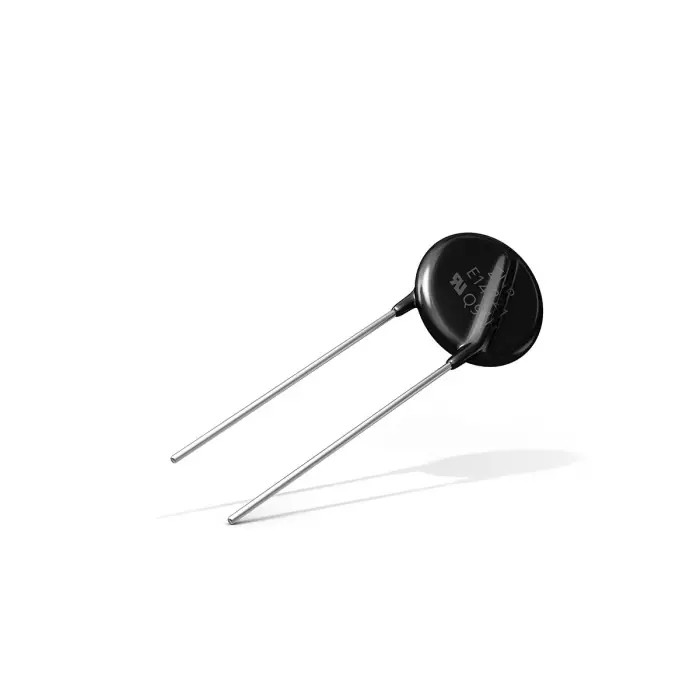

Panasonic E-S1 Surge Absorber 750 pF, 100 A, Clamping 1815 V, Varistor 470 V ERZE14A471S1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Diameter | 16.5mm |
| Brand | Panasonic |
| THICKNESS | 6.6mm |
| Length | 24mm |
| Model | ERZE14A471S1 |
| Depth | 6.6mm |
| Packaging | Bulk |
| Series | E-S1 |
| Energy Rating | 620J |
| Maximum Operating Temperature | 125°C |
| Capacitance | 750pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 170V dc |
| Pin Count | 2 |
| Termination Style | Straight Lead |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 1815V |
| Clamping Current | 100A |
| Maximum Surge Current | 7.5kA |
| Varistor Voltage | 470 V |
Key Features
- Designed for efficient absorption of transient overvoltages and surge currents.
- Varistor voltage rated at 470 V ensures accurate circuit protection.
- Clamping voltage of 1815 V and clamping current of 100 A for robust safety.
- High maximum surge current handling up to 7.5 kA enhances durability.
- Wide operating temperature range from -40°C to 125°C suitable for varied environments.
- Supports bulk packaging, pin count of 2, lead pitch at 10mm.
Product Description
Panasonic ERZE14A471S1 Surge Absorber is engineered to provide superior protection for electronic circuits against transient voltage and surge events. This varistor features a rated varistor voltage of 470 V, making it ideal for sensitive components requiring reliable overvoltage protection. Offering a clamping voltage of 1815 V and a clamping current of 100 A, it ensures the integrity of electronics under intense surge conditions.
With a compact form factor (diameter 16.5 mm, length 24 mm, thickness and depth 6.6 mm), the E-S1 series absorber is suitable for high-density boards. Its straight lead termination and 10 mm lead pitch facilitate easy integration into a variety of circuit designs. The maximum surge current capability is 7.5 kA, providing extended durability and resilience.
The surge absorber’s operational temperature range is broad, functioning between -40°C and 125°C, enabling its use in both industrial and consumer electronics as well as telecommunications, measurement devices, controllers, and home appliances.
It is compliant with several international safety and quality standards, including C-UL, IEC62368-1, UL1449, VDE IEC61051-1, and more. Bulk packaging, two-pin configuration, and high energy rating (620 J) further cater to demanding electronic projects.
Efficient transient protection for semiconductors such as transistors, diodes, ICs, thyristors, and triacs. Enhanced energy handling capability and surge current withstand at maximum operating temperatures. Suitable for surge protection in communication devices, measuring equipment, controllers, and consumer electronics.
Broad application field: industrial, laboratory, commercial, and home electronics. Compact size supports easy circuit placement and space savings. Explore more options in industrial surge protection and Varistors from Panasonic and browse EnvMart for complete passive component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage rating of this surge absorber is 470 V, ensuring reliable overvoltage protection for sensitive electronic components.
This model can handle a maximum surge current of 7.5 kA, providing enhanced durability against transient overvoltages.
The dimensions of this surge absorber are a diameter of 16.5 mm, a length of 24 mm, and a thickness of 6.6 mm.
The clamping voltage is 1815 V, and the clamping current is 100 A, ensuring robust safety during surge events.
The energy rating of this surge absorber is 620 J, allowing it to handle significant energy during surge events.
This model operates within a temperature range of -40°C to 125°C, making it suitable for various environments.
It features a straight lead termination style, which facilitates easy integration into circuit designs.
The lead pitch of this surge absorber is 10 mm, allowing for compatibility with various circuit board layouts.
This surge absorber is suitable for applications in industrial, laboratory, commercial, and home electronics, as well as telecommunications and measurement devices.
This model complies with international safety standards including C-UL, IEC62368-1, UL1449, and VDE IEC61051-1.
This surge absorber is available in bulk packaging, which is suitable for larger electronic projects.
The pin count for this surge absorber is 2, making it compatible with various circuit designs.
