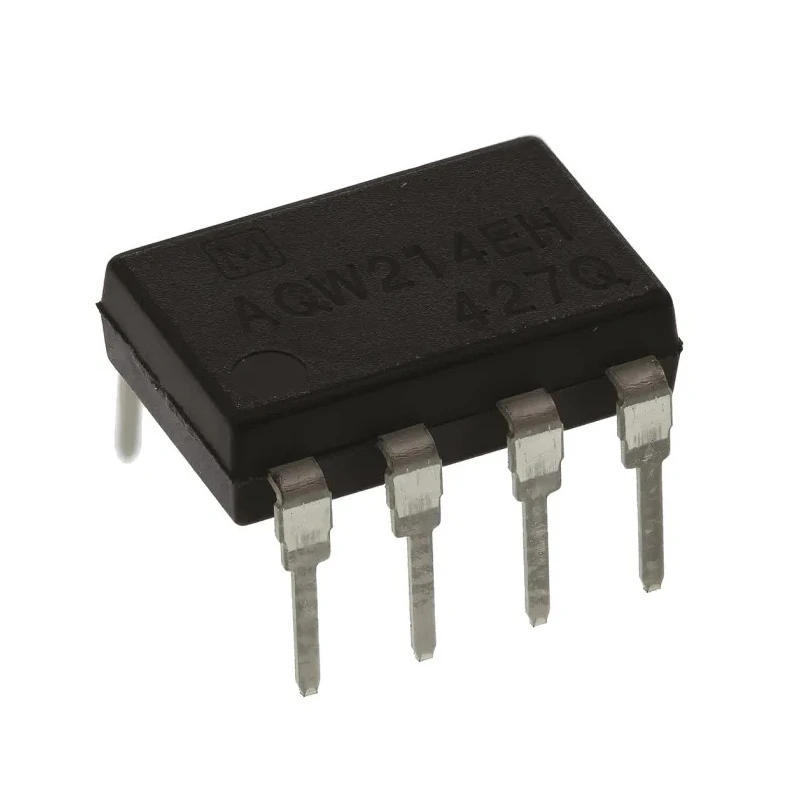

Panasonic Solid State Relay 0.1 A Load, 400 V Load, 1.5V Control DIP-8 Package AQW2xxEH

Panasonic AQW214EH Series Solid State Relay is engineered for precise control of low-level analog signals with a maximum load current of 0.1 A and a load voltage of 400 V. It operates with a low control voltage of up to 1.5 V, making it energy efficient and applicable for modern electrical and automation circuits.

This solid state relay is housed in a compact DIP-8 package with through-hole terminals, facilitating easy integration into printed circuit boards. The device features a DPST contact configuration and an on-state resistance of 120 Ω, ensuring reliable switching with minimal electrical noise. Its low off-state leakage current of 1 μA significantly reduces standby power consumption.

With a wide operating temperature range from -40°C to 85°C, the AQW214EH solid state relay is suitable for demanding industrial, laboratory, and automation environments. It complies with rigorous safety standards including UL (UL1577), CSA, and EN62368-1, instilling confidence for various commercial and manufacturing applications.

Key technical attributes include a length of 9.9 mm, width of 6.4 mm, and height of 3.2 mm, enabling compact device designs. The PhotoMOS output type enhances electrical isolation while delivering efficient performance in switching low-level DC loads.

This relay is widely used in industrial automation, electrical control systems, signal conditioning, and instrumentation, providing dependable switching capabilities for low current and voltage control requirements. Its precise operational characteristics allow integration into sophisticated control circuits with reduced maintenance overhead.

Supports maximum load current of 0.1 A allowing control of small loads. Maximum load voltage rating is 400 V suitable for various electrical applications. Utilizes a DIP-8 through-hole package for easy PCB mounting. Terminal type is through hole with DPST contact configuration for reliable switching.

Features low off-state leakage current of 1 μA reducing power loss. On state resistance is 120 Ω enhancing efficient conductivity. Operates reliably between -40°C to 85°C, suitable for industrial environments. Compact dimensions with 9.9 mm length, 6.4 mm width, and 3.2 mm height.

PhotoMOS output type ensures robust isolation and switching performance. Complies with UL (UL1577), CSA, and EN62368-1 safety standards. Explore the Panasonic line of Solid State Relays on EnvMart to find reliable and efficient solutions for advanced automation and electrical control applications.
