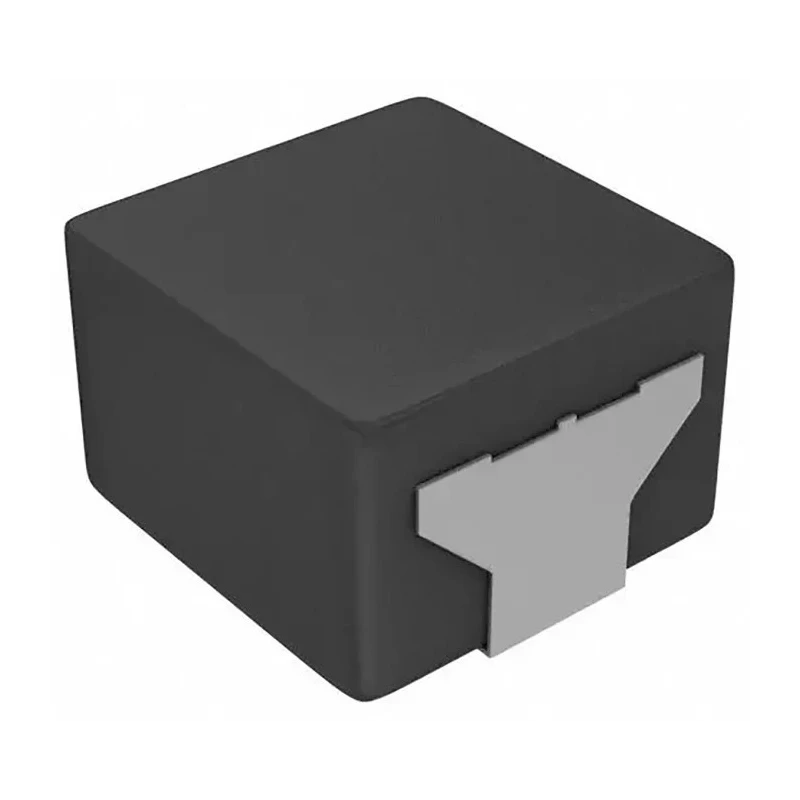

Panasonic 0630 Surface Mount Inductor with Metal Composite Core 4.7 μH 5.5 A Integral Construction ETQP3M

Panasonic ETQP3M surface mount inductor ETQP3M4R7KVN with a 0630 package and metal composite core offers a robust 4.7 μH inductance and a maximum DC current rating of 5.5 A. Designed with integral construction, it fulfills automotive industry demands through AEC-Q200 compliance for durability under harsh conditions.

This inductor features a compact size of 6.4 mm length, 6 mm depth and 3 mm height, making it suitable for dense electronic assemblies. The metal composite core improves performance stability, while the low DC resistance of 30 mΩ reduces losses for energy-efficient operation.

The shielded design minimizes electromagnetic interference, critical for preserving signal integrity in automotive power management and noise filtering circuits. With an inductance tolerance of ±20% / ±10%, the component guarantees accurate inductance values across a range of operating environments from -55°C to 155°C.

Typical applications include DC-DC converters and high current electronic circuits requiring low loss inductors. The maximum self-resonant frequency of 100 kHz allows effective performance in power electronics.

Manufactured in Japan, this surface mount inductor is RoHS compliant, meeting stringent environmental standards. Compact 0630 package size with 6.4 x 6 x 3 mm dimensions. Metal composite core for stable inductance. Low DC resistance of 30 mΩ for efficiency.

Integral construction with shielding to reduce EMI. Applicable in automotive power electronics with AEC-Q200 certification. Inductance tolerance of ±20% / ±10%. Wide operating temperature range from -55°C to 155°C. Max self-resonant frequency of 100 kHz.

Surface mount termination suitable for PCB assembly. RoHS compliant and made in Japan. Explore more Panasonic Inductors and electronic components on EnvMart for your automotive, industrial, and electronic design needs.
