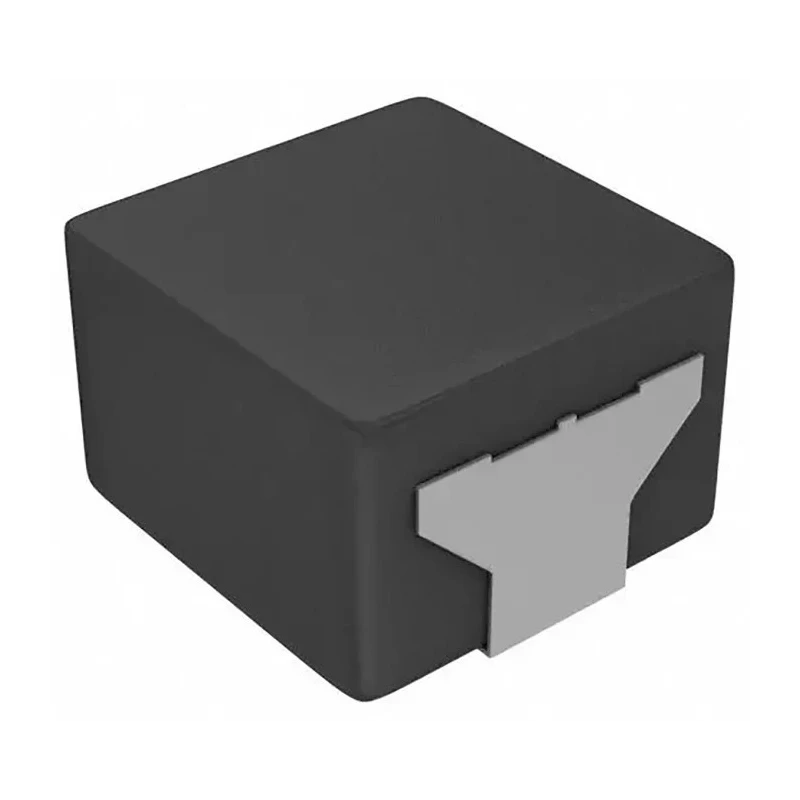

Panasonic 0840 Surface Mount Inductor with Metal Composite Core 10μH ±20/±10 % Tolerance 5.6A Maximum DC Current ETQP4M

Panasonic ETQP4M 0840 Surface Mount Inductor with Metal Composite Core delivers reliable 10μH inductance and can handle a maximum DC current of 5.6A. It features integral construction with a low-profile 0840 package size, making it suitable for high-density electronic assemblies.

Constructed using advanced metal composite core technology, this surface mount inductor offers excellent heat resistance up to 155°C and reduced power loss due to its low DC resistance of 41.6mΩ. The inductance tolerance options of ±20 % and ±10 % ensure stable performance under various operating conditions.

This series is qualified to the stringent AEC-Q200 automotive standard, making it ideal for automotive electronics and other applications requiring operation under harsh environmental conditions and high vibration resistance.

Typical applications include noise filtering in drive circuitry, DC/DC buck converters, and boost converters, where peak current handling and thermal stability are critical. Its surface mount design supports efficient, automated PCB assembly processes.

Additional features include low audible noise operation which is advantageous for noise-sensitive automotive electronics environments. The product is RoHS compliant and manufactured in Japan, guaranteeing quality and environmental standards.

Low profile 0840 package size with integral construction ensures compact mounting. Metal composite core technology provides high heat resistance up to 155°C. Inductance tolerance of ±20/±10 % allows for precise electrical performance.

Highly efficient design with low DC resistance of 41.6mΩ reduces power loss. Certified to AEC-Q200 automotive standard for harsh environment reliability. Surface mount termination style supports automated assembly. Wide operating temperature range from -55°C to 155°C enables diverse applications.

Quiet operation with low audible noise.

This Panasonic ETQP4M series surface mount inductor suits industrial, automotive, and electronic manufacturing sectors requiring reliable power choke coils in compact footprints. Browse EnvMart for more quality Surface Mount Inductors and related electronics components.
