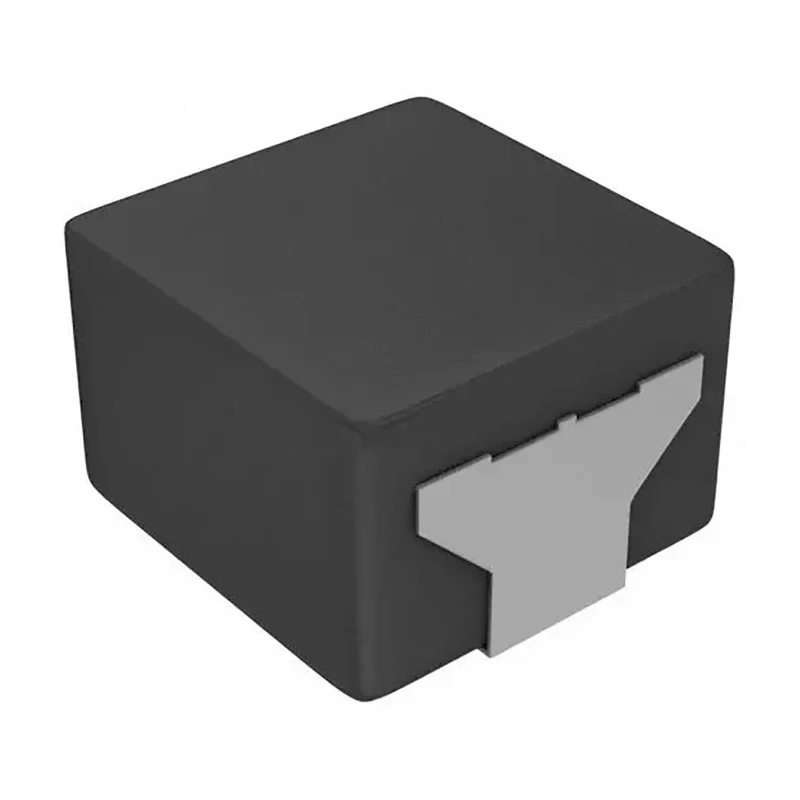

Panasonic 0630 Surface Mount Inductor with Metal Composite Core 680 nH Integral Construction ±20 % 13.2 A ETQP3M

Panasonic ETQP3M is a 0630 Surface Mount Inductor engineered with a metal composite core and integral construction delivering an inductance value of 680 nH and ±20 % tolerance. This low profile inductor supports a maximum DC current of 13.2 A, making it highly efficient and reliable for power line filtering and noise suppression in automotive and industrial electronics.

The metal composite core technology employed ensures excellent inductance stability across a broad temperature range from -55°C to +155°C, sustaining performance even in harsh operating environments. Its low DC resistance of 5.2 milliohms minimizes power loss, enabling high efficiency in DC/DC converters, boost converters, and drive circuits.

This inductor series carries AEC-Q200 automotive qualification, proving suitability for automotive applications requiring high vibration resistance and extended durability. It features a surface mount termination style and compact 0630 package size, ideal for high-density PCB layouts.

The product is packaged on embossed carrier tape to support automated pick-and-place assembly operations, improving manufacturing throughput and consistency. The coil design ensures low audible noise generation, making it suitable for noise-sensitive electronic applications.

Constructed with a metal composite core for enhanced reliability and efficiency. Supports maximum DC current of 13.2 amperes with low DC resistance of 5.2 mΩ. Operating temperature range from -55°C to 155°C ensures application in harsh conditions.

AEC-Q200 qualified, meeting automotive standard requirements for vibration and durability. Compact 0630 package with 3 mm height and low profile for space-saving PCB integration. Surface mount termination style designed for automated assembly.

Integral construction enhances mechanical robustness. Ideal for power noise filtering in automotive, industrial, and consumer electronics.

This Panasonic ETQP3M Surface Mount Inductor is an excellent component choice for designing efficient and reliable power electronics systems in automotive and industrial sectors. Browse the Electronics Components category on EnvMart for similar high-quality inductors from leading manufacturers.
