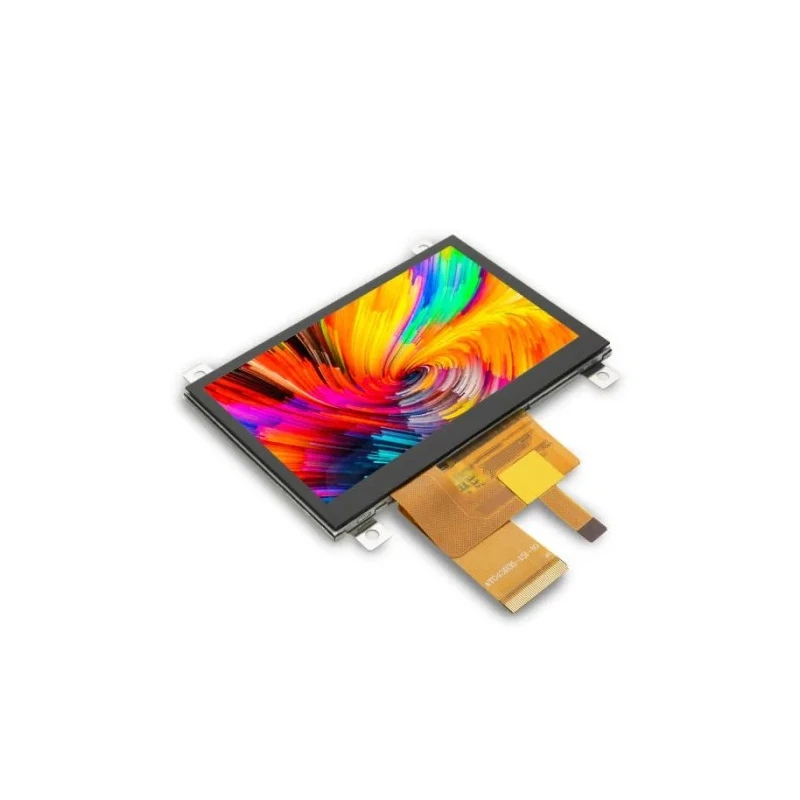

MikroElektronika 4.3 Inch TFT LCD Display Touch Screen 480 x 270 Pixel RGB 24Bit Interface MIKROE-4280

MikroElektronika MIKROE-4280 is a 4.3 inch TFT LCD Display Touch Screen with a resolution of 480 x 270 pixels. It supports RGB 24Bit interface, enabling display of 16.7 million colors with a true-color palette. The capacitive touch screen ensures accurate and responsive user interaction, ideal for various industrial and commercial applications.

The display has a compact viewing area of 95.04 x 53.86 mm and is equipped with a 5X2 LED backlight for consistent brightness of 450 cd/m². It achieves a contrast ratio of 500:1, providing clear and vivid visuals even in different lighting conditions.

Operating voltage ranges from a minimum of -0.3 V to a maximum of 3.6 V, with a recommended power supply of 3.3 V and a current draw of 25 mA. It is designed to function reliably in temperatures between -20°C and 70°C, making it suitable for industrial, automation, building management, and home control systems.

This TFT display module integrates a metal frame at the back for durability and stability. Its features make it highly suitable for uses in industrial human-machine interfaces (HMI), building automation, and many other applications where clear touch screen displays are essential.

Capacitive touch screen technology for precise user interactions. Bright display with 450 cd/m² brightness and 500:1 contrast ratio. Compact viewing area dimensions of 95.04 x 53.86 mm. Operates efficiently at 3.3 V power supply voltage with 25 mA current consumption.

Robust design supporting operating temperatures from -20°C to 70°C. Equipped with a TFT display type and 5X2 LED backlight for uniform brightness. Complies with RoHS standards for environmental safety. Perfect for industrial HMI, home, and building automation applications.

Explore more from the MikroElektronika range in the EnvMart catalog for electronic components and Display Modules designed for industrial and commercial usage.
