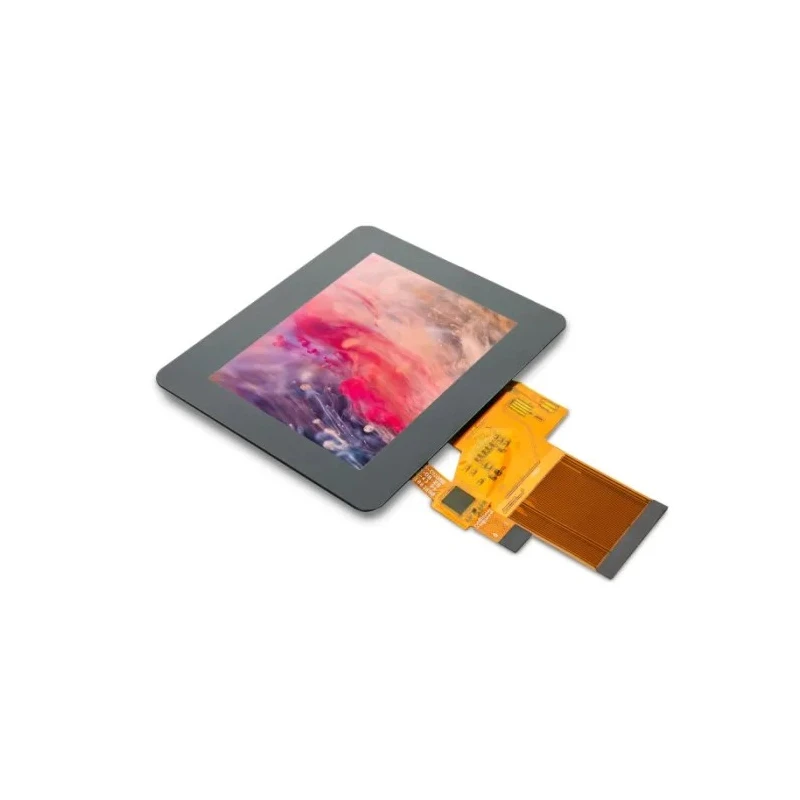

MikroElektronika 3.5 in TFT LCD Display Touch Screen 320 x 240 Pixel Capacitive MIKROE-3906

Free Delivery in India | Lowest Global Shipping Charges

MikroElektronika 3.5 in TFT LCD Display Touch Screen 320 x 240 Pixel Capacitive MIKROE-3906

Name: MikroElektronika 3.5 in TFT LCD Display Touch Screen 320 x 240 Pixel Capacitive MIKROE-3906
Brand: MikroElektronika
SKU: 288618
Price: 153.27 USD
Availability: InStock



Category Display Module Brand MikroElektronika Condition New

Specifications

Country of Origin	India
Display Type	TFT
Brand	MikroElektronika
Height	91mm
Model	MIKROE-3906
Depth	4.8mm
Width	76mm
Series	MIKROE
Maximum Operating Temperature	70°C
Brightness	480cd/m²
Minimum Operating Temperature	-20°C
Interface Type	RGB888
Screen Resolution	320 x 240 pixel
Standards/Approvals	RoHS
Touch Screen Type	Capacitive
Maximum Supply Voltage	5V
Minimum Supply Voltage	-0.3V
Viewing Area Dimensions	70.08 x 52.56 mm
Backlight Type	6S LEDs
Diagonal Display Size	3.5in
Contrast Ratio	200:300
200	300
Contrast Ratio200	300

Key Features

The display supports up to 24-bit RGB888 colour format for true-colour output.
The viewing area measures 70.08 x 52.56 mm, providing clear visual output.
Supported operating temperature ranges from -20°C up to 70°C for industrial environments.
The module integrates 6S LED backlight for consistent illumination.
The touchscreen type is capacitive, enhancing user interaction responsiveness.

Product Description

MikroElektronika MIKROE-3906 is a 3.5-inch TFT LCD display module featuring a capacitive touch screen with a resolution of 320 x 240 pixels using the RGB888 24-bit colour format. This combination allows a vibrant palette of up to 16.7 million colours, making it suitable for detailed graphical interfaces and accurate visual presentations.

The display incorporates a TFT-LCD panel with an integrated driver IC and flexible printed circuit (FPC), along with a 6S LED backlight unit providing an illumination brightness of 480 cd/m², ensuring clear visibility even in demanding lighting conditions. Its contrast ratio of about 200:300 delivers a sharp image quality.

Designed with a viewing area of 70.08 x 52.56 mm, the module’s physical dimensions are 91 mm in height, 76 mm in width, and 4.8 mm in depth, allowing it to fit compact industrial or embedded systems. The capacitive touch screen enhances user experience by supporting multi-touch gestures and providing accurate touch response.

The module supports a supply voltage up to a maximum of 5V, with a minimum voltage tolerance of -0.3V, and operates reliably within temperature conditions spanning -20°C to 70°C, making it apt for industrial, home automation, and building automation applications.

The display supports true-color rendering with RGB888 24-bit format. Its capacitive touch feature enables precise and responsive user input. 6S LED backlighting ensures consistent and bright screen visibility. Compact module dimensions allow integration into various electronic devices.

Wide operating temperature range supports industrial and automation environments. Bright viewing area and excellent contrast ratio enhance readability. Compliant with RoHS standards ensuring environmental and safety compliance.

This TFT LCD display module is ideal for industrial human-machine interfaces (HMI), embedded systems, automation controls, and advanced graphical user interfaces where reliable display and touch input are required. For comprehensive solutions, browse more advanced Display Modules and related components on EnvMart.
