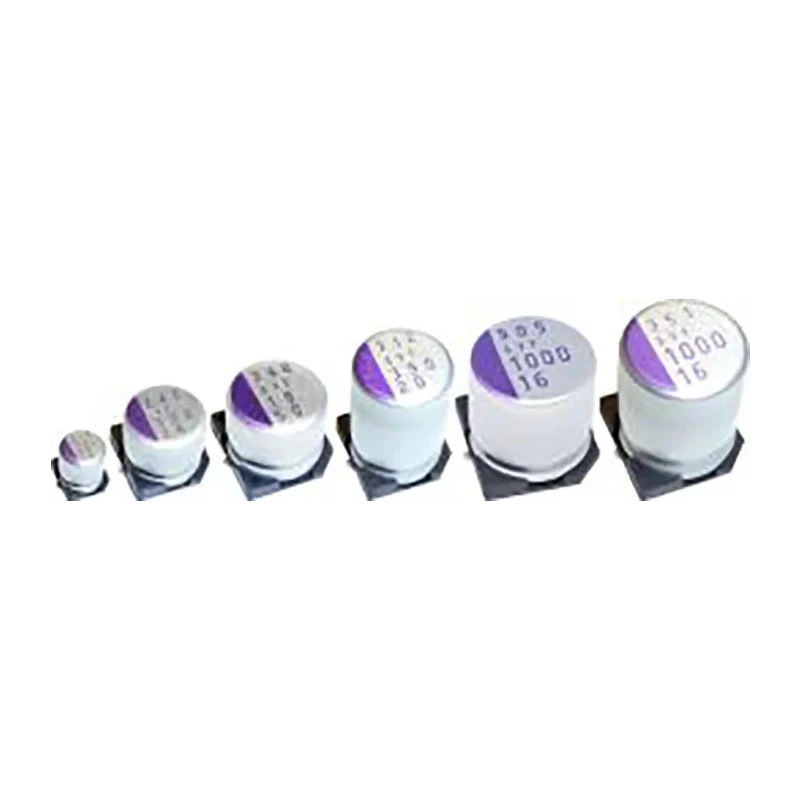

Panasonic 1 mF 16V DC Surface Polymer Capacitor SVF Series 500 Package 16SVF1000MX

Panasonic 16SVF1000MX is a high-quality surface polymer capacitor designed for electronic applications requiring reliable and large capacitance in a compact format. This capacitor provides a capacitance of 1 mF at 16V DC with a tolerance of ±20%. It employs a solid polymer electrolyte technology which enhances stability and performance compared to traditional electrolytic capacitors.

The capacitor is designed to operate efficiently at temperatures ranging from -55°C to a maximum of 125°C, making it suitable for industrial, automotive, and commercial electronics environments. Its ripple current rating of 4.3 A and low leakage current of 3.2 mA ensure sustained performance during high-frequency operations.

Dimensionally, the Panasonic 16SVF1000MX features a compact size with a 10.3 mm length and depth, and a 10 mm height, facilitating easy integration into surface mount assemblies. The PIN pitch is 4.6 mm and it comes in a package case size of 500 units, tailored for volume manufacturing and assembly.

This capacitor belongs to the SVF series known for high voltage tolerance up to 50 V DC maximum and long lifetime endurance of 1000 hours under standard conditions. Its solid state design is halogen free, aligning with environmental compliance requirements.

Typical use cases include power management circuits, filtering, and decoupling roles in industrial electronics, automotive systems, HVAC controls, and manufacturing equipment, providing stable electrical characteristics over extended periods.

Capacitance value is 1 mF with ±20% tolerance. Voltage rating of 16V DC ensuring versatile use. Compact surface mount type with 500 case package. Operates reliably between -55°C and 125°C. Leakage current is low at 3.2 mA for efficient performance.

Features a ripple current capacity of 4.3 A. Constructed with solid polymer electrolyte for durability. Dimensions measure approximately 10.3 mm length, depth, and 10 mm height. Designed for 1000 hours lifetime at high temperature and voltage.

Manufactured in Japan maintaining high quality standards. Explore EnvMart for a wide selection of Polymer Capacitors and Panasonic offerings to find suitable components for your industrial and electronic design projects.
