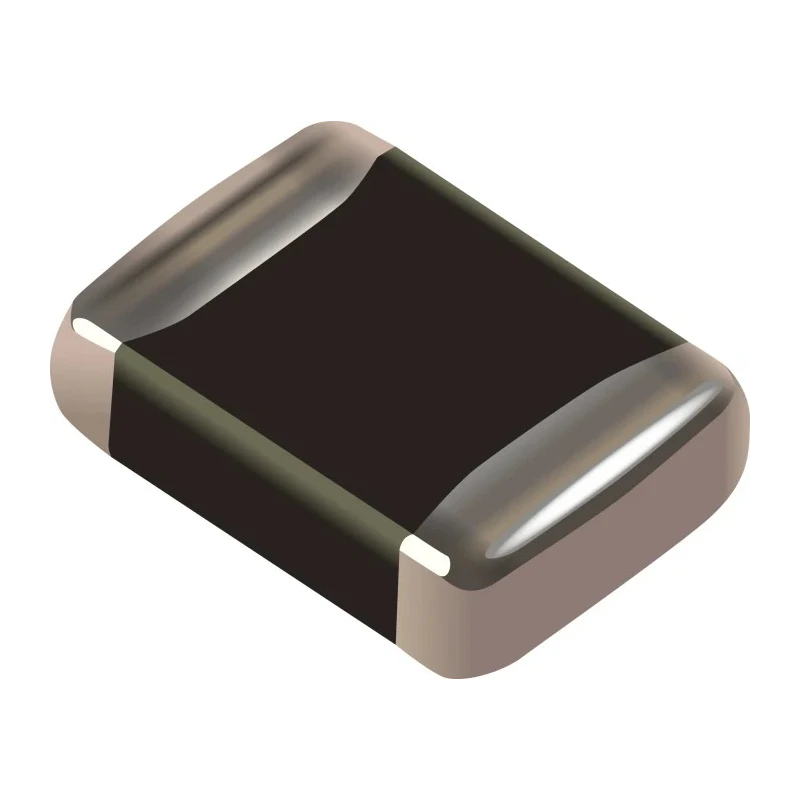

Bourns AVHT Series Varistor 780 pF 1 A, Clamping Voltage 54 V, Varistor Voltage 22 V, Surface Mount 1206 AV20K1206201NIR1HT
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| THICKNESS | 1.2mm |
| Length | 3.2mm |
| Model | AV20K1206201NIR1HT |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | AVHT |
| Energy Rating | 1.6J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 780pF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 26V dc |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 20V ac |
| Clamping Voltage VC | 54V |
| Clamping Current | 1A |
| Maximum Surge Current | 200A |
| Varistor Voltage | 22 V |
Key Features
- Varistor features a high surge capability of 200 A.
- Capacitance rated at 780 pF for sensitive electronic applications.
- Clamping voltage of 54 V ensures protection against overvoltage events.
- Designed for surface mount installation with 1206 package.
- Operates over a wide temperature range from -55°C to 150°C.
- Maximum DC voltage rated at 26 V, AC voltage at 20 V.
- Energy rating at 1.6 joules for robust transient handling.
- RoHS compliant device suitable for automotive and industrial use.
Product Description
Bourns AV20K1206201NIR1HT belongs to the AVHT series of varistors, featuring a 1206 surface mount package and specifically engineered for transient voltage suppression in automotive and industrial electronics. With a capacitance of 780 pF and a clamping voltage of 54 V, it protects circuits from damaging voltage surges while maintaining a varistor voltage of 22 V.
High surge capability with a maximum surge current of 200 A enables robust protection during power anomalies. Reliable clamping action aids in maintaining sensitive electronics’ integrity. Surface Mount design (1206 case) allows space savings on PCBs and supports automated tape & reel assembly.
Wide operational temperature range from -55°C to 150°C ensures functionality in extreme conditions. RoHS compliance demonstrates environmental responsibility and compatibility with global manufacturing standards. Energy handling of 1.6 J accommodates frequent voltage transients.
Non-plastic coating improves flammability rating for automotive environments. Minimum operating temperature at -55°C and maximum at 150°C cater to demanding automotive and industrial locations. Typical applications include automotive electronic systems such as anti-lock brake and direct ignition systems, industrial automation, and protection for sensitive control boards.
Features such as tape & reel packaging help facilitate bulk processing and efficient manufacturing workflows. Discover more advanced components from Bourns in the Varistor category on EnvMart, and browse by model AV20K1206201NIR1HT for technical details and compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is rated at 780 pF, making it suitable for sensitive electronic applications.
The clamping voltage for the AV20K1206201NIR1HT is 54 V, which helps protect circuits from overvoltage events.
This varistor has a maximum surge current rating of 200 A, providing robust protection during power anomalies.
The operating temperature range for this model is from -55°C to 150°C, ensuring functionality in extreme conditions.
The maximum DC voltage rating is 26 V, and the maximum AC voltage rating is 20 V.
This varistor has an energy rating of 1.6 joules, accommodating frequent voltage transients effectively.
The varistor is designed in a 1206 surface mount package, facilitating space savings on PCBs.
Yes, the AV20K1206201NIR1HT is RoHS compliant, demonstrating environmental responsibility and compatibility with global manufacturing standards.
This model utilizes a surface mount termination style, which supports automated tape and reel assembly.
It is suitable for automotive electronic systems, such as anti-lock brake and direct ignition systems, as well as industrial automation and protection for sensitive control boards.
The dimensions of this varistor are 3.2 mm in length, 1.6 mm in depth, and 1.2 mm in thickness.
The country of origin for the AV20K1206201NIR1HT is Slovenia.
