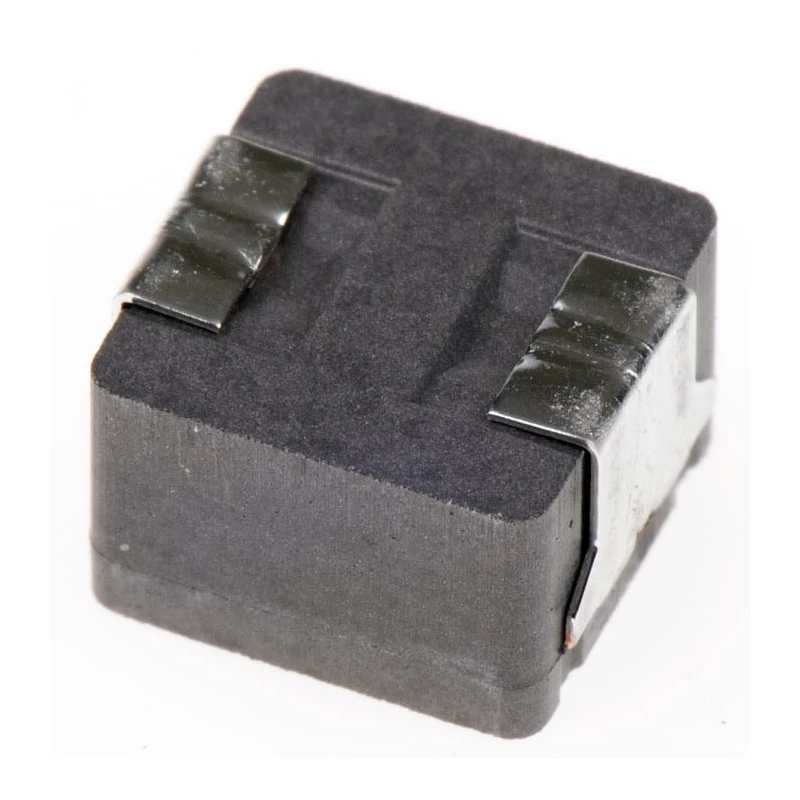

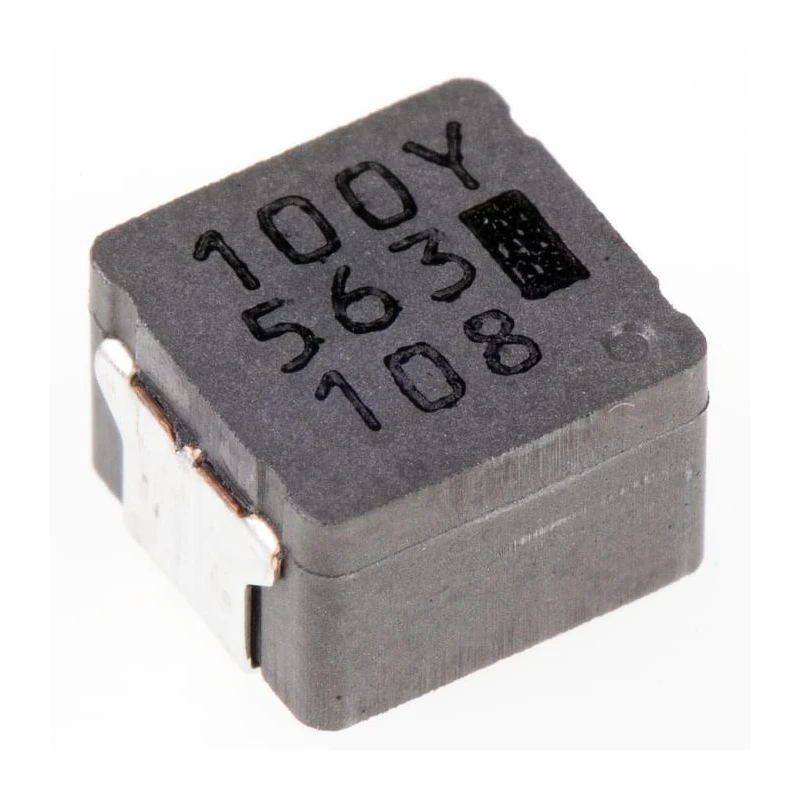

Panasonic 0645 Shielded Surface Mount Inductor with Metal Core 10 μH ±20% 8.3 A Idc ETQP4M

Panasonic ETQP4M is a shielded surface mount inductor featuring a metal core and an inductance of 10 μH with ±20 % tolerance. Designed to withstand a maximum DC current of 8.3 A, it suits demanding electronic control units and power supply circuits requiring stable inductance performance and efficient energy management.

The device complies with AEC-Q200 automotive standards, ensuring ruggedness for automotive applications. It operates reliably across a wide temperature range from -40 °C to +150 °C, making it suitable for environments exposed to thermal extremes including industrial and automotive systems.

The shielded construction reduces electromagnetic interference, which is critical in signal processing and noise-sensitive circuits. With a low DC resistance of 59.6 mΩ, the inductor maximizes energy efficiency by minimizing power losses during operation. The compact 0645 package size (6.5 mm length x 6 mm depth x 4.5 mm height) allows installation in space-constrained PCB layouts.

Wirewound construction provides high inductance stability and long-term reliability, while the maximum self-resonant frequency of 100 kHz supports its use in various signal and power applications. This component also conforms to RoHS regulations, meeting environmental and safety standards.

Commonly used in electronic control units within automotive systems, power supply circuits, DC-DC converters, and industrial automation, the Panasonic ETQP4M inductor offers dependable performance for complex electronic circuits.

Complies with AEC-Q200 automotive standards for robustness and safety. Wide operating temperature range from -40 °C to +150 °C for diverse ambient conditions. Shielded construction reduces electromagnetic interference in sensitive circuits.

Low DC resistance of 59.6 mΩ enhances overall circuit energy efficiency. Compact 0645 package size enables efficient use of PCB space. Wirewound metal core construction ensures stable inductance and durability. Suitable maximum current rating at 8.3 A for moderate power applications.

RoHS compliant for environmental safety and sustainability. Explore Panasonic's range of Surface Mount Inductors and other high-quality electronic components at EnvMart for reliable and efficient design solutions.
