RS PRO HMI Panel 4.3 in TFT LCD Display 480 x 272 Pixel 221-3481

Free Delivery in India | Lowest Global Shipping Charges

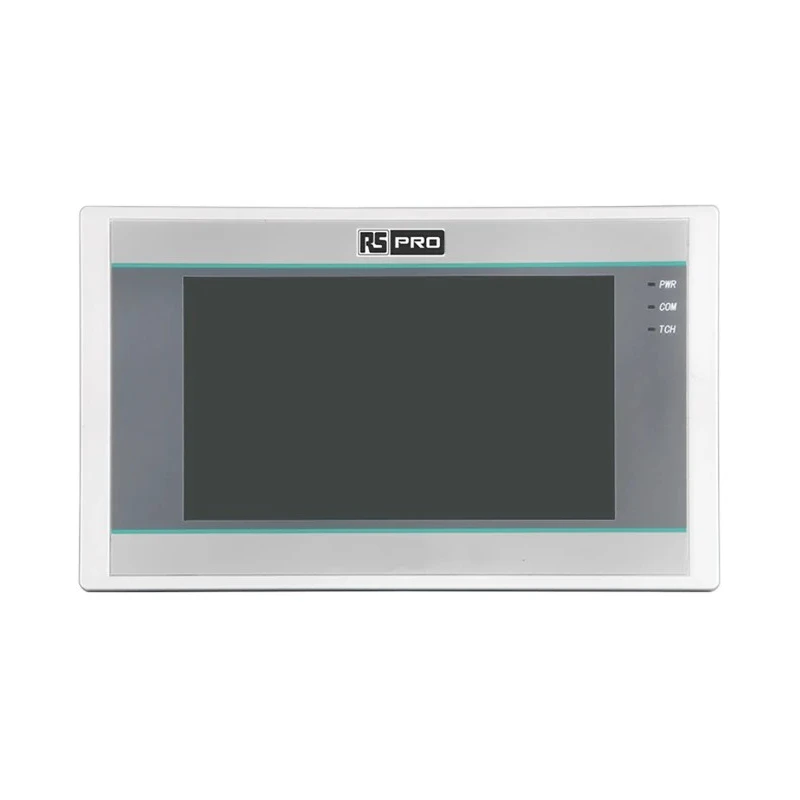

RS PRO HMI Panel 4.3 in TFT LCD Display 480 x 272 Pixel 221-3481

Name: RS PRO HMI Panel 4.3 in TFT LCD Display 480 x 272 Pixel 221-3481
Brand: RS PRO
SKU: 338582
Price: 397.37 USD
Availability: InStock



Category HMI Panel Brand RS PRO Condition New

Specifications

Country of Origin	China
Resolution	480 X 272 pixels
Display Type	TFT LCD
Display	Colour
Brand	RS PRO
Operating Temperature	-20 °C to 60 °C
Interface	RS232, RS422 / RS485 (2 in 1)
Length	142mm
Model	221-3481
Depth	30.3mm
IP Rating	IP65
Width	142mm
Series	RS PRO
Number Of Ports	2
Display Resolution	480 x 272 pixel
Maximum Operating Temperature	50°C
Port Type	USB
Minimum Operating Temperature	0°C
Interfaces	Ethernet Extension
Hardware	Cortex A35 1.2GHz, 128M FLASH+ DDRII 64MB
Standards/Approvals	CE, RoHS
Diagonal Display Size	4.3in
RS PRO Touch Screen HMI - 3.5 in, TFT LCD Display, 320 x 240 pixelBrand	RS PRO

Key Features

Equipped with a high precision four-wire resistive touch screen.
Features a Cortex A35 1.2 GHz processor with 128 MB FLASH and 64 MB DDRII RAM.

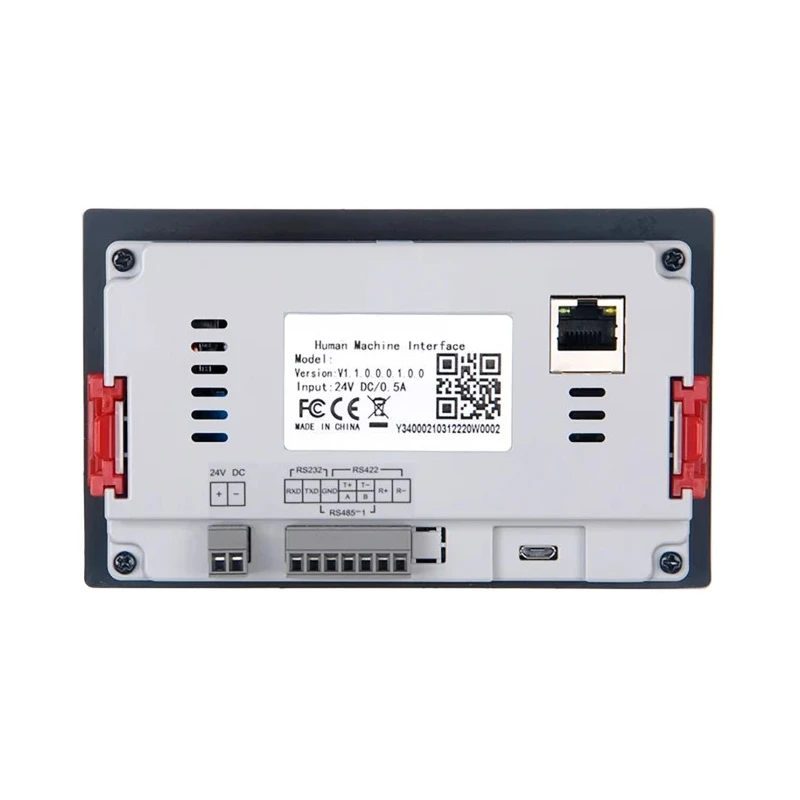

Provides two USB ports for versatile connectivity and RS232, RS422/RS485 interface support.
Durable IP65 rated enclosure suitable for industrial and commercial environments.
Supports backlighting and Ethernet extension for enhanced communication stability.
Operating temperature range from -20 °C to 60 °C for reliable performance.
Compact dimensions with 142 mm length, 142 mm width, and 30.3 mm depth.
Complies with CE and RoHS standards for quality assurance.

Product Description

RS PRO 221-3481 is a high-performance 4.3 inch HMI Panel featuring a full-color TFT LCD display with a resolution of 480 x 272 pixels. Designed for precise machine monitoring and operational visualization, this panel integrates a responsive resistive touch screen for ease of use in industrial applications.

Powered by a Cortex A35 1.2 GHz processor and equipped with 128 MB FLASH memory plus 64 MB DDRII RAM, this HMI supports fast and efficient data processing. It includes two USB ports and communication interfaces RS232, RS422, and RS485, facilitating flexible connectivity solutions and Ethernet extension for enhanced network communications.

The panel is enclosed in a robust IP65 rated casing, ensuring protection against dust and water ingress, making it suitable for harsh industrial and commercial environments. It operates reliably over a wide temperature range from -20 °C to 60 °C, accommodating various operational conditions.

Additional features include backlighting for clear visibility and compliance with key international standards such as CE and RoHS. This unit is ideal for process control systems, information solutions, and air-traffic control monitoring tasks.

High precision four-wire resistive touch-screen interface. Cortex A35 1.2 GHz processor with ample memory for complex applications. Multiple interface options including USB, RS232, RS422, RS485, and Ethernet extension. Durable IP65 rated housing for industrial use.

Wide operating temperature range of -20 °C to 60 °C. Compact and space-saving design with dimensions of 142x142x30.3 mm. Certified to CE and RoHS standards ensuring reliable performance and safety.

This RS PRO HMI Panel fits into industrial automation systems requiring robust, high precision control interfaces. It is especially useful in manufacturing, process control, and automation applications where visual operational management is crucial.

Explore EnvMart’s extensive catalog for other industrial control panels and automation components to complement your application needs.
