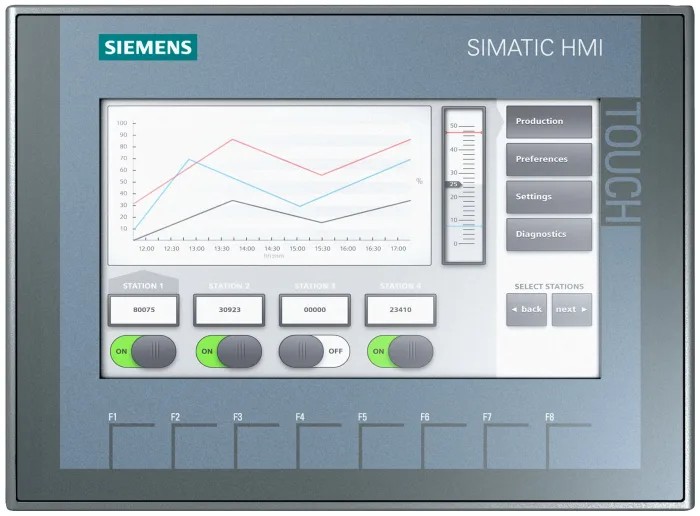

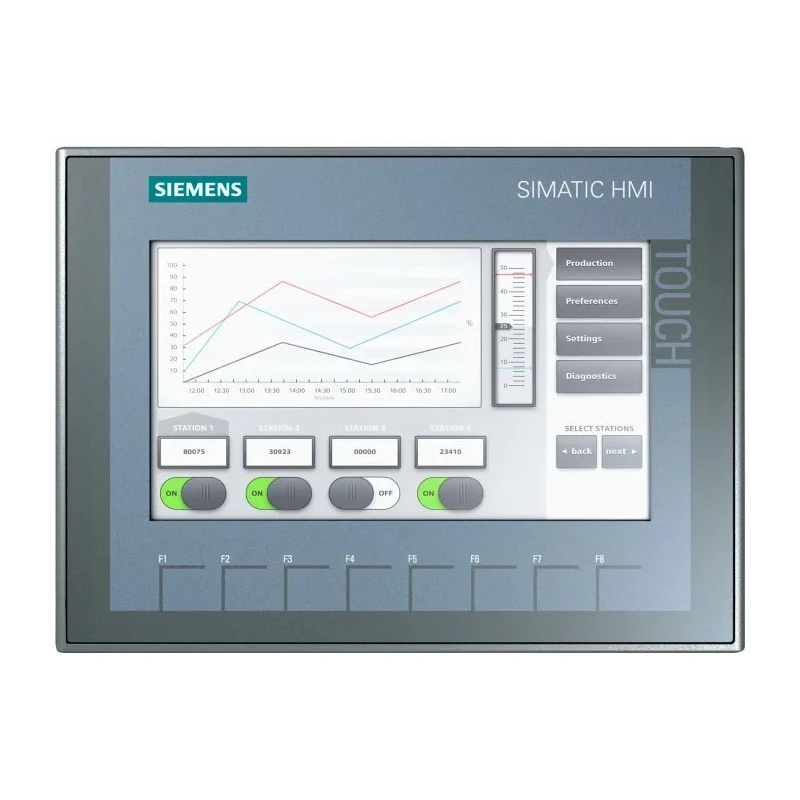

Siemens KTP700 Basic SIMATIC Series HMI Panel 177.8 mm 7-Inch TFT Display 800 x 480 Pixel

Siemens KTP700 Basic SIMATIC Series HMI Panel model 6AV2123-2GA03-0AX0 provides a reliable human-machine interface solution in industrial automation. Equipped with a 7-inch (177.8 mm) TFT display offering 800 x 480 pixels resolution, this panel delivers crisp and clear visualization tailored for complex automation processes.

The panel supports multitasking with 10MB onboard writable memory and features 8 programmable function keys, which enable operators to customize inputs according to specific application needs. Connectivity is ensured by 3 ports compatible with RS485, RS422 serial protocols, and USB, facilitating integration with legacy and modern control systems.

The robust design is engineered for industrial conditions with an IP65 protection rating, safeguarding against dust ingress and low-pressure water jets, making it reliable for demanding manufacturing and automation environments. It operates effectively within a temperature range of 0°C to 50°C.

Certified for compliance with global safety and performance standards including RCM, cULus, CE, and KC, and also approved for use in hazardous areas under ATEX and IECEx regulations, the device meets industry requirements for safety and durability.

The panel comes pre-installed with an open-source operating system, allowing easy deployment without licensing fees. Its dimensions are 214mm length, 158mm width, and 39mm depth, supporting versatile mounting options in control cabinets and panels.

The device includes 3 communication ports supporting RS485, RS422, and USB interfaces for versatile connectivity. It offers 10MB onboard memory for efficient program execution and supports 8 programmable function keys for customized operation.

Built-in programs include a real-time clock and messaging system enhancing operational convenience. The panel has an IP65 rating ensuring protection against dust and water, suitable for harsh environments. Operating temperature ranges from 0°C to 50°C to accommodate various industrial conditions.

Complies with approvals including RCM, cULus, CE, and KC certifications, and hazardous area standards ATEX and IECEx. The operating system is open-source and license-free, simplifying software management. Its compact dimensions measure 214mm length, 158mm width, and 39mm depth for flexible installation.

This Siemens KTP700 HMI Panel is ideal for applications in industrial automation, manufacturing process monitoring, HVAC control systems, and any scenario requiring reliable human-machine interfacing with comprehensive connectivity and durable design. Equip your control system with this panel offering seamless operation and professional-grade performance. Discover more automation solutions and Siemens products in the EnvMart catalog.
