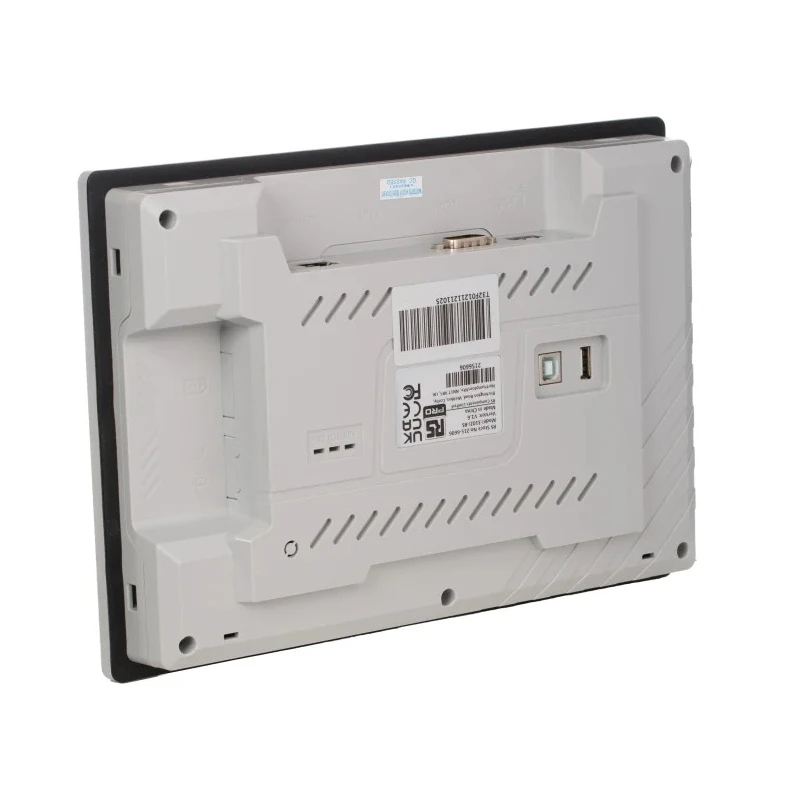

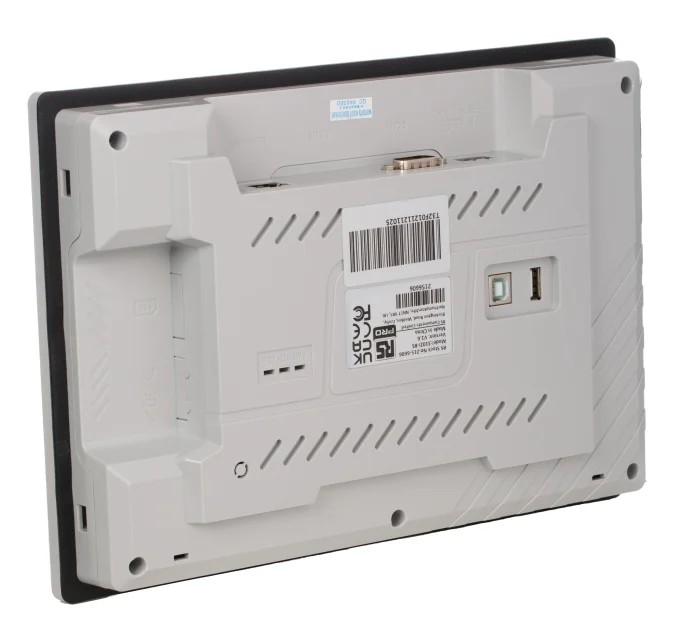

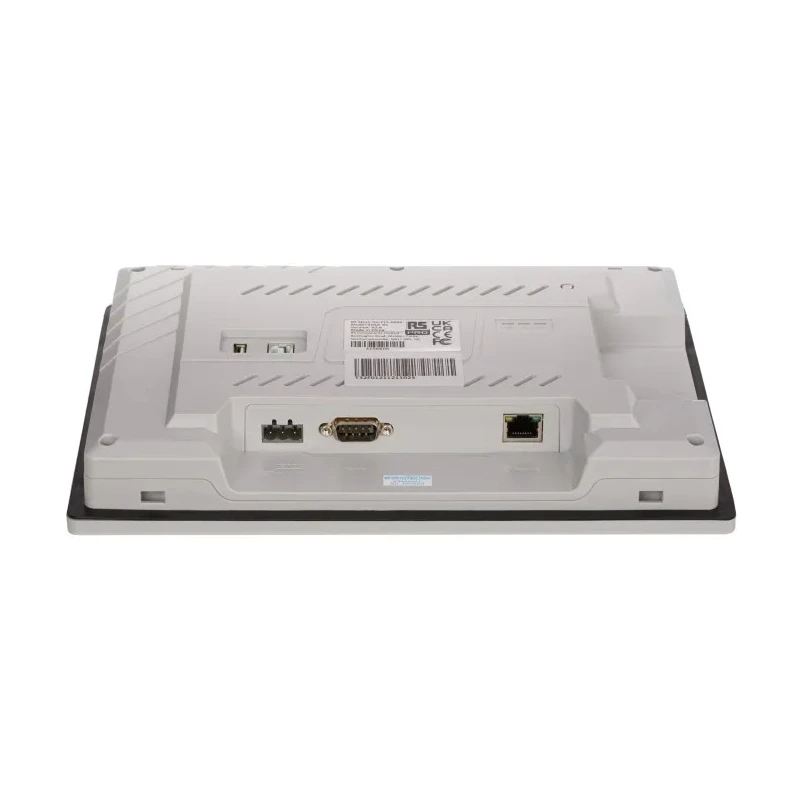

RS PRO HMI Panel 259.08 mm TFT LCD Display 1024 x 600 Pixel 3 Ports Ethernet RS232 RS422/485 USB 2.0 24 VDC 128MB 215-6606
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT LCD |
| Display | 7 in screen |
| Brand | RS PRO |
| Operating Temperature | -10 °C to 60 °C |
| Interface | USB/ Ethernet |
| Length | 272mm |
| Memory | 128M FLASH, 128M DDRAM |
| Model | 215-6606 |
| Depth | 41.5mm |
| IP Rating | IP65 |
| Width | 272mm |
| Series | RS PRO |
| Number Of Ports | 3 |
| Display Resolution | 1024 x 600 pixel |
| Maximum Operating Temperature | 60°C |
| Port Type | Ethernet, RS232, RS422/485, COM, USB 2.0 |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS, CE |
| RS stock no | 215-6604 |
| Onboard Memory | 128MB |
| Diagonal Display Size | 259.08mm |
| 7 in. colour display | 201 x 147 x 39 mm |
| 10 in. colour display | 272 x 192 x 41.5 mm |
Key Features
- Equipped with three ports supporting Ethernet, RS232, RS422/485, COM, and USB 2.0 interfaces.
- Powered by a 24 VDC supply voltage ensuring stable operation.
- Includes 128MB onboard memory for efficient data processing and storage.
- Wide operating temperature range from -10°C to 60°C with IP65 protection rating for durability.
- Robust design suitable for industrial and commercial applications requiring reliable human-machine interface.
- Features a Cortex A7 processor for fast and efficient touchscreen performance.
- Backlighting enabled for clear visibility under various lighting conditions.
- Complies with RoHS and CE standards ensuring quality and safety.
Product Description

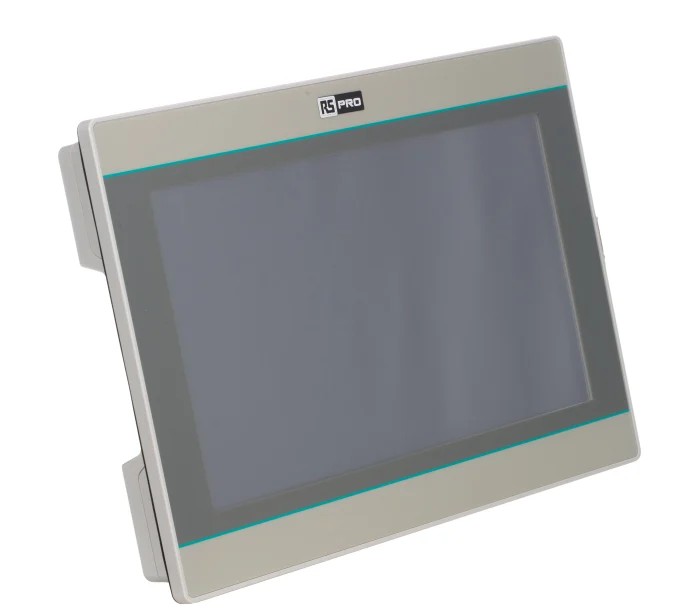

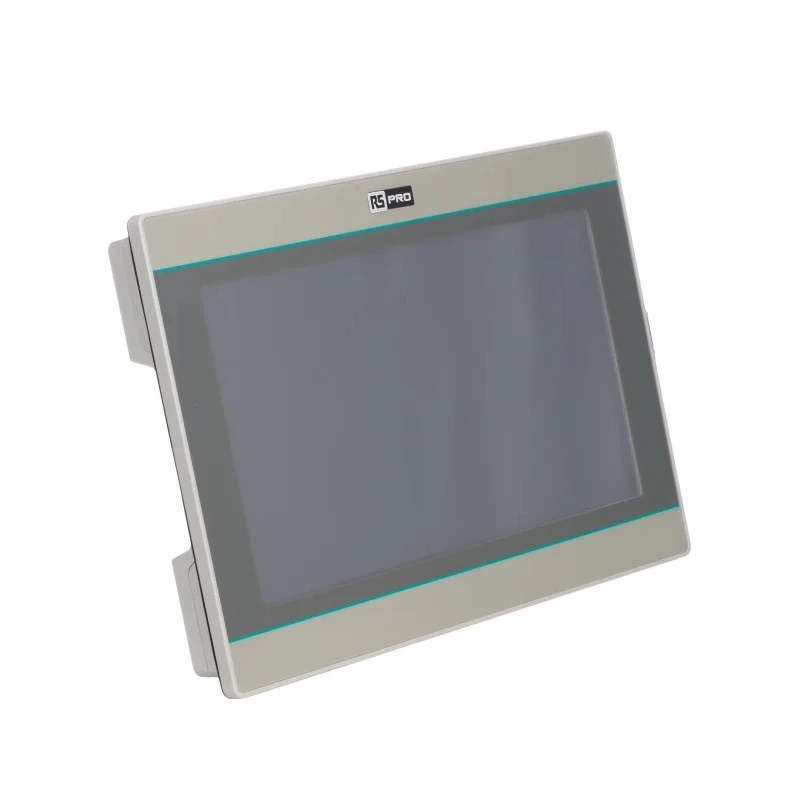

RS PRO 215-6606 HMI Panel is a high-quality touchscreen human-machine interface designed for industrial automation systems requiring reliable control and monitoring. Featuring a 259.08 mm (10.2 inch) TFT LCD colour display with a resolution of 1024 x 600 pixels, it provides sharp and clear graphical visualization of machine operations and processes.

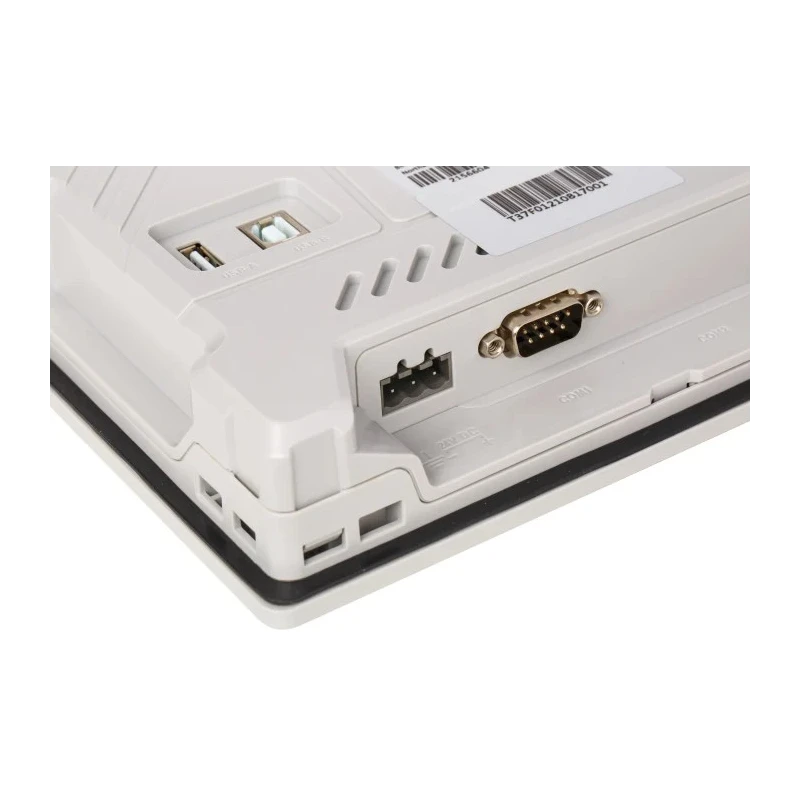

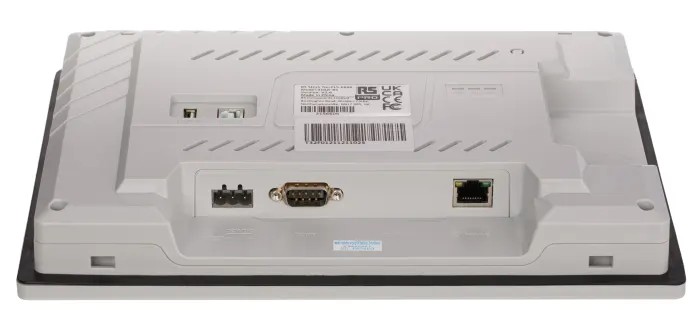

This HMI panel interfaces via USB and Ethernet ports and is equipped with three communication ports supporting Ethernet, RS232, RS422/485, COM, and USB 2.0 standards, ensuring versatile connectivity to PLCs, RTUs, and other control devices.
The unit operates on a 24 VDC power supply and features an onboard memory of 128 MB FLASH and 128 MB DDRAM to support quick boot times and stable software execution. Its processing power is driven by a Cortex A7 CPU, offering fast screen updates, smooth touch response, and enhanced communication stability.
Rated IP65 for ingress protection, it withstands dust and water exposure, making it suitable for tough industrial and commercial environments. Operating temperature ranges from -10 °C to 60 °C provide reliability under various conditions.
Backlit TFT LCD screen with TFT technology allows for vibrant colour display and excellent visibility. The compact dimensions of 272 x 192 x 41.5 mm enable easy panel mounting or stand-alone use.
Equipped with multiple communication ports for flexible system integration. Enhanced waterproofing and cooling for longer service life. Fast boot time with secure software features suitable for industrial automation. Compliant with RoHS and CE standards for environmental and safety regulations.
Suitable for process control, information solutions, and air-traffic control applications.
This product is made in China and is ideal for users in industrial automation, manufacturing, HVAC control, and commercial process management systems. RS PRO products offer durable and high-performance solutions for human-machine interfaces, ensuring efficient and intuitive operation.
Explore more RS PRO HMI Panels and industrial automation components on EnvMart to meet diverse application needs.
