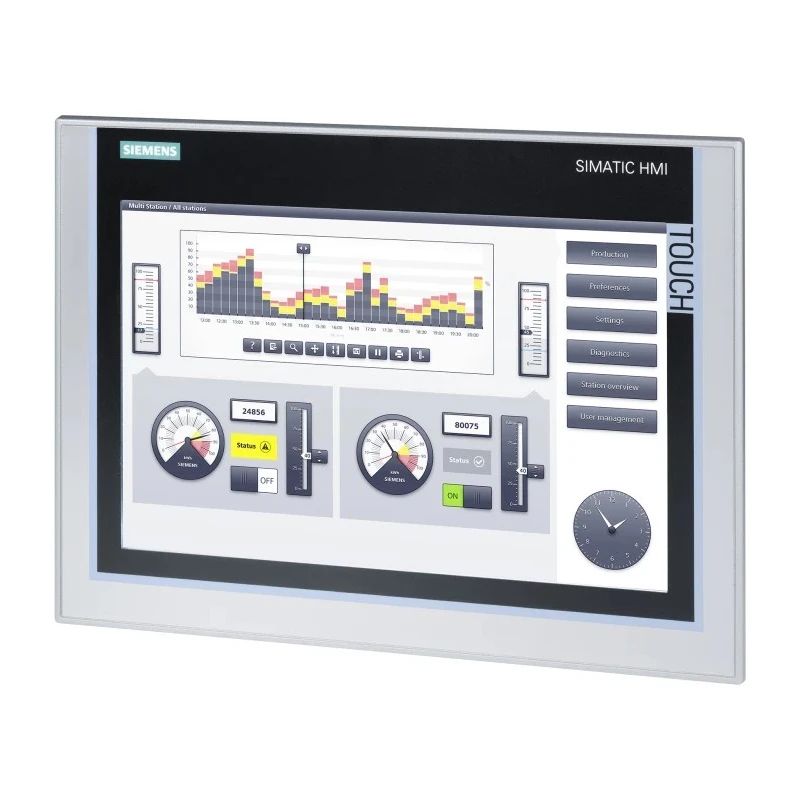

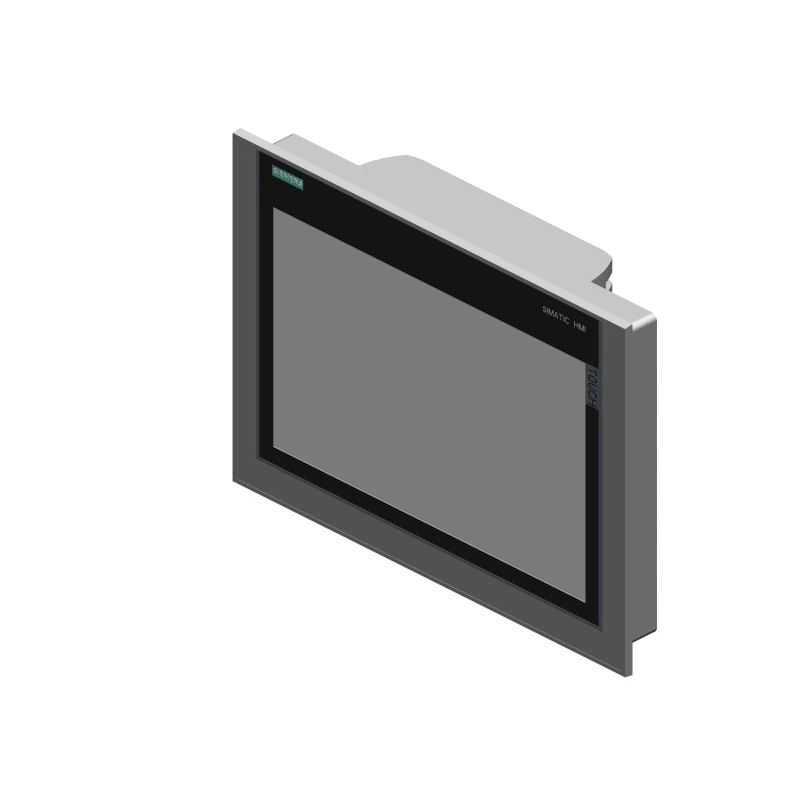

Siemens SIMATIC TP1200 Comfort Series HMI Panel 12.1 in TFT Display 1280 x 800 pixel
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | TFT |
| Brand | Siemens |
| Length | 241mm |
| Model | TP1200 |
| Depth | 70.5mm |
| IP Rating | IP65, IP20 |
| Width | 330mm |
| Series | SIMATIC, TP1200 Comfort |
| Number Of Ports | 4 |
| Display Resolution | 1280 x 800 pixel |
| Maximum Operating Temperature | 50°C |
| Port Type | USB |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet connection status |
| Hazardous Area Certification | IECEx/ATEX |
| Standards/Approvals | CE, cULus, RCM, KC |
| Onboard Memory | 12MB |
| Diagonal Display Size | 12.1in |
Key Features
- The panel features a 12MB onboard memory to manage process data effectively.
- It supports multiple ports including USB 2.0 and combined RS 422/485 port for versatile connectivity.
- Wide operating temperature range from 0°C to 50°C ensures reliable performance in varied environments.
- IP65 rated touchscreen provides protection against high-pressure jets suitable for industrial use.
- Mountable in both horizontal and vertical orientations for flexible installation.
- Supports 32 language settings to accommodate diverse workforces.
- Equipped with PROFIenergy to automatically shut down during idle periods to save energy.
- LED indicator for easy monitoring of Ethernet connection status.
Product Description
Siemens TP1200 Comfort Series HMI Panel 6AV2124-0MC01-0AX0 delivers advanced industrial control with a 12.1 inch color TFT touchscreen display. Featuring a high pixel resolution of 1280 x 800, it provides sharp and detailed visualization critical for industrial automation systems. The panel incorporates 12MB of onboard memory enabling efficient process data handling and application execution.
This HMI panel comes with four USB ports and combined RS 422/485 for flexible interfacing options with industrial machinery and control systems. Designed for durability, it features an IP65 rated screen protecting it from high-pressure water jets, making it suitable for harsh industrial environments.
Operating reliably within a temperature range of 0°C to 50°C, this panel is adaptable to diverse industrial and manufacturing conditions. The PROFIenergy function enhances energy efficiency by powering down the device automatically when idle. Installation is flexible, supporting both horizontal and vertical mounting orientations.
Additional features include an integrated alphanumeric onscreen keyboard that facilitates convenient operation adjustments and multilingual support with 32 languages. The panel holds certifications including CE, cULus, RCM, KC, as well as hazardous area certification IECEx/ATEX, demonstrating suitability for demanding industrial and automation applications.
The panel offers flexible connectivity with multiple USB and serial ports. Its IP65 rating ensures protection against water jets and dust ingress. Wide temperature tolerance from 0 to 50 degrees Celsius supports operational stability.
Energy-saving features like PROFIenergy reduce power consumption during idle times. Multilingual support enhances usability across global sites. Compact dimensions with 330 mm width, 241 mm length, and 70.5 mm depth allow versatile mounting.
LED ethernet indicator simplifies network status monitoring. Certified for industrial safety and hazardous area operations.
This Siemens SIMATIC TP1200 HMI Panel is ideal for industrial automation, manufacturing lines, process control, and environments requiring robust and user-friendly operator interfaces. Its high reliability and extensive certification fit applications in traffic control, food processing, and other critical industrial sectors.
Explore the extensive range of Siemens automation products and compatible accessories at EnvMart for your industrial system enhancements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display resolution of this model is 1280 x 800 pixels, providing sharp and detailed visuals for industrial applications.
This unit has dimensions of 330 mm in width, 241 mm in length, and 70.5 mm in depth, allowing for versatile installation options.
The operating temperature range for this panel is from 0°C to 50°C, ensuring reliable performance in various industrial environments.
It features four USB ports, providing flexible connectivity options for interfacing with industrial machinery and control systems.
This model is equipped with 12MB of onboard memory, which aids in efficient process data handling and application execution.
The panel holds several certifications including CE, cULus, RCM, KC, and hazardous area certification IECEx/ATEX, making it suitable for demanding industrial applications.
It has an IP65 rating, providing protection against high-pressure water jets and making it suitable for harsh industrial environments.
Yes, this model supports both horizontal and vertical mounting orientations, allowing for flexible installation based on user needs.
This unit features a TFT display, which is known for its color accuracy and clarity in visual representation.
It includes the PROFIenergy function, which automatically powers down the device during idle periods to save energy.
This model supports 32 language settings, accommodating diverse workforces in various industrial settings.
The panel is certified under IECEx/ATEX standards, indicating its suitability for use in hazardous areas.
