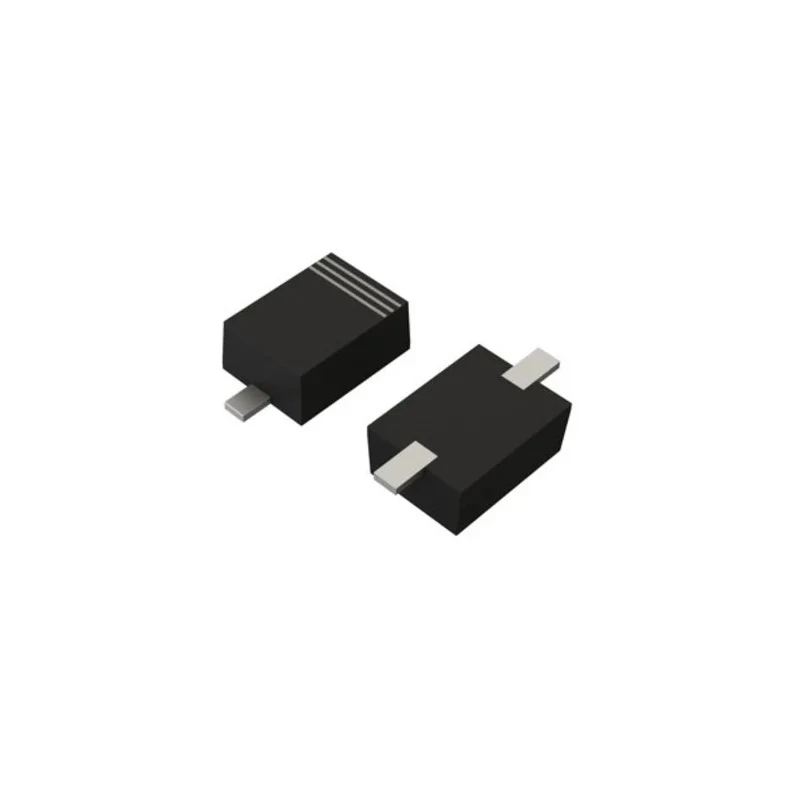

ROHM 1 Element 2.9 V Zener Diode Isolated 200 mW Surface Mount SOD-323F UDZVFHTE-172.7B

ROHM UDZVFHTE-172.7B Zener Diode is a high reliability isolated voltage regulator diode designed for surface mount applications. With a nominal voltage of 2.9 V and maximum power dissipation of 200 mW, it is ideal for voltage regulation tasks in industrial electronic circuits. The device is packaged in a compact SOD-323F surface mount package, making it suitable for space-constrained PCB layouts.

This diode features a silicon epitaxial planar structure, providing consistent electrical performance and durability over its operating temperature range of -55°C to 150°C. Its low maximum reverse leakage current of 100 μA ensures minimal parasitic loss, improving overall circuit efficiency.

Compliant with AEC-Q101 automotive standards and RoHS, this diode meets rigorous quality and environmental criteria, suitable for automotive and industrial applications. The product series UDZVFH from ROHM emphasizes reliability and precision in voltage regulation.

Key technical parameters include a test current of 10 mA, a package designed with 2 pins for straightforward integration, length of 2.7 mm, and a height of 0.9 mm. Its compact dimensions and surface mount configuration support modern automated assembly lines.

Nominal Zener voltage of 2.9 V for precise voltage regulation. Maximum power dissipation of 200 mW for efficient operation in low power applications. Surface mount package SOD-323F for compact PCB design. Wide temperature range from -55°C to +150°C ensures durability under harsh environmental conditions.

Low reverse leakage current of 100 μA enhances circuit efficiency. Standard conformity including AEC-Q101 and RoHS for automotive and environmental compliance. Robust silicon epitaxial planar structure construction provides excellent reliability.

Pin count of 2 for easy circuit assembly. Dimensions: length 2.7 mm and height 0.9 mm for space saving in assemblies.

This product is suitable for use in electronic component manufacturing, automotive electronics, power management circuits, and voltage regulation in industrial and commercial electronic systems. It supports industrial and automotive applications requiring precise and stable voltage regulation with compact form factor.
