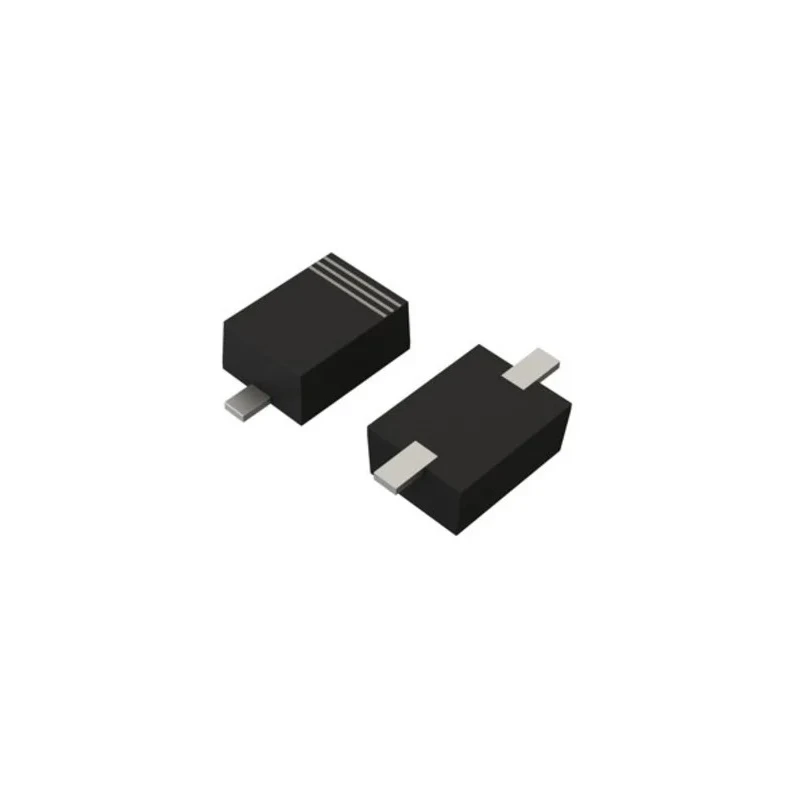

ROHM 5.7 V Zener Diode, Isolated 200 mW Surface Mount 2-Pin SOD-323FL UDZVFHTE-175.6B

Free Delivery in India | Lowest Global Shipping Charges

ROHM 5.7 V Zener Diode, Isolated 200 mW Surface Mount 2-Pin SOD-323FL UDZVFHTE-175.6B

Name: ROHM 5.7 V Zener Diode, Isolated 200 mW Surface Mount 2-Pin SOD-323FL UDZVFHTE-175.6B
Brand: ROHM
SKU: 412384
Price: 20.22 USD
Availability: InStock



Category Zener Diode Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.9mm
Length	2.7mm
Model	UDZVFHTE-175.6B
Mount Type	Surface
Series	UDZVFH
Maximum Operating Temperature	150°C
Package Type	SOD-323FL
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Diode Configuration	Isolated
Test Current It	5mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	5.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	200Ω

Key Features

Isolated diode configuration ensures stable voltage regulation.
Features a compact 2-pin SOD-323FL package ideal for surface mounting.
Maximum power dissipation is 200 mW for efficient thermal handling.
Test current rating is 5 mA for accurate voltage regulation.
Maximum operating temperature up to 150°C supports high reliability in harsh environments.
Low maximum reverse leakage current of 1 µA reduces power loss.
Nominal Zener voltage is precisely 5.7 V for voltage stabilization applications.
Complies with automotive standard AEC-Q101 for automotive-grade quality.

Product Description

ROHM UDZVFHTE-175.6B is a high-reliability Zener diode with a nominal Zener voltage of 5.7 V and maximum power dissipation of 200 mW. It features an isolated diode configuration suitable for voltage regulation in sensitive electronic circuits.

The diode is housed in a small SOD-323FL surface mount package with two pins, making it suitable for compact PCB layouts. It is constructed using a silicon epitaxial planar structure and a small mold type, which enhances its performance and reliability.

Designed primarily for voltage regulation applications, this Zener diode operates at a test current of 5 mA and withstands maximum operating temperatures up to 150°C, ensuring functionality under demanding conditions.

The maximum reverse leakage current is limited to 1 µA, minimizing leakage losses in circuits. Additionally, the maximum Zener impedance of 200 Ω supports stable voltage regulation with minimal variation.

This diode complies with the automotive standard AEC-Q101, making it suitable for use in automotive and industrial applications requiring robust semiconductor components. With exact length and height dimensions of 2.7 mm and 0.9 mm respectively, the diode allows for efficient space utilization on circuit boards.

Isolated diode configuration for voltage regulation. Compact 2-pin SOD-323FL surface mount package. 200 mW maximum power dissipation. Test current of 5 mA ensures precise regulation. Supports maximum operating temperature of 150°C.

Low reverse leakage current of 1 µA reduces power loss. Nominal Zener voltage of 5.7 V for stabilization. Meets automotive AEC-Q101 standard. Small form factor dimensions 2.7 mm x 0.9 mm. This ROHM Zener diode is ideal for use in industrial, automotive, and electronic manufacturing applications where compact, reliable voltage regulation is required.
