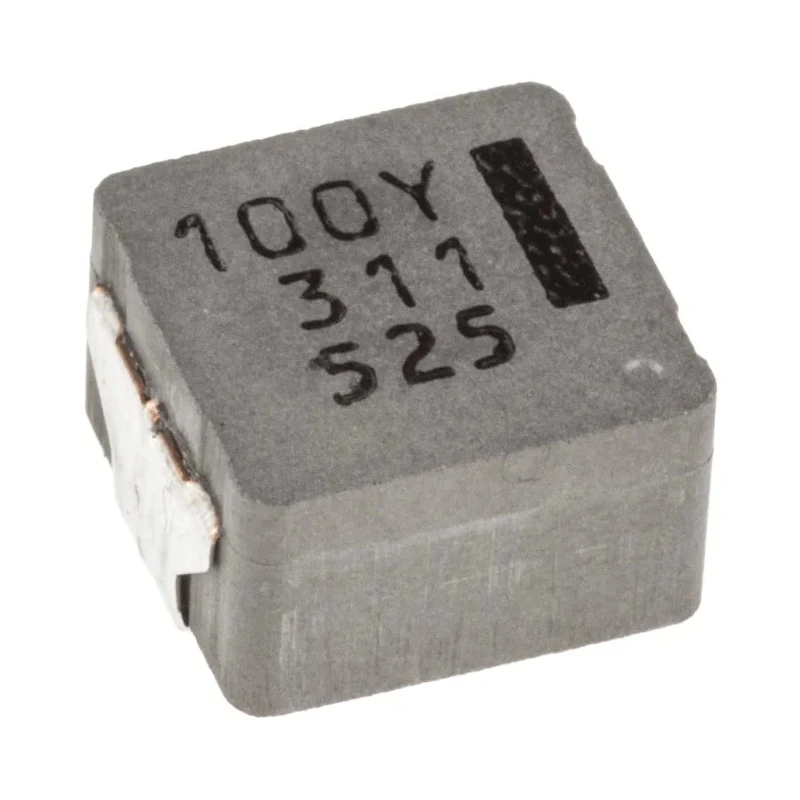

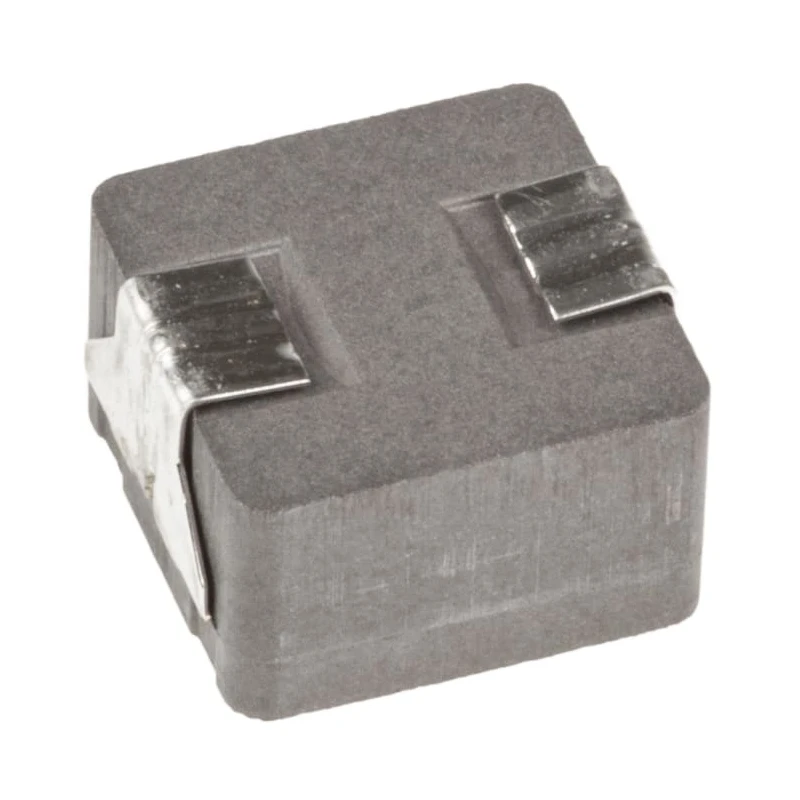

Panasonic 0854 Shielded Wirewound Surface Mount Inductor with Metal Composite Core 10μH ±20% 6.7A Idc ETQP5M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Packaging | Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0854 |
| Maximum DC Current | 6.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 37mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core ensuring magnetic shielding.
- Designed to operate at temperatures ranging from -40°C to 150°C.
- Features low winding resistance of 37mΩ for efficiency.
- Compliant with automotive standard AEC-Q200 for high reliability.
- Packaged in 0854 case style and supplied on reels for ease of mounting.
- Has a maximum self-resonant frequency of 100kHz suitable for noise filters.
- Wirewound construction offering high vibration resistance and low buzzing noise.
- Suitable for automotive and industrial DC-DC converter applications.
Product Description
Panasonic ETQP5M 0854 Shielded Wirewound Surface Mount Inductor features a metal composite core providing effective magnetic shielding and ensuring stable inductance of 10μH with ±20% tolerance. The inductor supports a maximum DC current of 6.7A, making it suitable for high peak current applications. It is designed to operate reliably within a wide temperature range from -40°C to 150°C, meeting demanding automotive standards including AEC-Q200 qualification.
The inductor comes in an 0854 case style with a compact length of 8.5mm, height of 5.4mm, and depth of 8mm. Its construction features wirewound technology with low DC resistance of 37mΩ and low eddy-current loss due to the metal composite core, resulting in low buzzing noise and improved efficiency. The device is moulded and supplied on reels to facilitate automated PCB assembly processes. With a maximum self-resonant frequency of 100kHz, it is optimized for noise filtering and power regulation circuits in automotive, industrial, and commercial electronics.
This Panasonic ETQP5M series inductor is ideal for applications such as DC-DC converters and drive circuit noise filters requiring high current handling, stability, and resistance to vibration. Its robust metal composite core construction ensures durability and performance in harsh operating conditions, making it well suited for automotive environment demands.
Constructed with metal composite core providing high stability and shielding. Supports maximum DC current of 6.7A for high power applications. Wide temperature operating range: -40°C to 150°C. AEQ-Q200 compliant for automotive reliability.
Low DC resistance of 37mΩ reduces power loss. Compact 0854 package suitable for surface mounting. Wirewound design provides low noise and high vibration resistance. Maximum self-resonant frequency of 100kHz for effective noise filtering.
Explore our range of Surface Mount Inductors for advanced electronic component solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10μH with a tolerance of ±20%.
It supports a maximum DC current of 6.7A, making it suitable for high peak current applications.
This unit operates reliably within a temperature range of -40°C to 150°C.
It features a metal composite core that provides effective magnetic shielding and stability.
The maximum self-resonant frequency is 100kHz, suitable for noise filtering applications.
The inductor has a low DC resistance of 37mΩ, which helps reduce power loss.
The dimensions are 8.5mm in length, 5.4mm in height, and 8mm in depth.
It is constructed using wirewound technology, which offers high vibration resistance and low buzzing noise.
Yes, it is compliant with the automotive standard AEC-Q200 for high reliability in automotive applications.
It is supplied on reels, facilitating ease of automated PCB assembly processes.
It is suitable for automotive and industrial DC-DC converter applications, as well as drive circuit noise filters.
This model is RoHS compliant, ensuring it meets environmental regulations.
