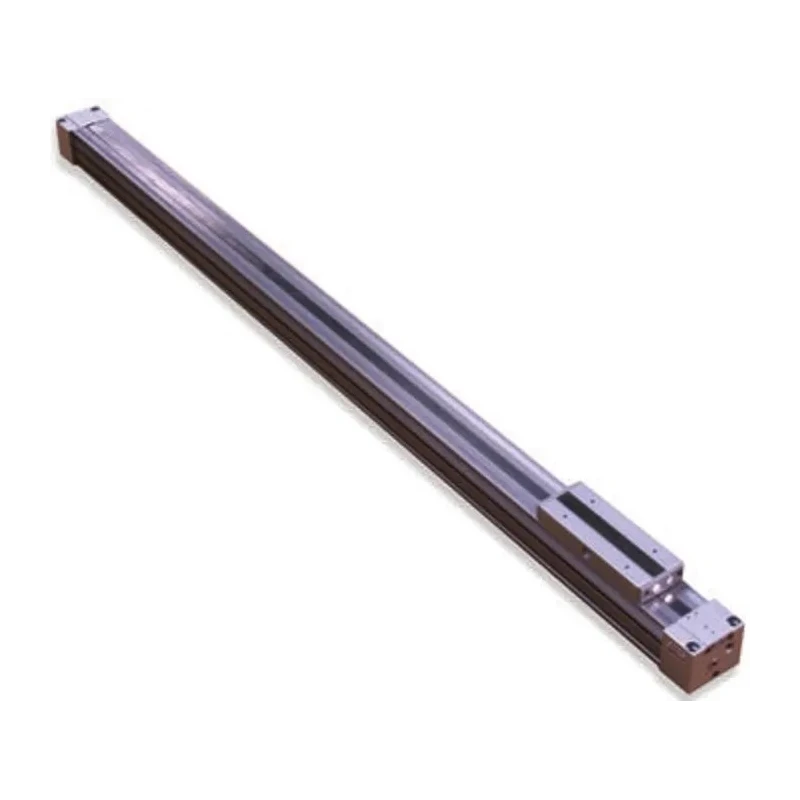

SMC Double Acting Rodless Actuator 16mm Bore 250 mm MY1B16G-250

Free Delivery in India | Lowest Global Shipping Charges

SMC Double Acting Rodless Actuator 16mm Bore 250 mm MY1B16G-250



Category Pneumatic Cylinders & Actuators Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	0.8 Mpa
Height	37mm
Length	410mm
Model	MY1B16G-250
Gross Weight	610g
Width	37mm
Series	MY1
Maximum Operating Temperature	60°C
Mounting Orientation	Horizontal
Minimum Operating Temperature	5°C
Stroke Length	250mm
Bore Diameter	16mm
Action Type	Double Acting
Standards/Approvals	IEC
Connection Thread Standard	Metric
Cushioning Type	Air Cushion
Guide Type	Basic
Port Gender	Female
Port Thread Size	M5 x 0.8

Key Features

Constructed with hard anodized aluminium alloy body ensuring durability.
Features double acting action type with magnetic piston for efficient operation.
Operates at maximum pressure of 0.8 Mpa with air cushion type cushioning.
Designed for horizontal mounting orientation and basic guide type.
Operates in temperature range from 5°C to 60°C.
Common port location with female M5 x 0.8 port thread size for easy connectivity.
Complies with IEC standards for reliability and safety.
Includes adjustable shock absorber and modular accessories compatibility.

Product Description

SMC MY1B16G-250 is a precise double acting rodless actuator featuring a 16mm bore diameter and 250 mm stroke length, engineered for pneumatic industrial applications requiring accurate linear motion control.

This actuator has a corrosion-resistant hard anodized aluminium alloy body that combines strength with lightweight properties, ensuring long service life and ease of installation. The double acting action type includes a magnetic piston which provides reliable sensing and operation, suitable for space-saving installation requirements.

Operating conditions include a maximum working pressure of 0.8 Mpa, with an air cushion cushioning mechanism that reduces impact and vibration, enhancing durability.

The unit is designed for horizontal mounting orientation and utilizes a basic guide type, with a common port location and female M5 x 0.8 threaded ports facilitating straightforward integration into pneumatic systems.

It maintains performance within a temperature range from 5°C minimum up to 60°C maximum, meeting various environmental conditions.

Dimensionally compact at 410mm in length, 37mm in both width and height, and a lightweight 610 grams, it is ideal for automated manufacturing, assembly lines, material handling, and laboratory pneumatic setups.

Durable hard anodized aluminium alloy body. Double acting magnetic piston for precise control. Maximum operating pressure of 0.8 Mpa. Air cushion for cushioning protection. Horizontal mounting orientation with basic guide type.

Operating temperature range 5°C to 60°C. Female port thread size of M5 x 0.8 and metric thread standards. Compact dimensions and lightweight design. IEC compliant construction ensuring quality. This product supports modular accessory attachments and includes adjustable shock absorbers for customized performance.

Ideal for industrial pneumatic cylinder and actuator needs, SMC's MY1B16G-250 model provides reliable, efficient linear actuation for construction, manufacturing, HVAC systems, laboratory automation, and fluid power applications.
